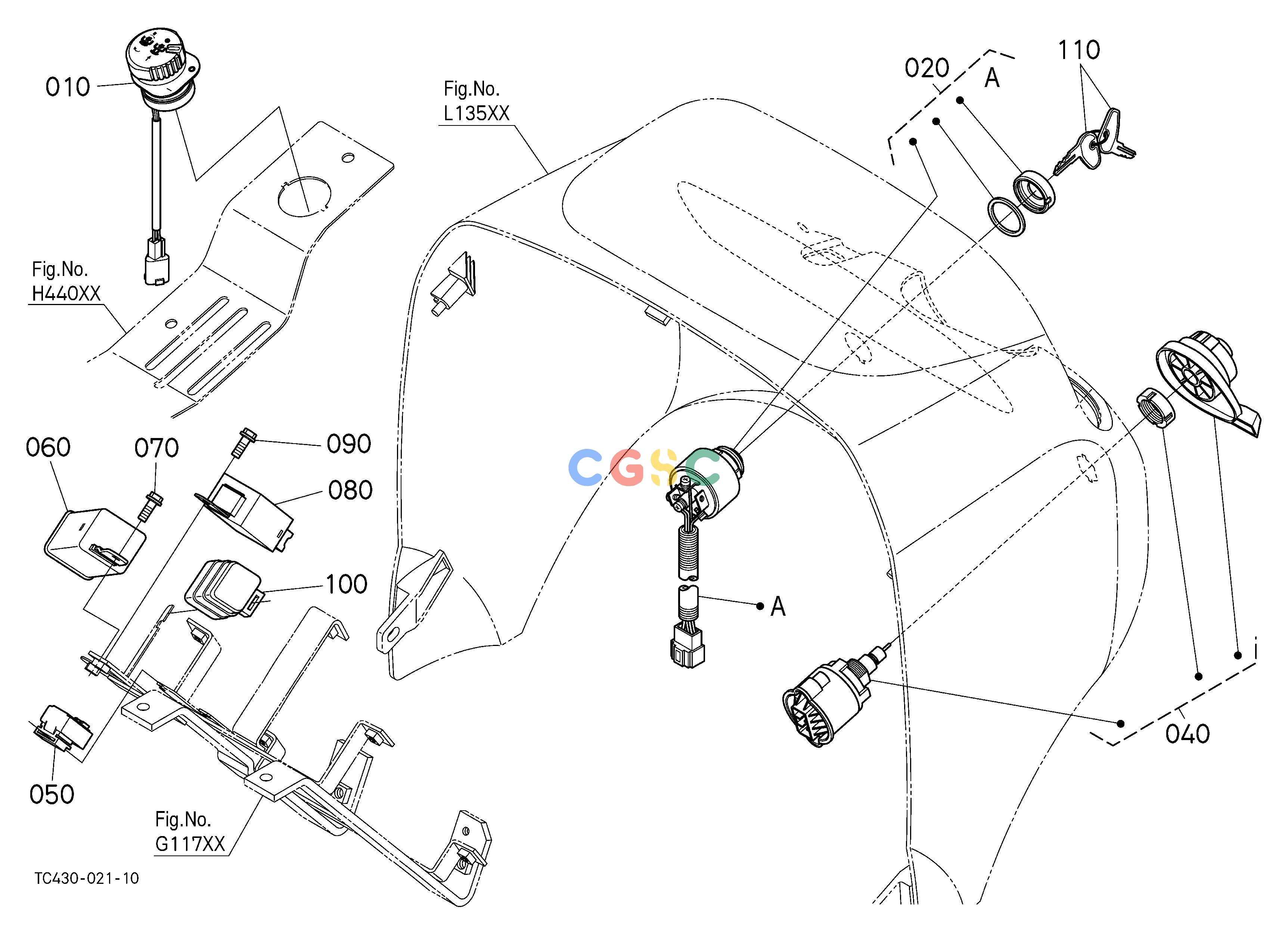

久保田零件查询B10200 SWITCH1/RELAY ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
634 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC43032810
|
[1] |
SWITCH(I-PTO)
|
0.1320(lbs); 0.060
|
| 020. |
TC02031822
|
[1] |
SWITCH,MAIN
|
0.5324(lbs); 0.242
|
| 040. |
TC43055120
|
[1] |
SWITCH(COMBINATION)
|
0.0000(lbs); 0.000
|
| 050. |
T106033720
|
[1] |
RELAY
|
0.0440(lbs); 0.020
|
| 060. |
3F24075430
|
[1] |
UNIT,FLASHER
|
0.1320(lbs); 0.060
|
| 070. |
0175450616
|
[1] |
BOLT,FLANGE
|
0.0132(lbs); 0.006
|
| 080. |
6C19055513
|
[1] |
CONTROLLER
|
0.0946(lbs); 0.043
|
| 090. |
0175450616
|
[1] |
BOLT,FLANGE
|
0.0132(lbs); 0.006
|
| 100. |
T106033710
|
[1] |
RELAY,GLOW
|
0.1430(lbs); 0.065
|
| 110. |
3526031852
|
[1] |
ASSY KEY,MAIN SWITCH
|
0.0440(lbs); 0.020
|
