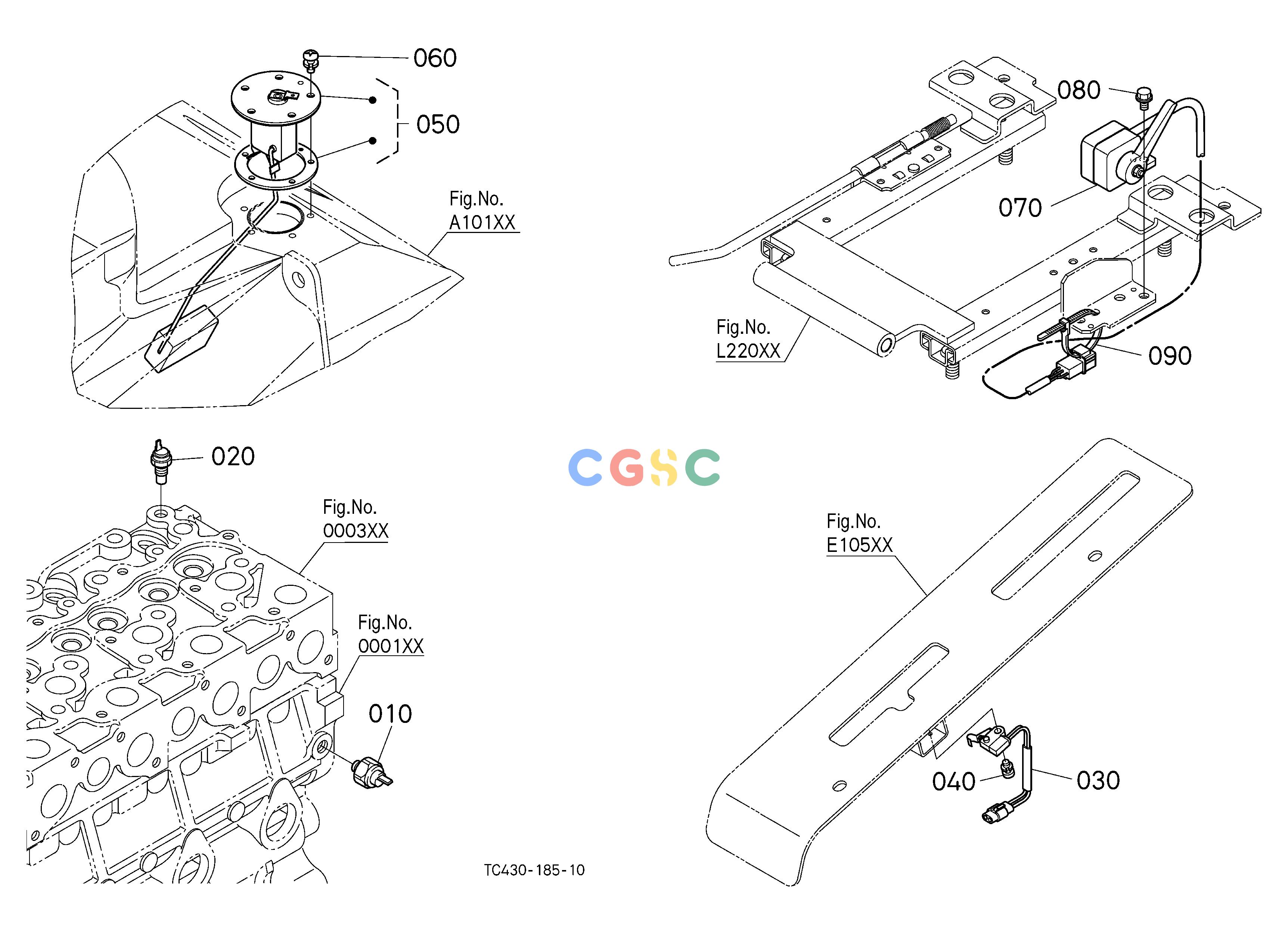

久保田零件查询B10300 SWITCH2/SENSOR ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
946 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1A02439010
|
[1] |
SWITCH(OIL)
|
0.0770(lbs); 0.035
|
| 020. |
3233032830
|
[1] |
SENSOR,WATER TEMP.
|
0.0220(lbs); 0.010
|
| 030. |
TC22043900
|
[1] |
SWITCH,LEVER
|
0.0110(lbs); 0.005
|
| 040. |
0303450312
|
[1] |
SCREW,W SEMS(PAN HEAD)
|
0.0022(lbs); 0.001
|
| 050. |
TC43231200
|
[1] |
SENSOR,FUEL GAUGE
|
0.2750(lbs); 0.125
|
| 060. |
0302450514
|
[5] |
SCREW,SEMS(PAN HEAD)
|
0.0066(lbs); 0.003
|
| 070. |
TC42047902
|
[1] |
SWITCH(SEAT)
|
0.1650(lbs); 0.075
|
| 080. |
0175450612
|
[1] |
BOLT,FLANGE
|
0.0110(lbs); 0.005
|
| 090. |
TC40268380
|
[1] |
BAND,CORD
|
0.0044(lbs); 0.002
|
