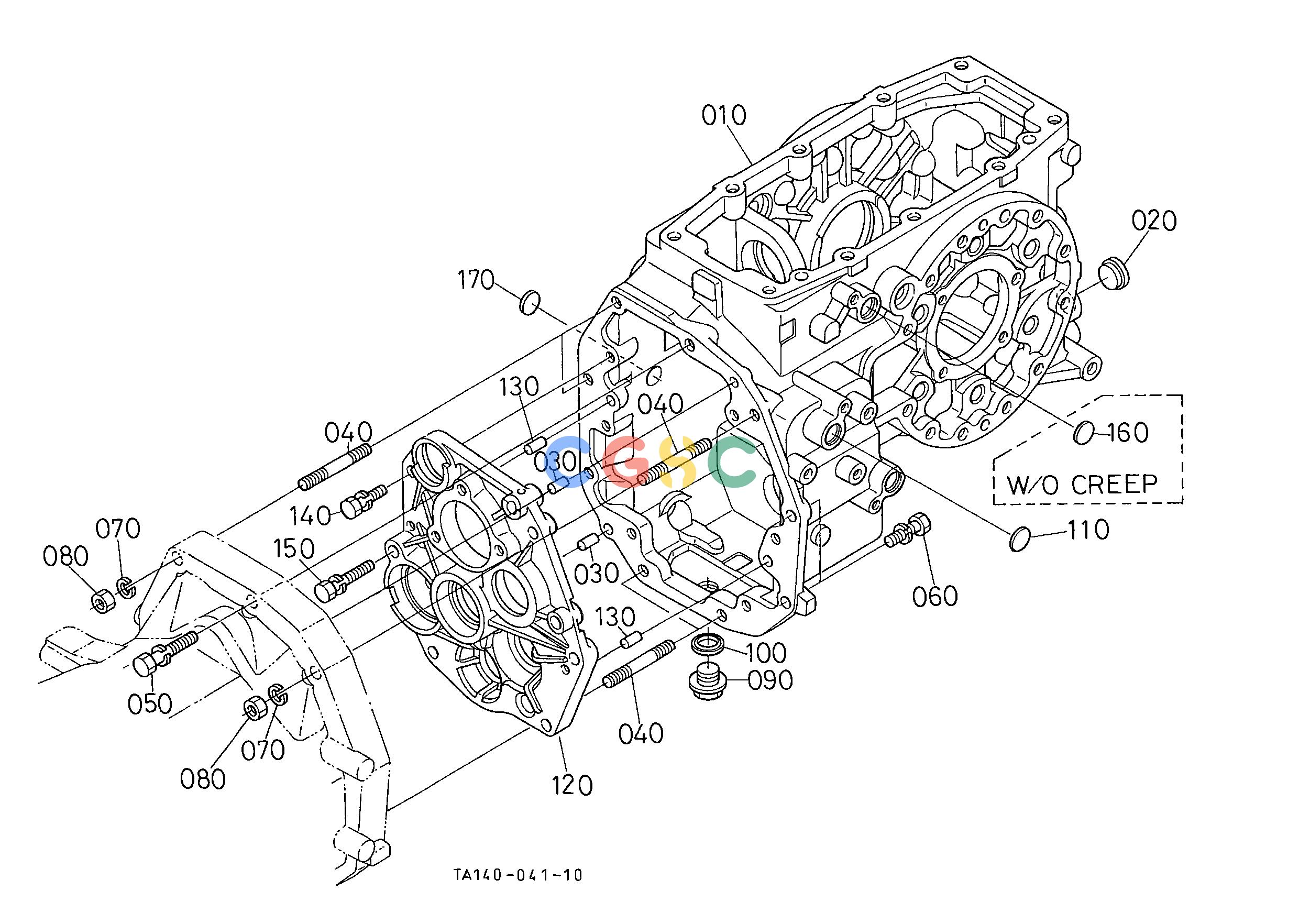

久保田零件查询C42001 TRANSMISSION CASE [GST TYPE] CLUTCH/TRANSMISSION/REAR AXLEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
980 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04020402
|
[1] |
CASE TRANSMISSION
|
90.2000(lbs); 41.000
|
| 010. |
TA04020404
|
[1] |
CASE TRANSMISSION
|
90.2000(lbs); 41.000
|
| 020. |
3130114230
|
[1] |
GAUGE OIL
|
0.0110(lbs); 0.005
|
| 030. |
0501201018
|
[2] |
PIN STRAIGHT
|
0.0264(lbs); 0.012
|
| 040. |
TA15028910
|
[6] |
STUD
|
0.1320(lbs); 0.060
|
| 050. |
0113851260
|
[1] |
BOLT
|
0.7040(lbs); 0.320
|
| 060. |
0113851235
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
| 070. |
0451260120
|
[6] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 080. |
3534027360
|
[6] |
NUT
|
0.0330(lbs); 0.015
|
| 090. |
1551296010
|
[1] |
PLUG DRAIN
|
0.2222(lbs); 0.101
|
| 100. |
0471702150
|
[1] |
WASHER WITH RUBBER
|
0.0088(lbs); 0.004
|
| 110. |
3407660470
|
[1] |
PLUG
|
0.0110(lbs); 0.005
|
| 120. |
TA04060450
|
[1] |
HOLDER BEARING
|
11.8800(lbs); 5.400
|
| 130. |
0501201018
|
[2] |
PIN STRAIGHT
|
0.0264(lbs); 0.012
|
| 140. |
0113351040
|
[5] |
BOLT
|
0.0660(lbs); 0.030
|
| 150. |
0113351060
|
[1] |
BOLT
|
0.0924(lbs); 0.042
|
| 160. |
3407660470
|
[1] |
PLUG
|
0.0110(lbs); 0.005
|
| 170. |
3407660470
|
[1] |
PLUG
|
0.0110(lbs); 0.005
|
