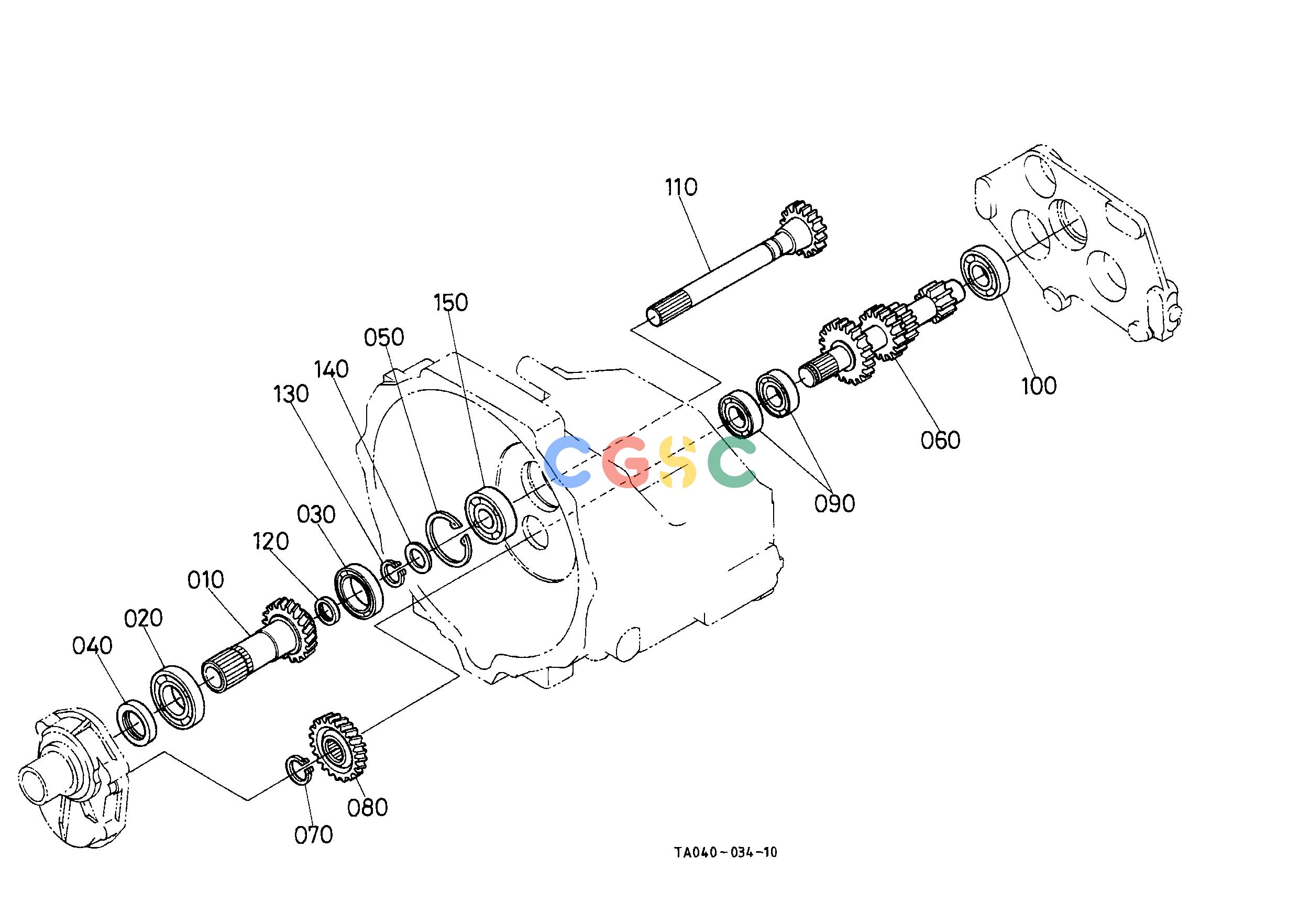

久保田零件查询D10101 MAIN SHAFT [GST TYPE] CLUTCH/TRANSMISSION/REAR AXLEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
142 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04021300
|
[1] |
GEAR-SHAFT
|
1.6500(lbs); 0.750
|
| 020. |
0810106207
|
[1] |
BEARING BALL
|
0.6160(lbs); 0.280
|
| 030. |
0810106908
|
[1] |
BEARING BALL
|
0.2420(lbs); 0.110
|
| 040. |
0950035529
|
[1] |
SEAL OIL
|
0.0374(lbs); 0.017
|
| 050. |
0461100620
|
[1] |
CIR CLIP INTERNAL
|
0.0242(lbs); 0.011
|
| 060. |
TA15022100
|
[1] |
GEAR-SHAFT MAIN
|
3.9380(lbs); 1.790
|
| 070. |
3715021550
|
[1] |
CIR CLIP EXTERNAL
|
0.1320(lbs); 0.060
|
| 080. |
TA04022110
|
[1] |
GEAR
|
0.9350(lbs); 0.425
|
| 090. |
3741057190
|
[2] |
BEARING BALL
|
0.3080(lbs); 0.140
|
| 100. |
3589041290
|
[1] |
BEARING BALL
|
0.5126(lbs); 0.233
|
| 110. |
TA04023104
|
[1] |
GEAR-SHAFT I-PTO
|
2.7060(lbs); 1.230
|
| 120. |
3673024330
|
[1] |
SEAL FIRST SHAFT
|
0.0110(lbs); 0.005
|
| 130. |
3715021550
|
[1] |
CIR CLIP EXTERNAL
|
0.1320(lbs); 0.060
|
| 140. |
3415021560
|
[1] |
WASHER
|
0.0110(lbs); 0.005
|
| 150. |
3589041290
|
[1] |
BEARING BALL
|
0.5126(lbs); 0.233
|
