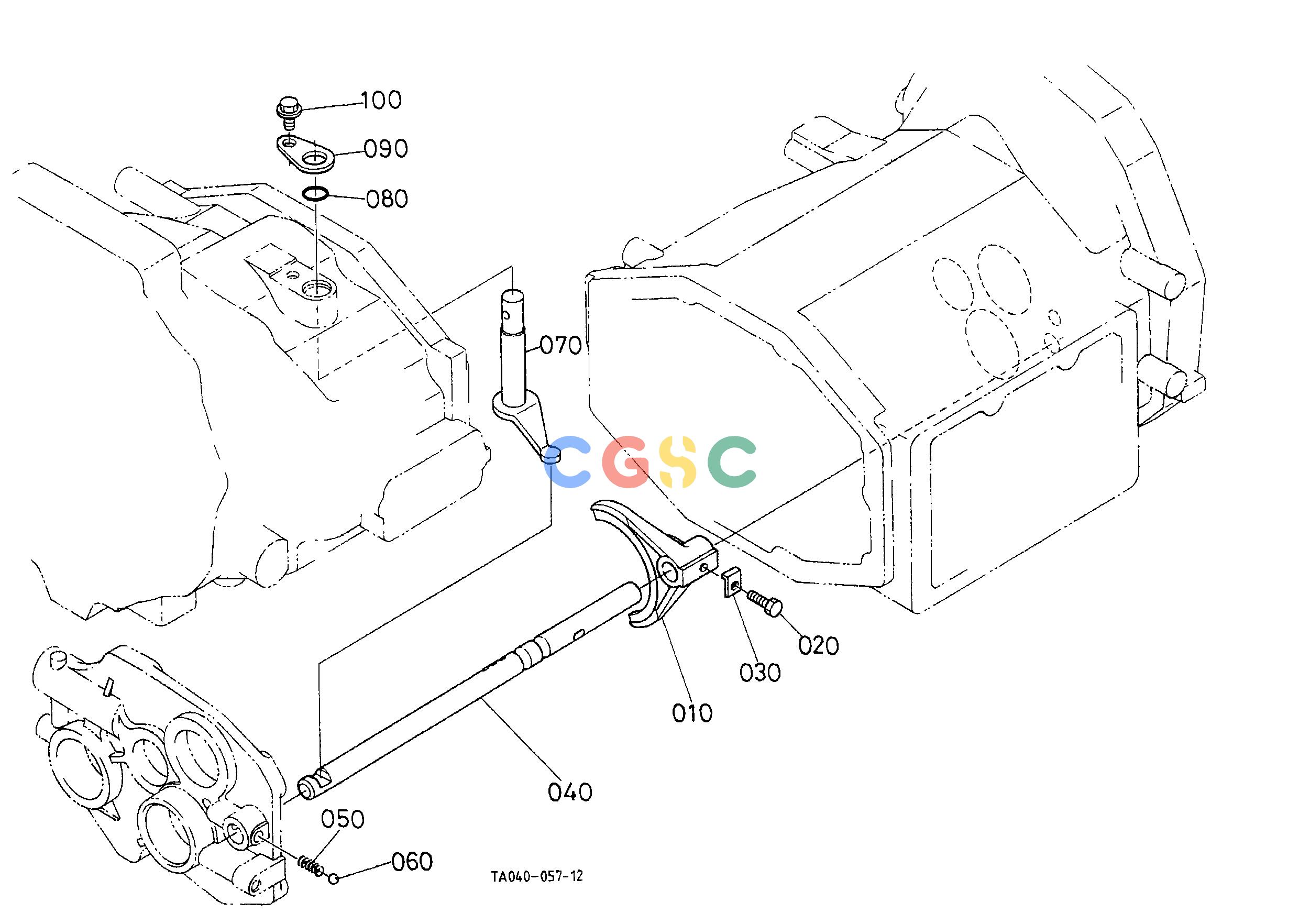

久保田零件查询D20500 SHUTTLE SHIFT FORK [GST TYPE] CLUTCH/TRANSMISSION/REAR AXLEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
863 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04024300
|
[1] |
FORK SHUTTLE SHIFT
|
0.8250(lbs); 0.375
|
| 020. |
3407664340
|
[1] |
BOLT REAMER
|
0.0330(lbs); 0.015
|
| 030. |
3242067970
|
[1] |
WASHER
|
0.0044(lbs); 0.002
|
| 040. |
TA04064312
|
[1] |
ROD FORK
|
1.5840(lbs); 0.720
|
| 050. |
6223118530
|
[1] |
SPRING
|
0.0440(lbs); 0.020
|
| 060. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 070. |
T007024320
|
[1] |
ARM SHUTTLE SHIFT
|
0.7150(lbs); 0.325
|
| 080. |
0481100200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
0481600200
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 090. |
3407024350
|
[1] |
STOPPER
|
0.0440(lbs); 0.020
|
| 100. |
0175450812
|
[1] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
