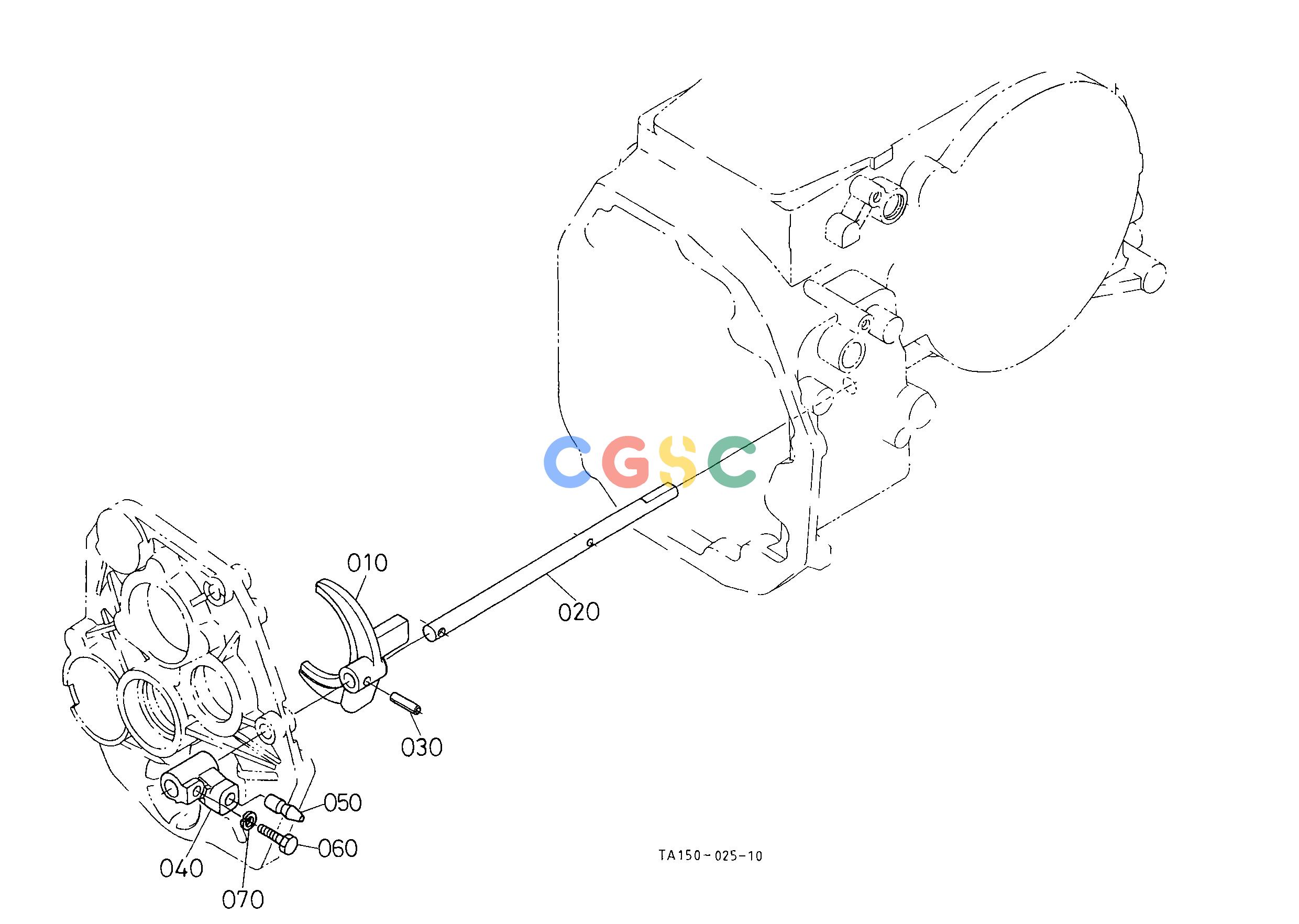

久保田零件查询D21501 RANGE GEAR SHIFT FORK [GST TYPE] [W/O CREEP] ## [SANS TYPE DE RAMPANTE] CLUTCH/TRANSMISSION/REAR AXLEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
332 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04064400
|
[1] |
FORK RANGE SHIFT
|
0.8580(lbs); 0.390
|
| 020. |
TA04064410
|
[1] |
ROD FORK
|
0.8580(lbs); 0.390
|
| 030. |
0541100625
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 040. |
3407664420
|
[1] |
SHIFTER
|
0.3080(lbs); 0.140
|
| 050. |
3407664170
|
[1] |
PIN SHIFT
|
0.0440(lbs); 0.020
|
| 060. |
3135123570
|
[1] |
BOLT FORK LOCK
|
0.0154(lbs); 0.007
|
| 070. |
0451260060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
