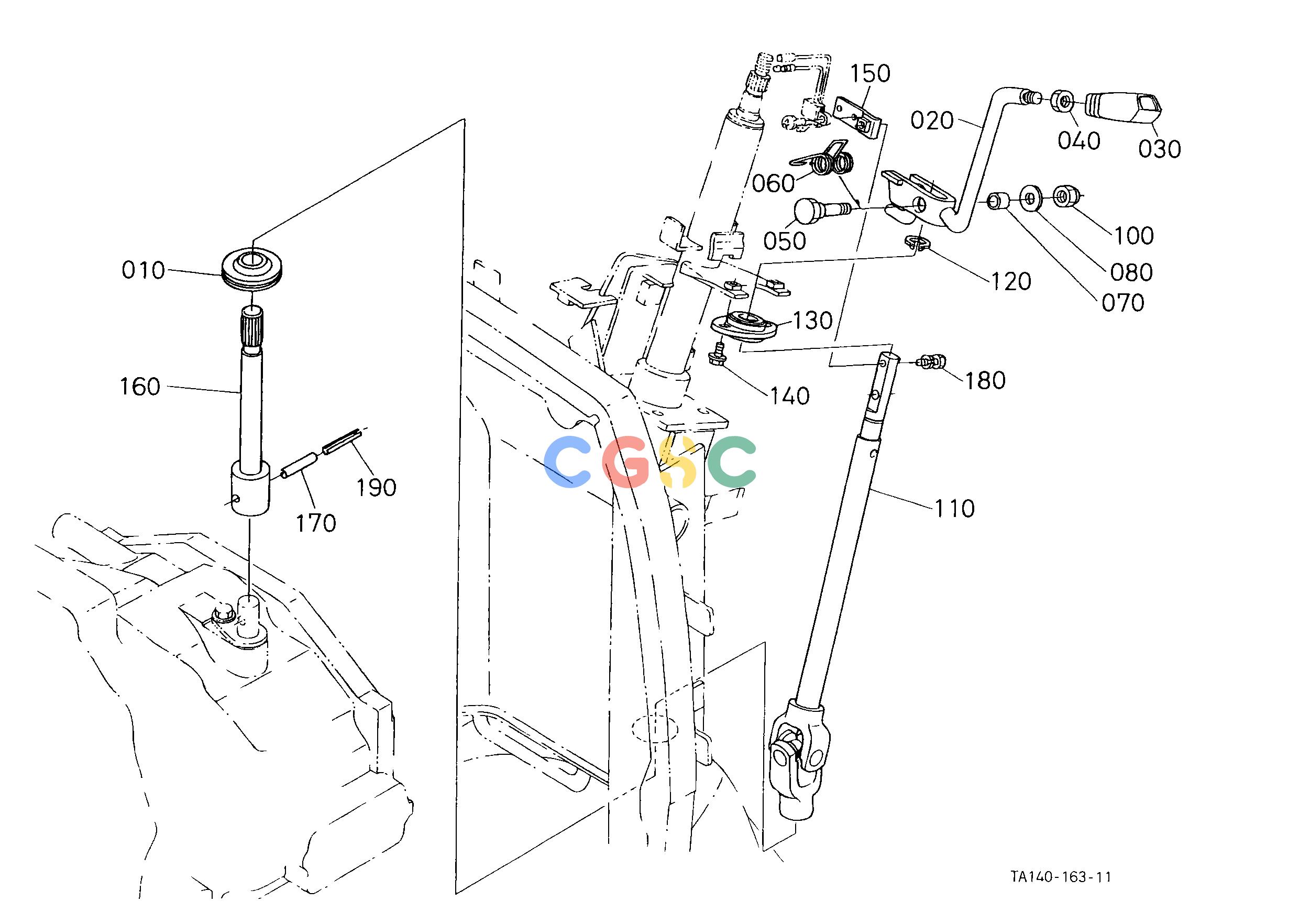

久保田零件查询E10500 SHUTTLE SHIFT LEVER [GST TYPE] SPEED CHANGE SHIFT FORK/SHIFT LEVEREPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
444 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3407043320
|
[1] |
GROMMET
|
0.0220(lbs); 0.010
|
| 020. |
TA04043513
|
[1] |
LEVER SHUTTLE
|
0.7480(lbs); 0.340
|
| 020. |
TA04043515
|
[1] |
LEVER SHUTTLE
|
0.7480(lbs); 0.340
|
| 030. |
TA04017472
|
[1] |
GRIP LEVER
|
0.0594(lbs); 0.027
|
| 040. |
0211650100
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 050. |
TA04043970
|
[1] |
BOLT REAMER
|
0.0924(lbs); 0.042
|
| 060. |
T018043942
|
[1] |
SPRING
|
0.0264(lbs); 0.012
|
| 070. |
TA04043920
|
[1] |
COLLAR SHUTTLE
|
0.0110(lbs); 0.005
|
| 080. |
0401360080
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 100. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 100. |
0255250080
|
[1] |
NUT LOCK
|
0.0110(lbs); 0.005
|
| 110. |
TA04043544
|
[1] |
JOINT UNIVERSAL
|
2.0130(lbs); 0.915
|
| 120. |
0461200150
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 130. |
TA04043870
|
[1] |
BEARING FLANGE
|
0.0440(lbs); 0.020
|
| 140. |
0175450616
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 150. |
TA04043982
|
[1] |
STAY SWITCH
|
0.0440(lbs); 0.020
|
| 160. |
TA04043534
|
[1] |
SHAFT SHUTTLE SHIFT
|
0.8470(lbs); 0.385
|
| 170. |
0541100630
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 180. |
0102350620
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
| 190. |
T027015310
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
