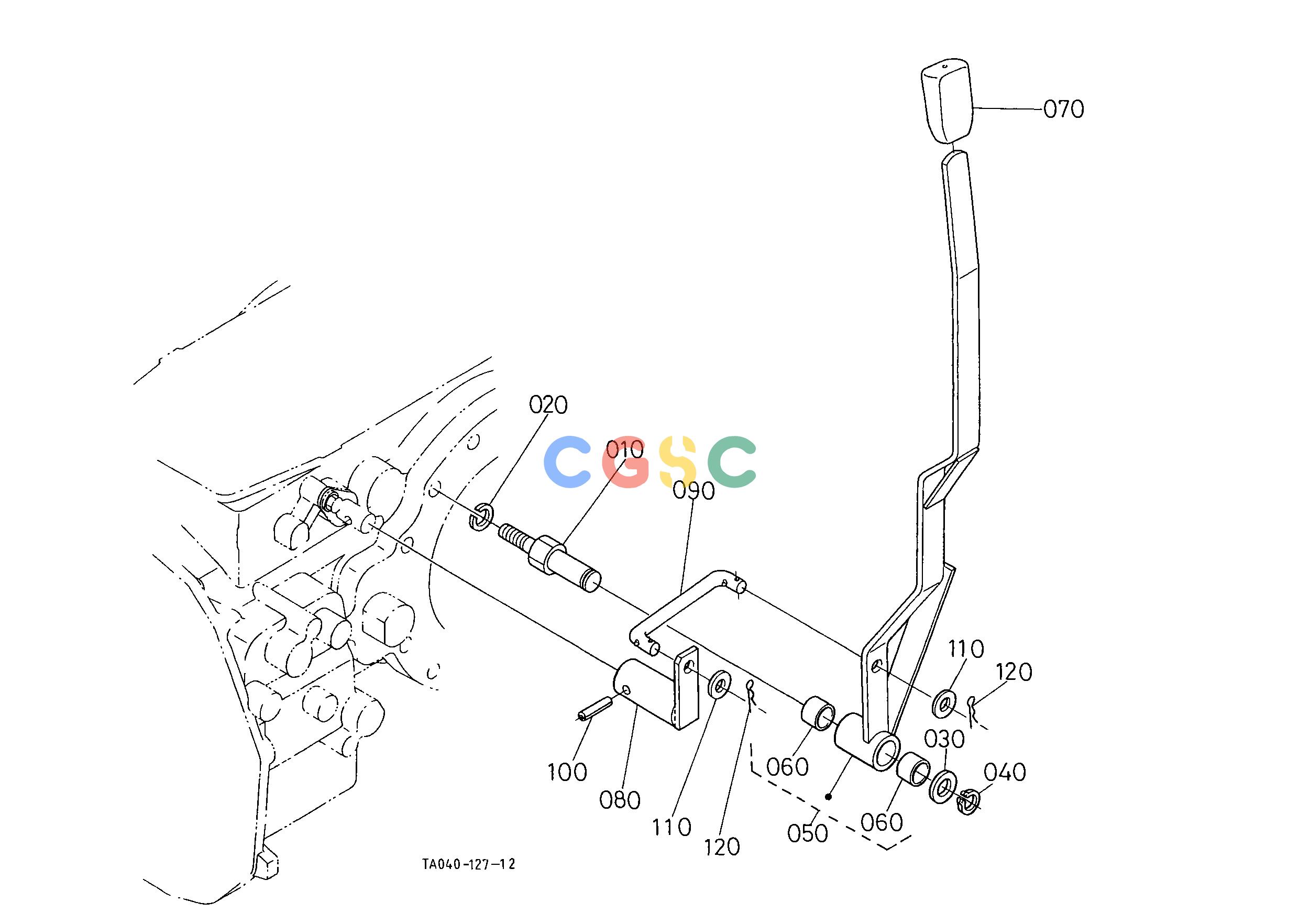

久保田零件查询E11500 CREEP GEAR SHIFT LEVER [GST TYPE] [WITH CREEP] ## [OPTION] [AVEC TYPE DE RAMPANTE][OPTION] SPEED CHANGE SHIFT FORK/SHIFT LEVEREPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
693 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04064482
|
[1] |
SHAFT
|
0.3850(lbs); 0.175
|
| 020. |
0451260120
|
[1] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 030. |
3135116590
|
[1] |
SHIM
|
0.0110(lbs); 0.005
|
| 040. |
0461200180
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 050. |
3407624553
|
[1] |
ASSY LEVER CREEP
|
2.2000(lbs); 1.000
|
| 060. |
0851101810
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
| 070. |
TA04024490
|
[1] |
GRIP LEVER
|
0.0726(lbs); 0.033
|
| 080. |
TA04024564
|
[1] |
LEVER CREEP
|
0.7040(lbs); 0.320
|
| 090. |
3407624580
|
[1] |
ROD CREEP
|
0.1980(lbs); 0.090
|
| 100. |
0541100628
|
[1] |
PIN SPRING
|
0.0132(lbs); 0.006
|
| 110. |
0401150100
|
[2] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 120. |
0551561000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
