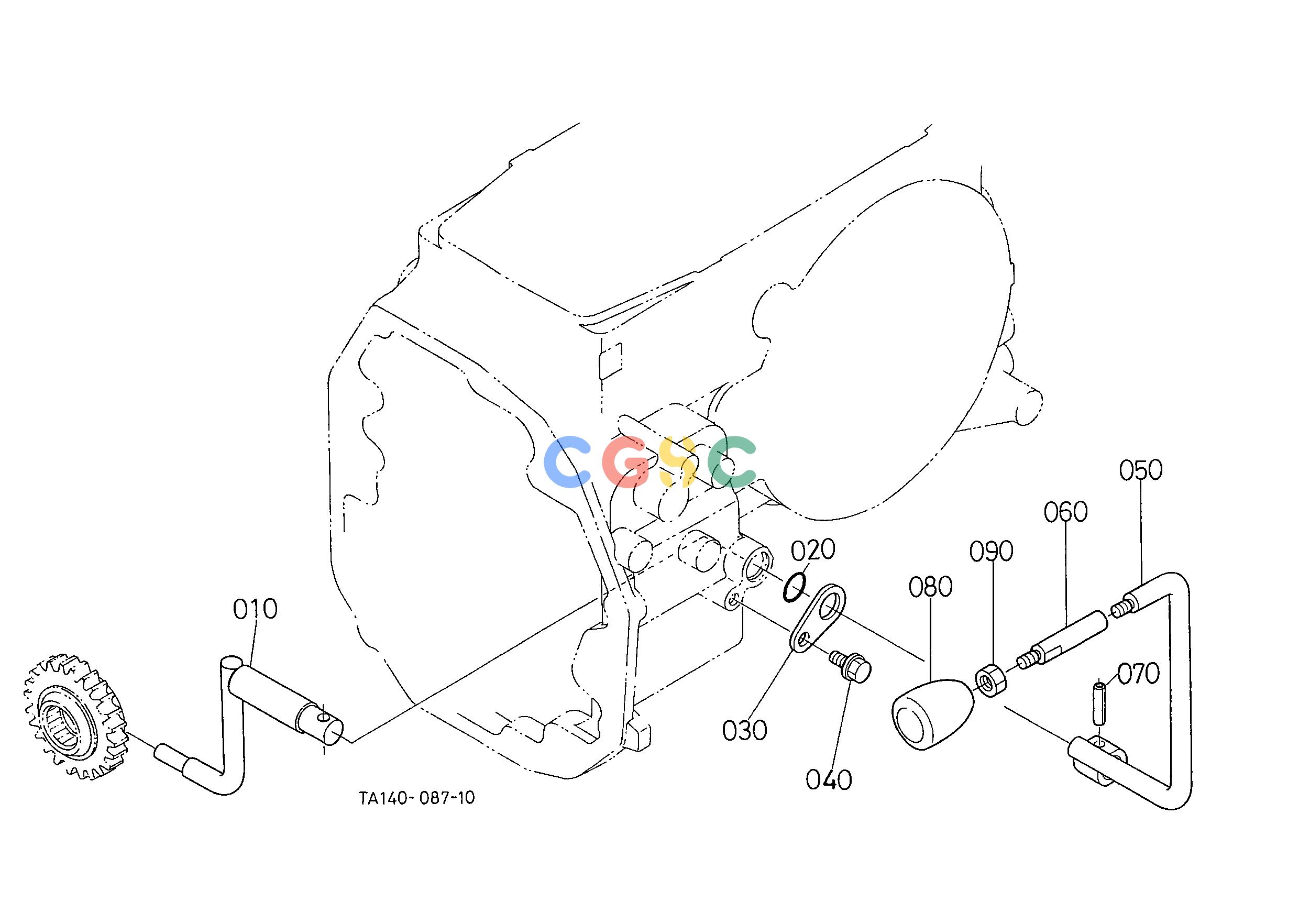

久保田零件查询E14000 FRONT WHEEL DRIVE LEVER FRONT AXLE/CHASSISEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
239 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04015180
|
[1] |
LEVER SHIFT
|
0.8910(lbs); 0.405
|
| 020. |
0481100200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 020. |
0481600200
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 030. |
3407024350
|
[1] |
STOPPER
|
0.0440(lbs); 0.020
|
| 040. |
0175450812
|
[1] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 050. |
TA14015473
|
[1] |
LEVER 4WD CHANGE
|
1.1110(lbs); 0.505
|
| 060. |
TA14015490
|
[1] |
LEVER 4WD CHANGE
|
0.1892(lbs); 0.086
|
| 070. |
0541100630
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 080. |
TA04015480
|
[1] |
GRIP LEVER
|
0.1166(lbs); 0.053
|
| 090. |
0211650100
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
