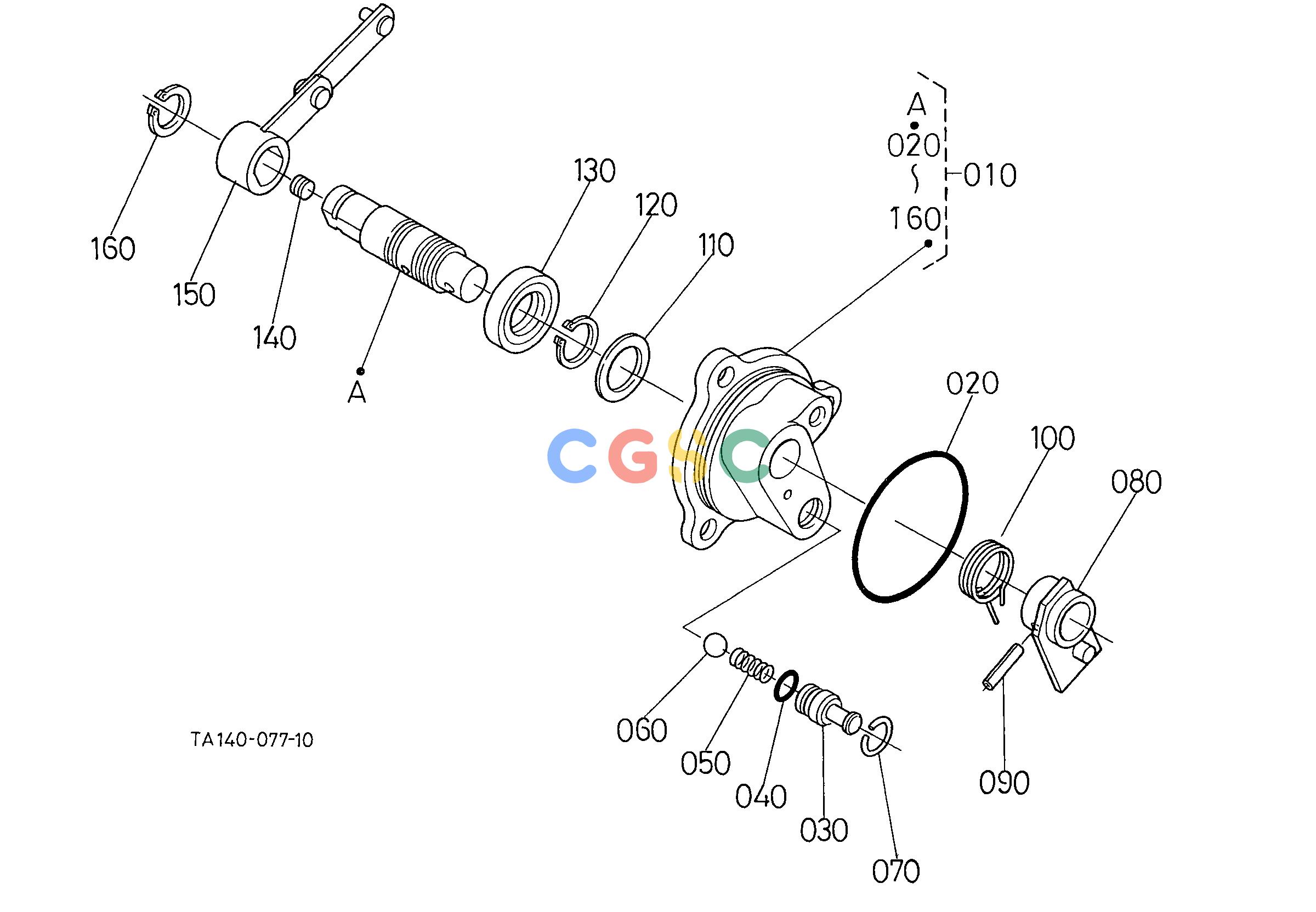

久保田零件查询E12700 PTO CLUTCH VALVE [COMPONENT PARTS] [GST TYPE] ## [TYPE GST] SPEED CHANGE SHIFT FORK/SHIFT LEVEREPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
903 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04069300
|
[1] |
ASSY VALVE I-PTO
|
2.1010(lbs); 0.955
|
| 020. |
0481106630
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
TA04069320
|
[1] |
PLUG
|
0.0132(lbs); 0.006
|
| 040. |
0481100090
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0481700090
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
TA04069330
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 060. |
0771503209
|
[1] |
BALL
|
0.0044(lbs); 0.002
|
| 070. |
6740103690
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 080. |
TA04069340
|
[1] |
LEVER VALVE ROTOR
|
0.1254(lbs); 0.057
|
| 090. |
0541100522
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 100. |
TA04069360
|
[1] |
SPRING
|
0.0308(lbs); 0.014
|
| 110. |
5077012180
|
[1] |
COLLAR THRUST
|
0.0066(lbs); 0.003
|
| 120. |
0461200200
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 130. |
0950020358
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 140. |
6751136640
|
[1] |
PLUG
|
0.0066(lbs); 0.003
|
| 150. |
TA04069370
|
[1] |
LEVER VALVE
|
0.1650(lbs); 0.075
|
| 160. |
0461200180
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
