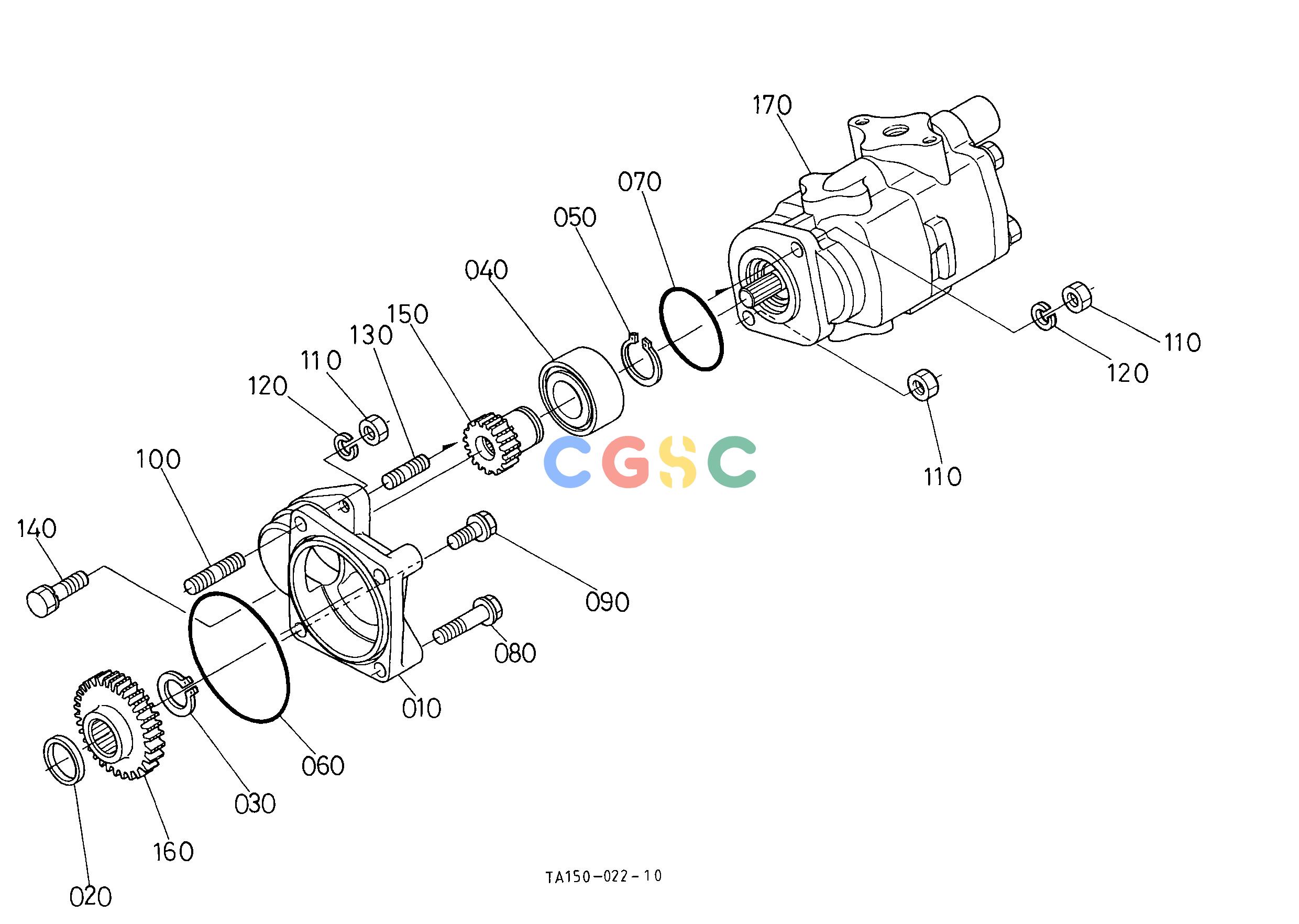

久保田零件查询H12001 HYDRAULIC PUMP [GST TYPE] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
215 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3407033612
|
[1] |
HOLDER PUMP
|
0.8250(lbs); 0.375
|
| 020. |
3537037820
|
[1] |
COLLAR
|
0.0330(lbs); 0.015
|
| 030. |
1547195360
|
[1] |
CIR CLIP EXTERNAL
|
0.0088(lbs); 0.004
|
| 040. |
0824105205
|
[1] |
BEARING BALL
|
0.3894(lbs); 0.177
|
| 050. |
0461200250
|
[1] |
CIR CLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 060. |
0481110850
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 070. |
0481110500
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
T106036620
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
0175450840
|
[2] |
BOLT FLANGE
|
0.0440(lbs); 0.020
|
| 090. |
0175450820
|
[1] |
BOLT FLANGE
|
0.0330(lbs); 0.015
|
| 100. |
3824036330
|
[1] |
STUD
|
0.0176(lbs); 0.008
|
| 110. |
0215650080
|
[3] |
NUT
|
0.0088(lbs); 0.004
|
| 120. |
0451260080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 130. |
0151360820
|
[1] |
STUD
|
0.0330(lbs); 0.015
|
| 140. |
0112350835
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 150. |
TA15072720
|
[1] |
GEAR
|
0.3080(lbs); 0.140
|
| 160. |
TA15072710
|
[1] |
GEAR
|
1.0340(lbs); 0.470
|
| 170. |
3455036400
|
[1] |
ASSY PUMP HYDRAULIC
|
7.7000(lbs); 3.500
|
