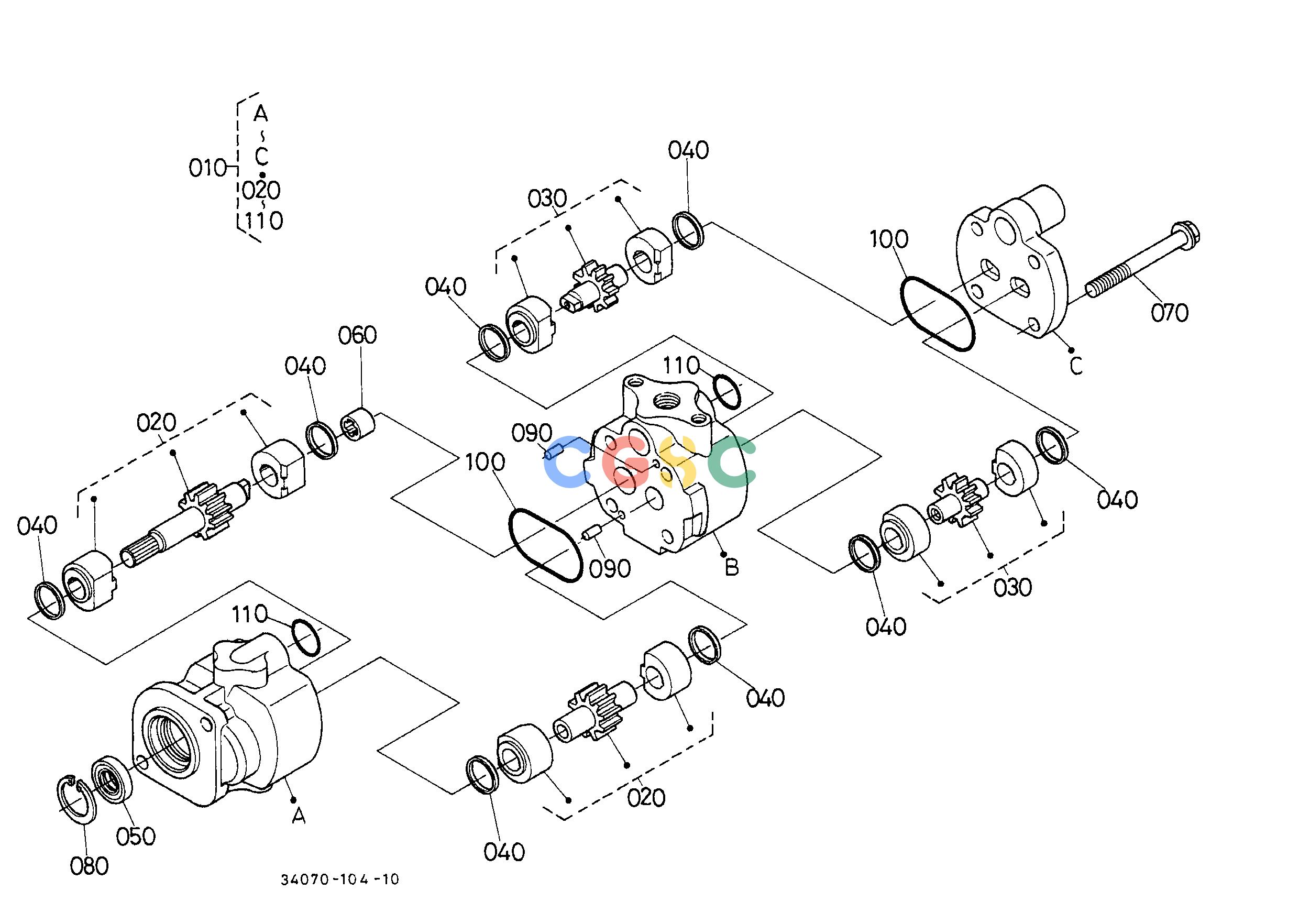

久保田零件查询H12501 HYDRAULIC PUMP [COMPONENT PARTS] [GST TYPE] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
668 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3455036400
|
[1] |
ASSY PUMP HYDRAULIC
|
7.7000(lbs); 3.500
|
| 020. |
3139176302
|
[1] |
COMP.GEAR HYD.PUMP
|
1.1220(lbs); 0.510
|
| 030. |
3508076500
|
[1] |
COMP.GEAR HYD.PUMP
|
0.6380(lbs); 0.290
|
| 040. |
3818076172
|
[8] |
SQUARE RING
|
0.0044(lbs); 0.002
|
| 050. |
3138176390
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 060. |
3741076470
|
[1] |
COUPLING
|
0.0220(lbs); 0.010
|
| 070. |
0175451090
|
[4] |
BOLT FLANGE
|
0.0770(lbs); 0.035
|
| 080. |
0461100300
|
[1] |
CIR CLIP INTERNAL
|
0.0088(lbs); 0.004
|
| 090. |
0501200612
|
[2] |
PIN STRAIGHT
|
0.0066(lbs); 0.003
|
| 100. |
0481050550
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
| 110. |
0481100220
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 110. |
0481700220
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
