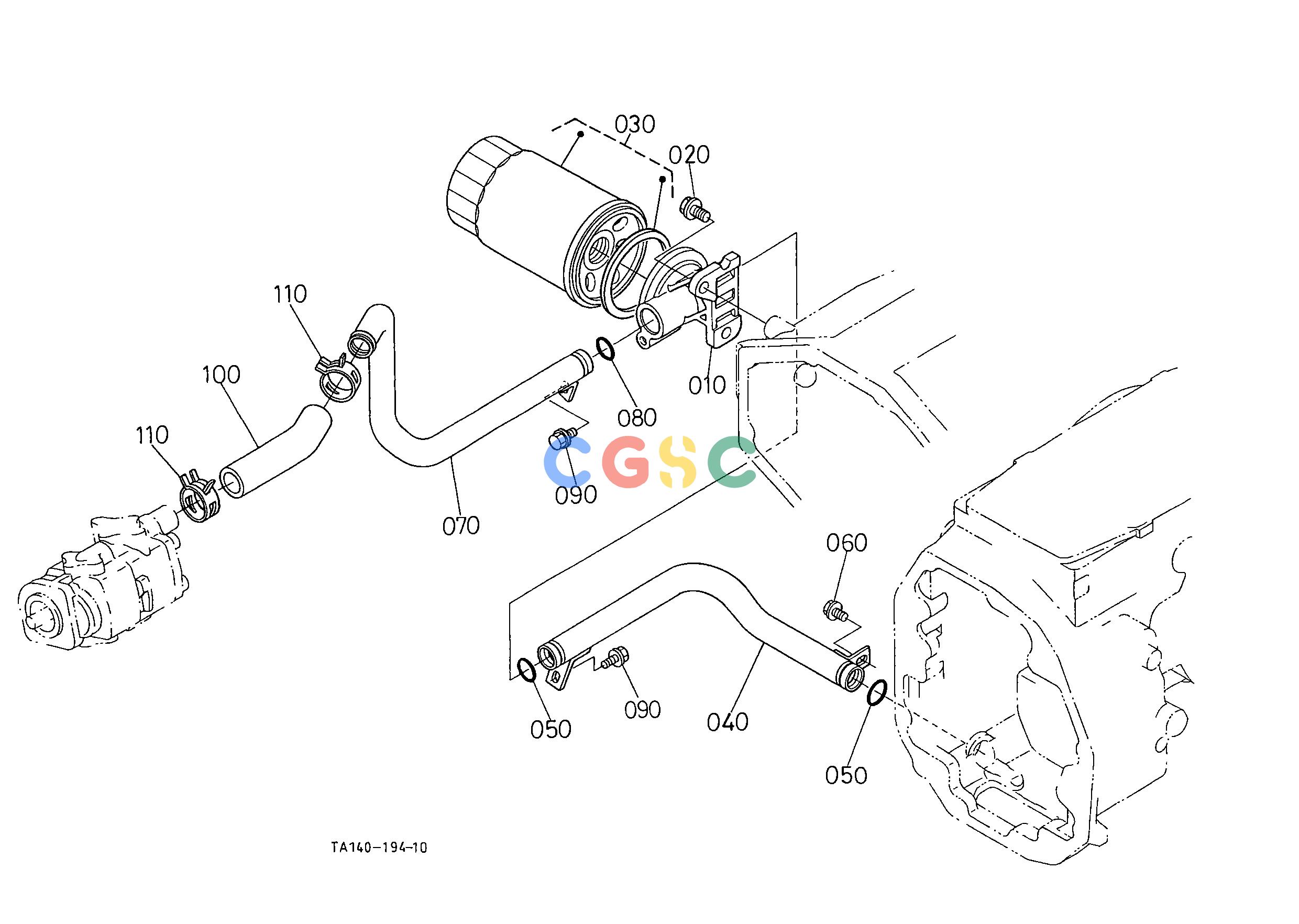

久保田零件查询H20501 HYDRAULIC OIL LINE(INLET) [GST TYPE] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
925 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04033212
|
[1] |
BRACKET FILTER
|
1.1550(lbs); 0.525
|
| 020. |
0177461020
|
[2] |
BOLT FLANGE
|
0.0484(lbs); 0.022
|
| 030. |
T007037710
|
[1] |
CARTRIDGE OIL FILTER
|
1.5950(lbs); 0.725
|
| 040. |
TA04033362
|
[1] |
PIPE INLET
|
1.1000(lbs); 0.500
|
| 050. |
0481107230
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0481707230
|
[2] |
O RING
|
0.0110(lbs); 0.005
|
| 060. |
0175450812
|
[1] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 070. |
TA04033320
|
[1] |
PIPE INLET
|
1.0120(lbs); 0.460
|
| 080. |
0481007230
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
0481707230
|
[1] |
O RING
|
0.0110(lbs); 0.005
|
| 090. |
0175450816
|
[2] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 100. |
TA04033340
|
[1] |
HOSE INLET
|
0.2266(lbs); 0.103
|
| 110. |
3135138180
|
[2] |
BAND PIPE
|
0.0440(lbs); 0.020
|
