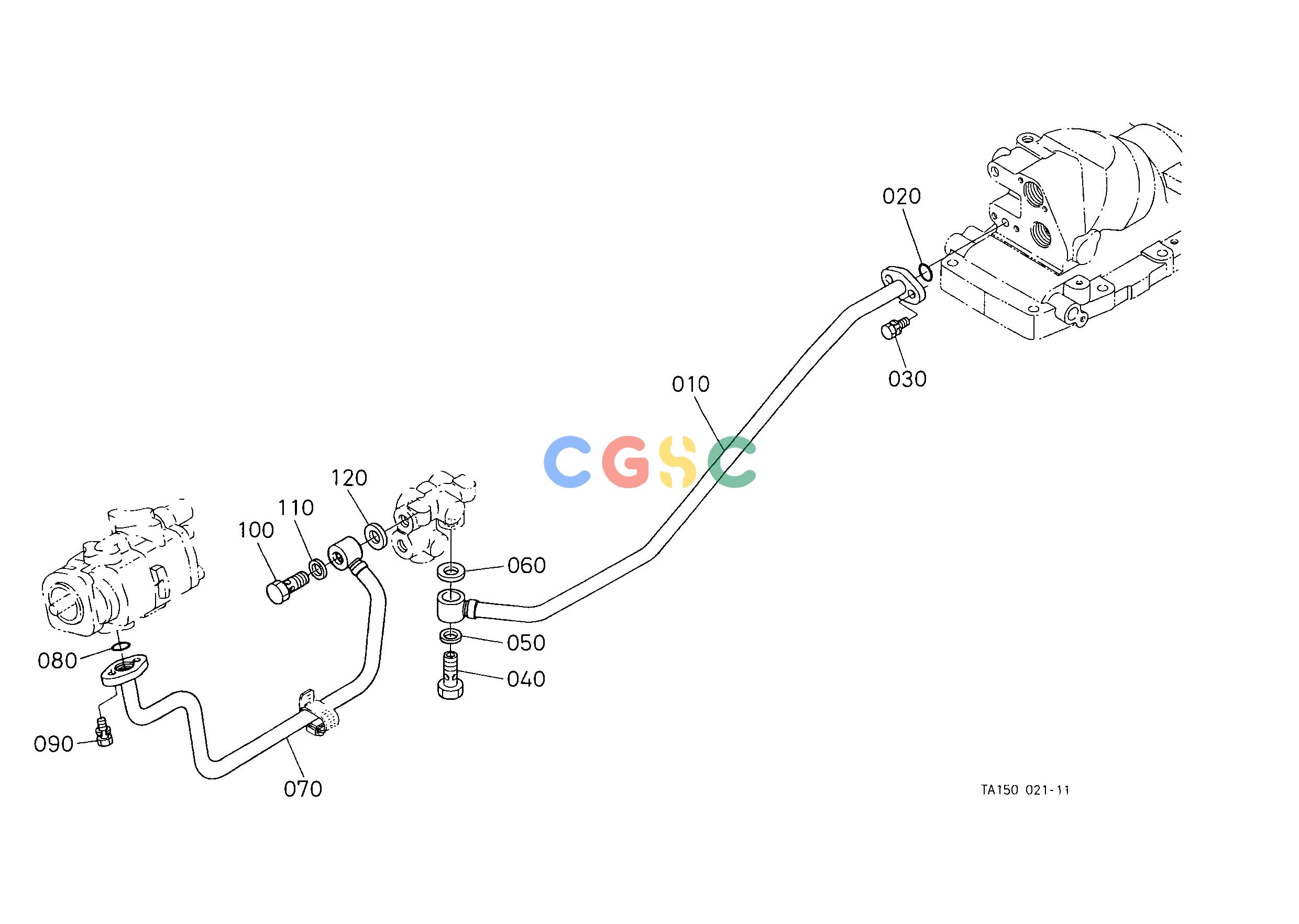

久保田零件查询H21001 HYDRAULIC OIL LINE(DELIVERY) [GST TYPE] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
892 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04033412
|
[1] |
COMP.PIPE DELIVERY
|
1.2210(lbs); 0.555
|
| 020. |
0481000180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 020. |
0481700180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0112350820
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 040. |
6659136250
|
[1] |
JOINT
|
0.1760(lbs); 0.080
|
| 050. |
6711137180
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
| 060. |
6740136720
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
| 070. |
TA15033423
|
[1] |
COMP.PIPE DELIVERY
|
1.1880(lbs); 0.540
|
| 080. |
0481000180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
0481700180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
0112350820
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 100. |
6659136250
|
[1] |
JOINT
|
0.1760(lbs); 0.080
|
| 110. |
6711137180
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
| 120. |
6740136720
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
