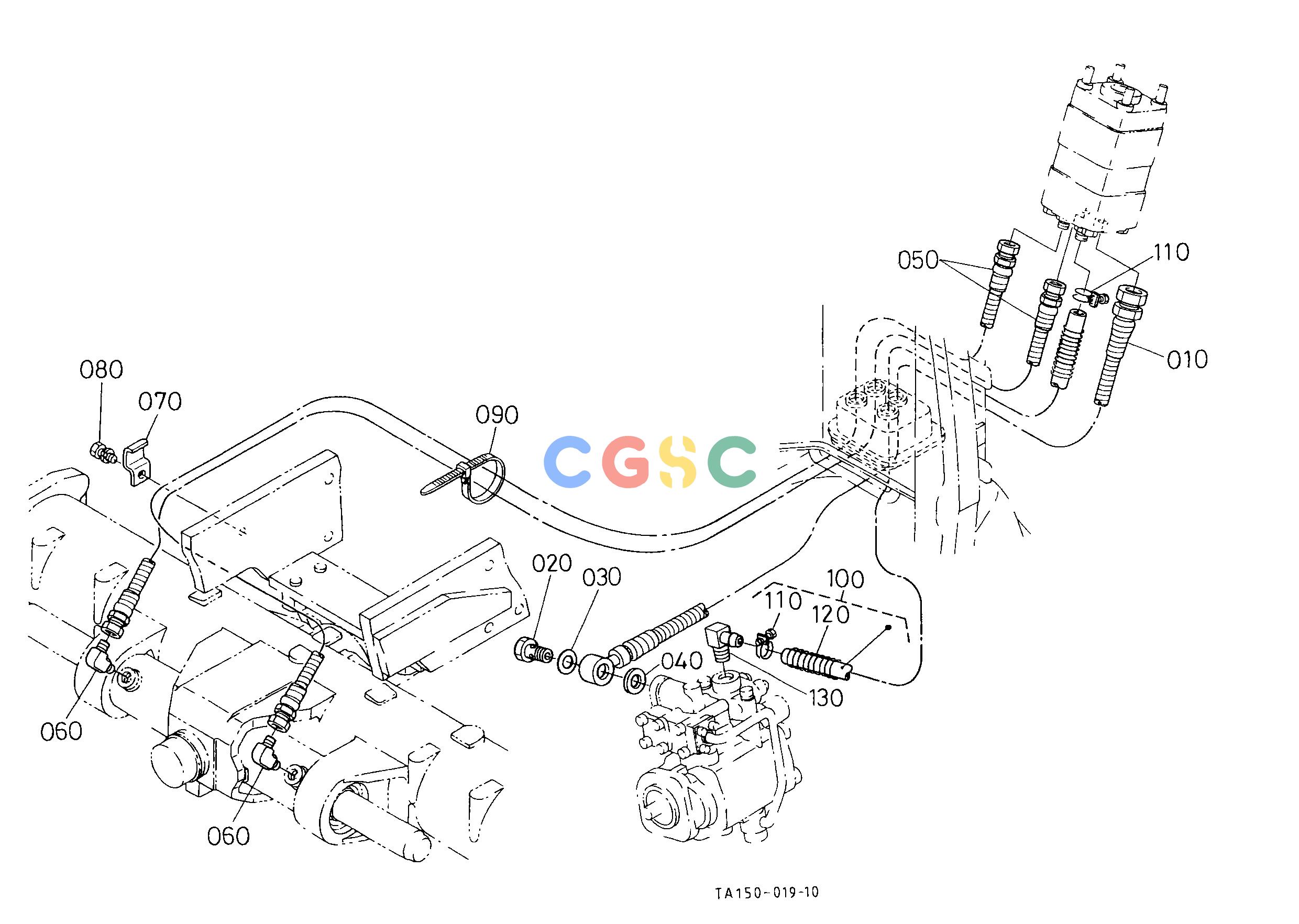

久保田零件查询H21501 HYDRAULIC OIL LINE(PS) [GST TYPE] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
576 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA15033510
|
[1] |
HOSE DELIVERY
|
1.1000(lbs); 0.500
|
| 020. |
6659136250
|
[1] |
JOINT
|
0.1760(lbs); 0.080
|
| 030. |
6711137180
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
| 040. |
TA04037180
|
[1] |
GASKET
|
0.0088(lbs); 0.004
|
| 050. |
TA15033520
|
[2] |
HOSE DELIVERY
|
0.5060(lbs); 0.230
|
| 050. |
TA15033523
|
[2] |
HOSE DELIVERY
|
0.5060(lbs); 0.230
|
| 060. |
5671328130
|
[2] |
ADAPTER CYLINDER
|
0.1144(lbs); 0.052
|
| 070. |
TA04033300
|
[1] |
HOLDER HOSE
|
0.0594(lbs); 0.027
|
| 080. |
0112360814
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 080. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 090. |
5531141260
|
[1] |
BAND CORD
|
0.0154(lbs); 0.007
|
| 100. |
3403033530
|
[1] |
ASSY HOSE RETURN
|
0.6380(lbs); 0.290
|
| 110. |
1510973360
|
[2] |
BAND PIPE
|
0.0220(lbs); 0.010
|
| 120. |
3135145330
|
[1] |
SPRING PROTECTOR
|
0.1210(lbs); 0.055
|
| 130. |
3407036910
|
[1] |
JOINT
|
0.1540(lbs); 0.070
|
