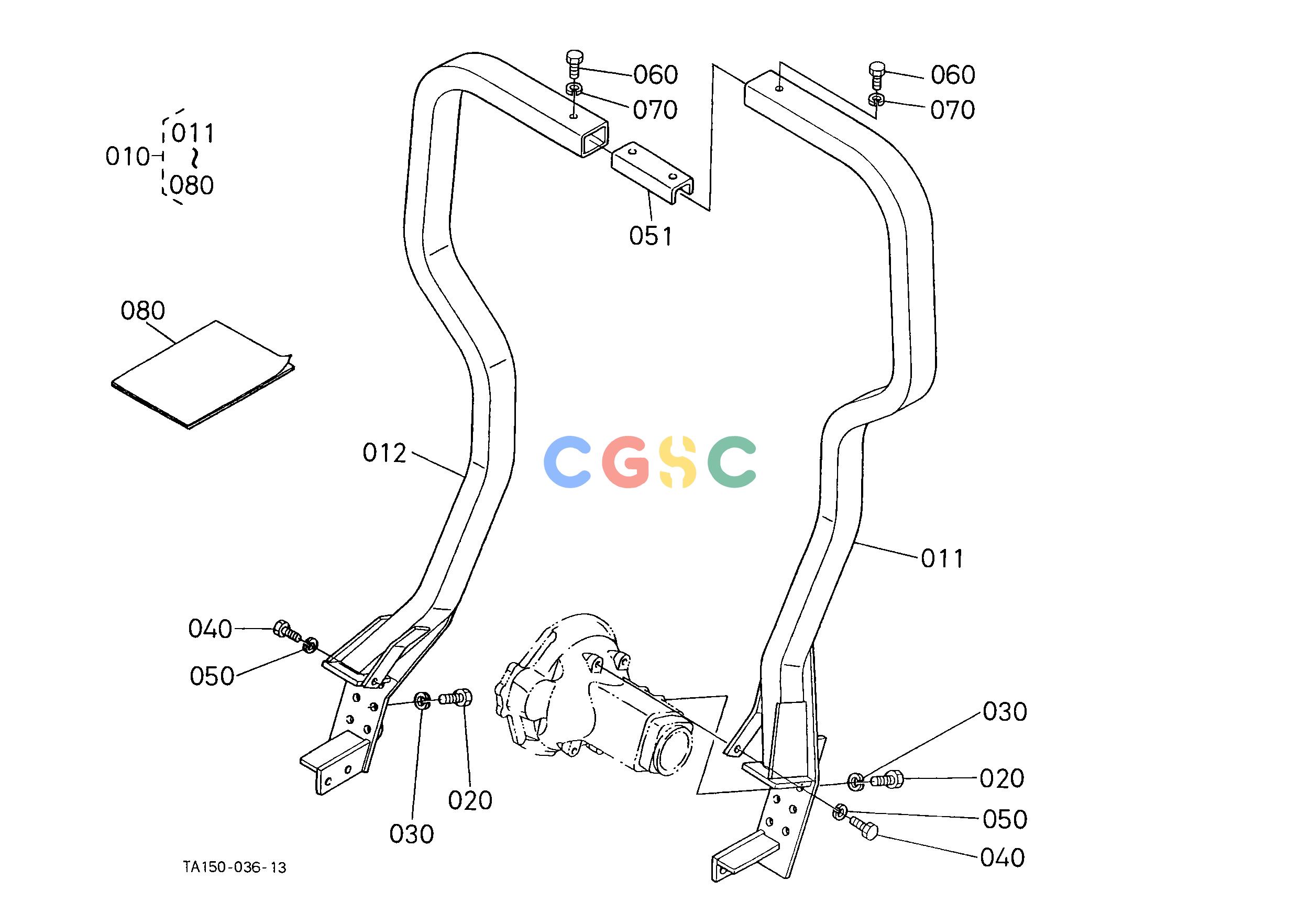

久保田零件查询L30100 ROPS [ROPS TYPE] [OLD TYPE] ## S.No.<=72093 [TYPE VIEUX] ROPSEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
601 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA15048010
|
[1] |
ASSY ROPS
|
0.0000(lbs); 0.000
|
| 011. |
9999999999
|
[1] |
COMP.FRAME LH
|
0.0000(lbs); 0.000
|
| 012. |
9999999999
|
[1] |
COMP.FRAME RH
|
0.0000(lbs); 0.000
|
| 020. |
0117651430
|
[12] |
BOLT
|
0.1144(lbs); 0.052
|
| 030. |
7559933016
|
[12] |
WASHER SPRING
|
0.1760(lbs); 0.080
|
| 040. |
0117351230
|
[2] |
BOLT
|
0.0814(lbs); 0.037
|
| 050. |
0451260120
|
[2] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 051. |
9999999999
|
[1] |
CONNECTOR ROPS
|
0.0000(lbs); 0.000
|
| 060. |
7559904625
|
[2] |
HEX.BOLT
|
0.1232(lbs); 0.056
|
| 070. |
7559933016
|
[2] |
WASHER SPRING
|
0.1760(lbs); 0.080
|
| 080. |
TA14048493
|
[1] |
MANUAL ASSEMBLY
|
0.0000(lbs); 0.000
|
