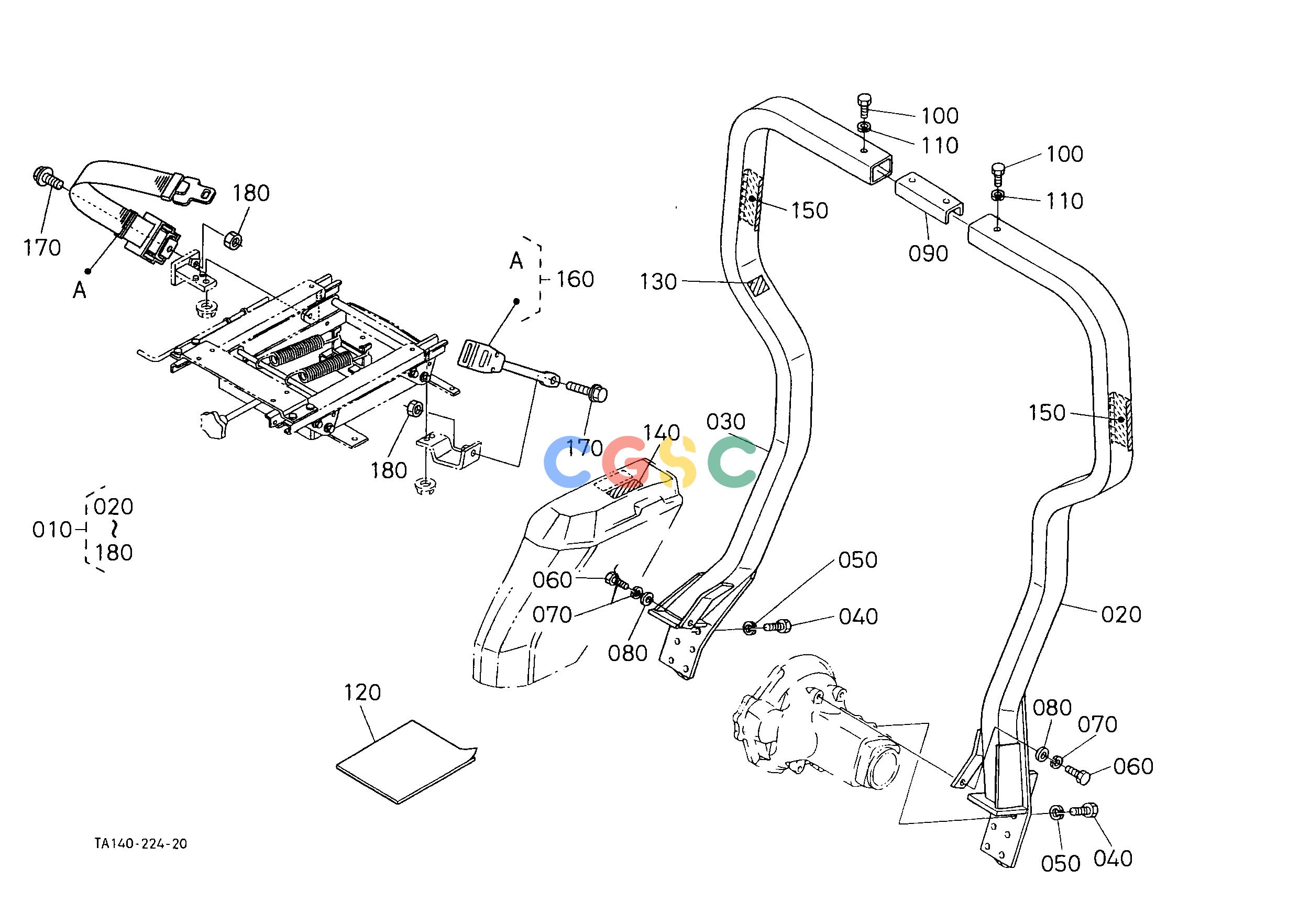

久保田零件查询L30101 ROPS [ROPS TYPE] [NEW TYPE] ## S.No.>=72094 [TYPE NOUVEAU] ROPSEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
381 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA15048442
|
[1] |
KIT ROPS REPLACEMENT
|
0.0000(lbs); 0.000
|
| 020. |
9999999999
|
[1] |
COMP.FRAME LH
|
0.0000(lbs); 0.000
|
| 030. |
9999999999
|
[1] |
COMP.FRAME RH
|
0.0000(lbs); 0.000
|
| 040. |
0117651430
|
[12] |
BOLT
|
0.1144(lbs); 0.052
|
| 050. |
0Y45050090
|
[12] |
WASHER SPRING
|
0.0154(lbs); 0.007
|
| 060. |
0107351230
|
[2] |
BOLT
|
0.0902(lbs); 0.041
|
| 070. |
0451260120
|
[2] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 080. |
0401360120
|
[2] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 090. |
9999999999
|
[1] |
CONNECTOR ROPS
|
0.0000(lbs); 0.000
|
| 100. |
0Y10950920
|
[2] |
BOLT
|
0.1320(lbs); 0.060
|
| 110. |
0Y45050090
|
[2] |
WASHER SPRING
|
0.0154(lbs); 0.007
|
| 120. |
9999999999
|
[1] |
MANUAL INSTRUCTION
|
0.0000(lbs); 0.000
|
| 130. |
6C14047460
|
[1] |
LABEL ROPS WARNING
|
0.0022(lbs); 0.001
|
| 130. |
6C14147460
|
[1] |
LABEL ROPS WARNING
|
0.0022(lbs); 0.001
|
| 140. |
TA04049320
|
[1] |
LABEL ROPS WARNING
|
0.0022(lbs); 0.001
|
| 140. |
TA04049150
|
[1] |
LABEL ROPS WARNING
|
0.0066(lbs); 0.003
|
| 150. |
6C14054990
|
[2] |
REFLECTOR LABEL
|
0.0066(lbs); 0.003
|
| 160. |
6C04072253
|
[1] |
ASSY BELT SEAT
|
1.9800(lbs); 0.900
|
| 170. |
0177451025
|
[2] |
BOLT FLANGE
|
0.0440(lbs); 0.020
|
| 180. |
0211650100
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
