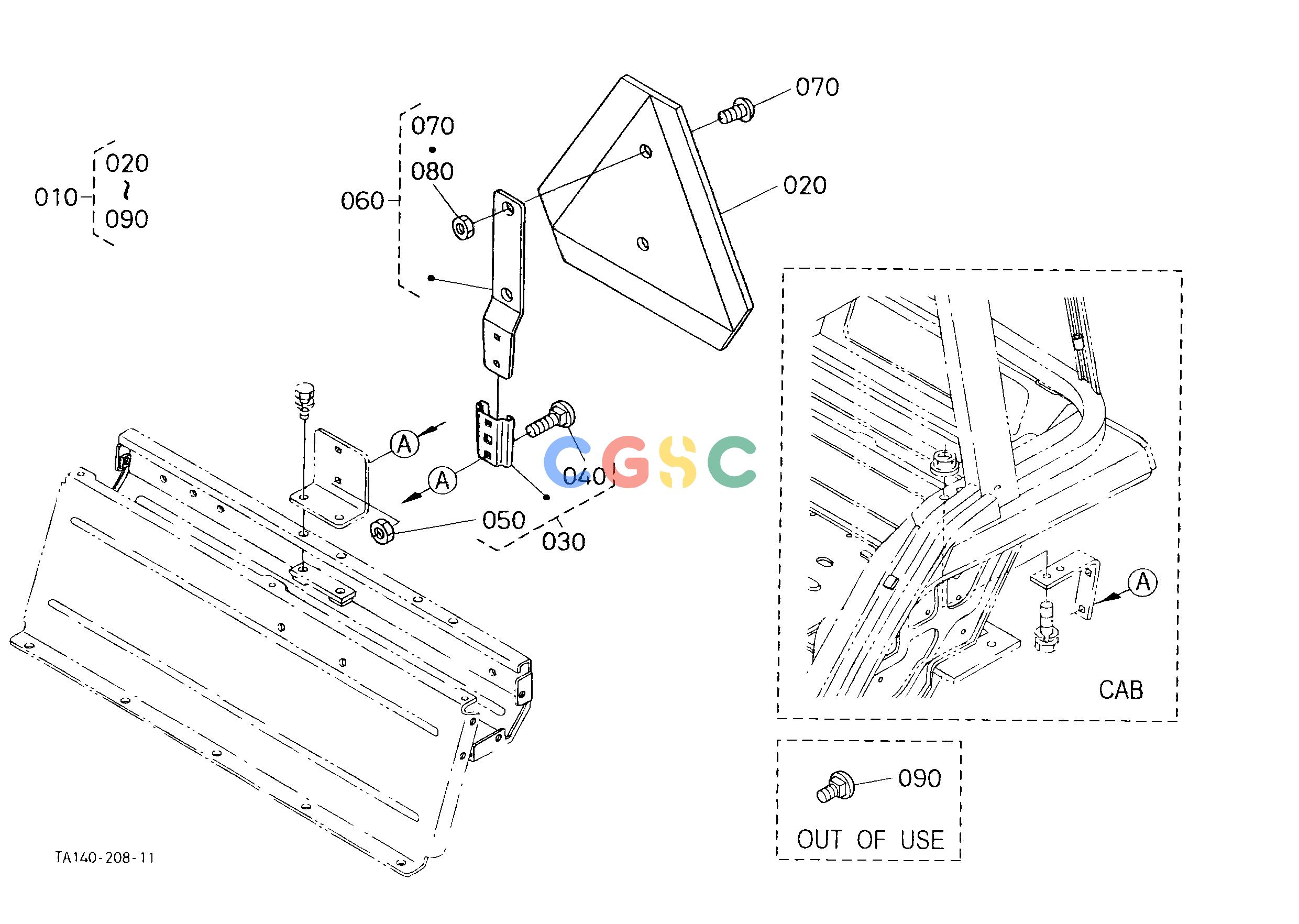

久保田零件查询L50100 SMV EMBLEM ROPSEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
143 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
9999999999
|
[1] |
SMV SIGN KIT
|
0.0000(lbs); 0.000
|
| 020. |
7L50089910
|
[1] |
SIGN SMV
|
0.7040(lbs); 0.320
|
| 030. |
7L50089920
|
[1] |
SOCKET SMV SIGN
|
0.2200(lbs); 0.100
|
| 040. |
7L50089940
|
[2] |
BOLT SQUARE NECK
|
0.0220(lbs); 0.010
|
| 050. |
7L50089950
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 060. |
7L50089960
|
[1] |
SPADE SMV SIGN
|
0.5280(lbs); 0.240
|
| 070. |
7L50089980
|
[2] |
VIS
|
0.0440(lbs); 0.020
|
| 080. |
7L50089990
|
[2] |
NUT
|
0.0022(lbs); 0.001
|
| 090. |
7L50089810
|
[2] |
BOLT SQUARE NECK
|
0.0242(lbs); 0.011
|
