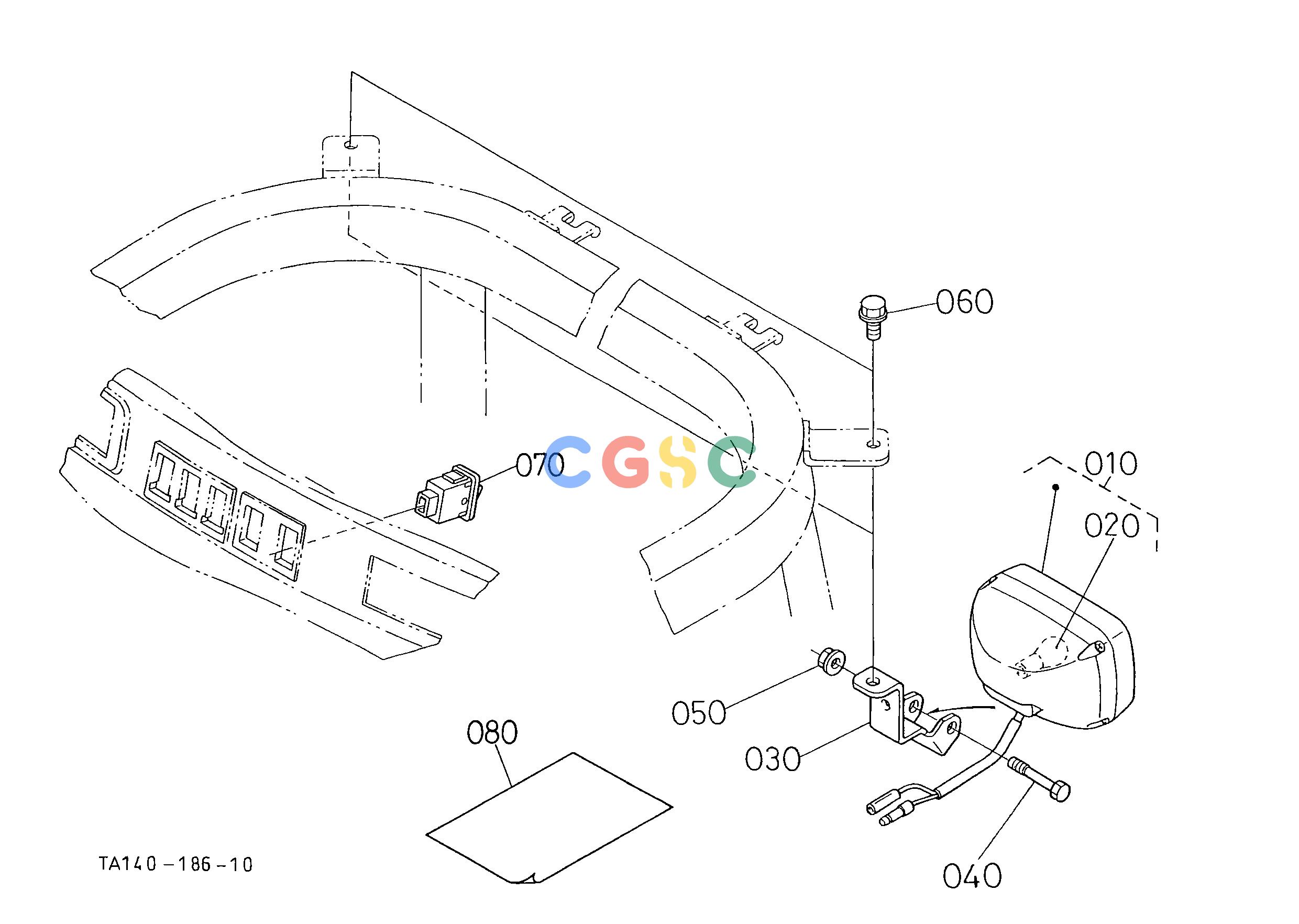

久保田零件查询T10500 WORKING LIGHT KIT [CAB TYPE] [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
299 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T027075300
|
[2] |
LIGHT WORK
|
0.8140(lbs); 0.370
|
| 020. |
9906191060
|
[2] |
BULB
|
0.0220(lbs); 0.010
|
| 030. |
T027075310
|
[2] |
STAY WORKING LIGHT
|
0.3256(lbs); 0.148
|
| 040. |
T027086210
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 050. |
T027086220
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 060. |
0177461020
|
[2] |
BOLT FLANGE
|
0.0484(lbs); 0.022
|
| 070. |
T018083070
|
[1] |
SWITCH WORK LIGHT
|
0.0550(lbs); 0.025
|
| 080. |
TA14097290
|
[1] |
MANUAL ASSEMBLY
|
0.0220(lbs); 0.010
|
