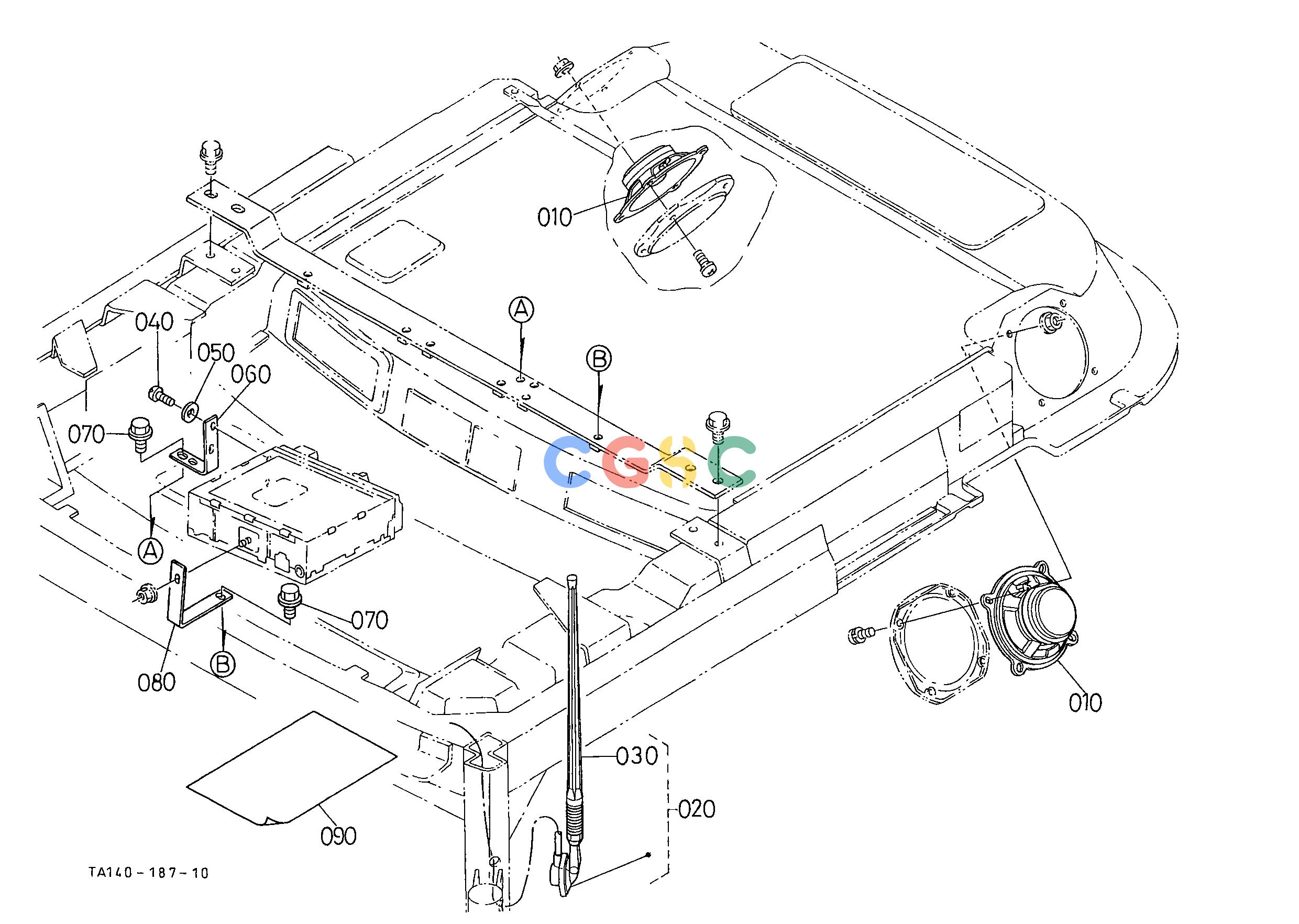

久保田零件查询T11000 SPEAKER KIT [CAB TYPE] [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
831 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T018072620
|
[2] |
SPEAKER
|
0.6820(lbs); 0.310
|
| 020. |
TA14084140
|
[1] |
ANTENNA
|
0.2750(lbs); 0.125
|
| 030. |
3F76046420
|
[1] |
ROD ANTENNA
|
0.0946(lbs); 0.043
|
| 040. |
0305450312
|
[2] |
SCREW PAN-HEAD
|
0.0022(lbs); 0.001
|
| 050. |
0401350030
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 060. |
TA14087523
|
[1] |
STAY RADIO CASSETTE
|
0.0814(lbs); 0.037
|
| 070. |
0175450616
|
[3] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 080. |
TA14087542
|
[1] |
STAY RADIO CASSETTE
|
0.1100(lbs); 0.050
|
| 080. |
TA14087560
|
[1] |
STAY RADIO CASSETTE
|
0.1100(lbs); 0.050
|
| 090. |
TA14097690
|
[1] |
MANUAL ASSEMBLY
|
0.0220(lbs); 0.010
|
