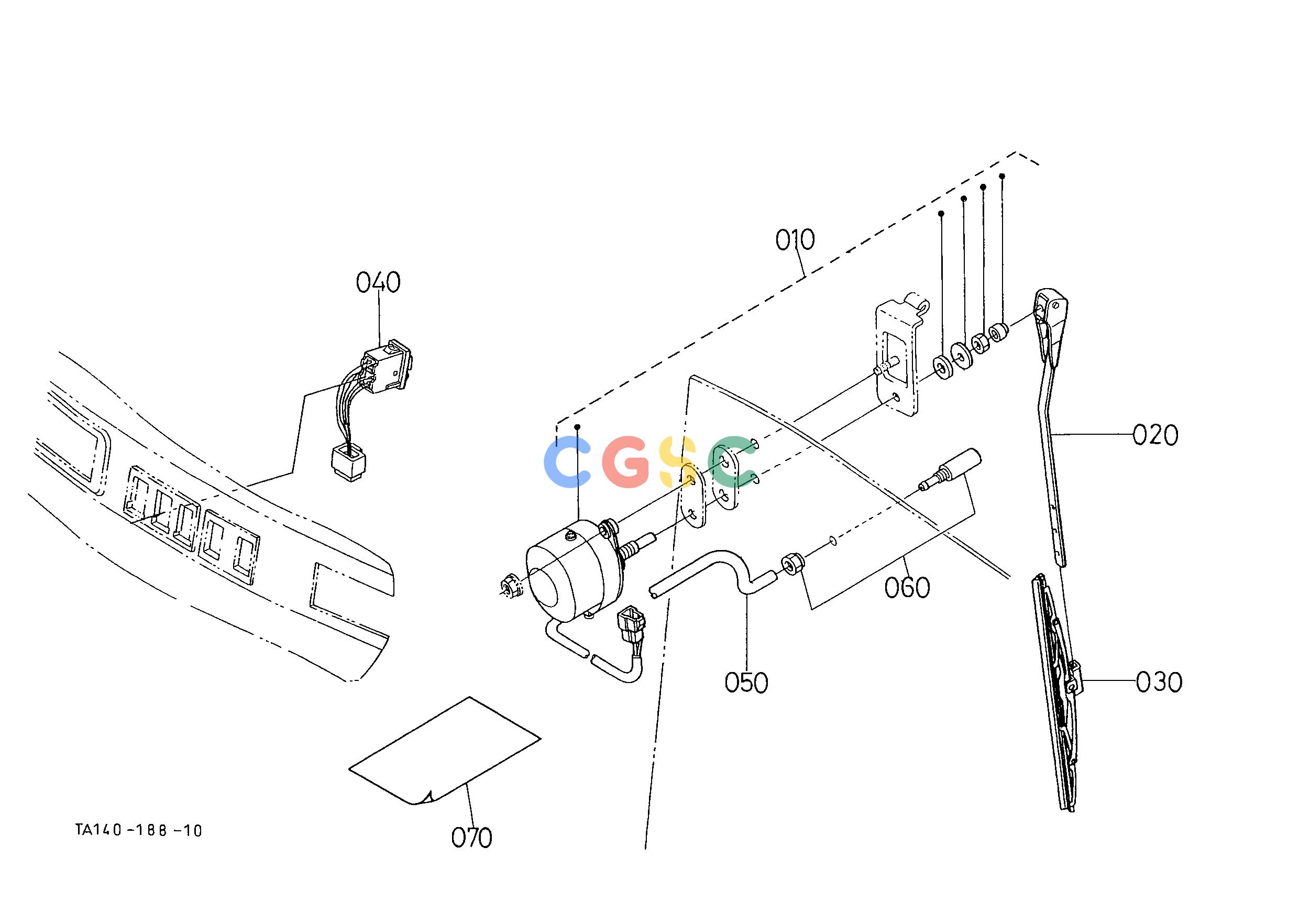

久保田零件查询T11500 REAR WIPER KIT [CAB TYPE] [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
183 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T007072670
|
[1] |
ASSY MOTOR R.WIPER
|
1.1770(lbs); 0.535
|
| 020. |
T018083430
|
[1] |
ASSY ARM REAR WIPER
|
0.2200(lbs); 0.100
|
| 030. |
9923383450
|
[1] |
ASSY BLADE R.WIPER
|
0.1100(lbs); 0.050
|
| 040. |
T007071140
|
[1] |
SWITCH WIPER
|
0.1100(lbs); 0.050
|
| 050. |
T029087680
|
[1] |
HOSE WASHER
|
0.2750(lbs); 0.125
|
| 060. |
3F76054180
|
[1] |
NOZZLE WASHER
|
0.0176(lbs); 0.008
|
| 070. |
TA14097190
|
[1] |
MANUAL ASSEMBLY
|
0.0220(lbs); 0.010
|
