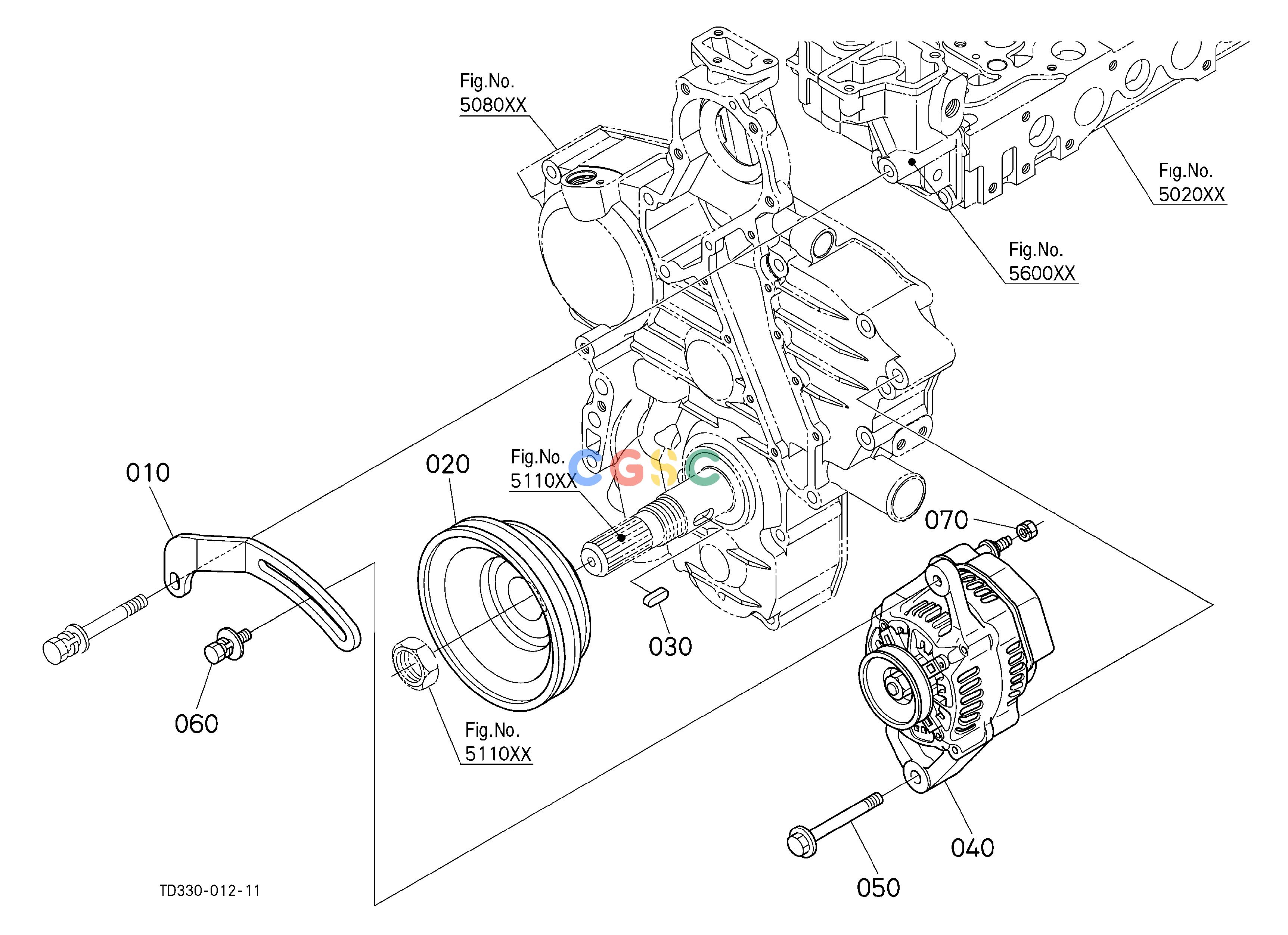

久保田零件查询A51502 ALTERNATOR [CA] [OLD] ## S.No.<=30709 [NOTE:ORDER BY ALL PARTS OF Fig.No.V12500.] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
639 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1E09064420
|
[1] |
STAY,DYNAMO
|
0.3960(lbs); 0.180
|
| 020. |
1A07474280
|
[1] |
PULLEY,FAN DRIVE
|
3.5640(lbs); 1.620
|
| 030. |
0571200720
|
[1] |
KEY, FEATHER
|
0.0176(lbs); 0.008
|
| 040. |
T127015682
|
[1] |
ALTERNATOR
|
7.0400(lbs); 3.200
|
| 040. |
5H66942500
|
[1] |
ASSY ALTERNATOR
|
7.0400(lbs); 3.200
|
| 050. |
0177451070
|
[1] |
BOLT,FLANGE
|
0.1100(lbs); 0.050
|
| 060. |
0112750830
|
[1] |
BOLT,W SEMS(LARGE WASHER)
|
0.0506(lbs); 0.023
|
| 070. |
1226492020
|
[1] |
NUT,SPRING WASHER M
|
0.1100(lbs); 0.050
|
