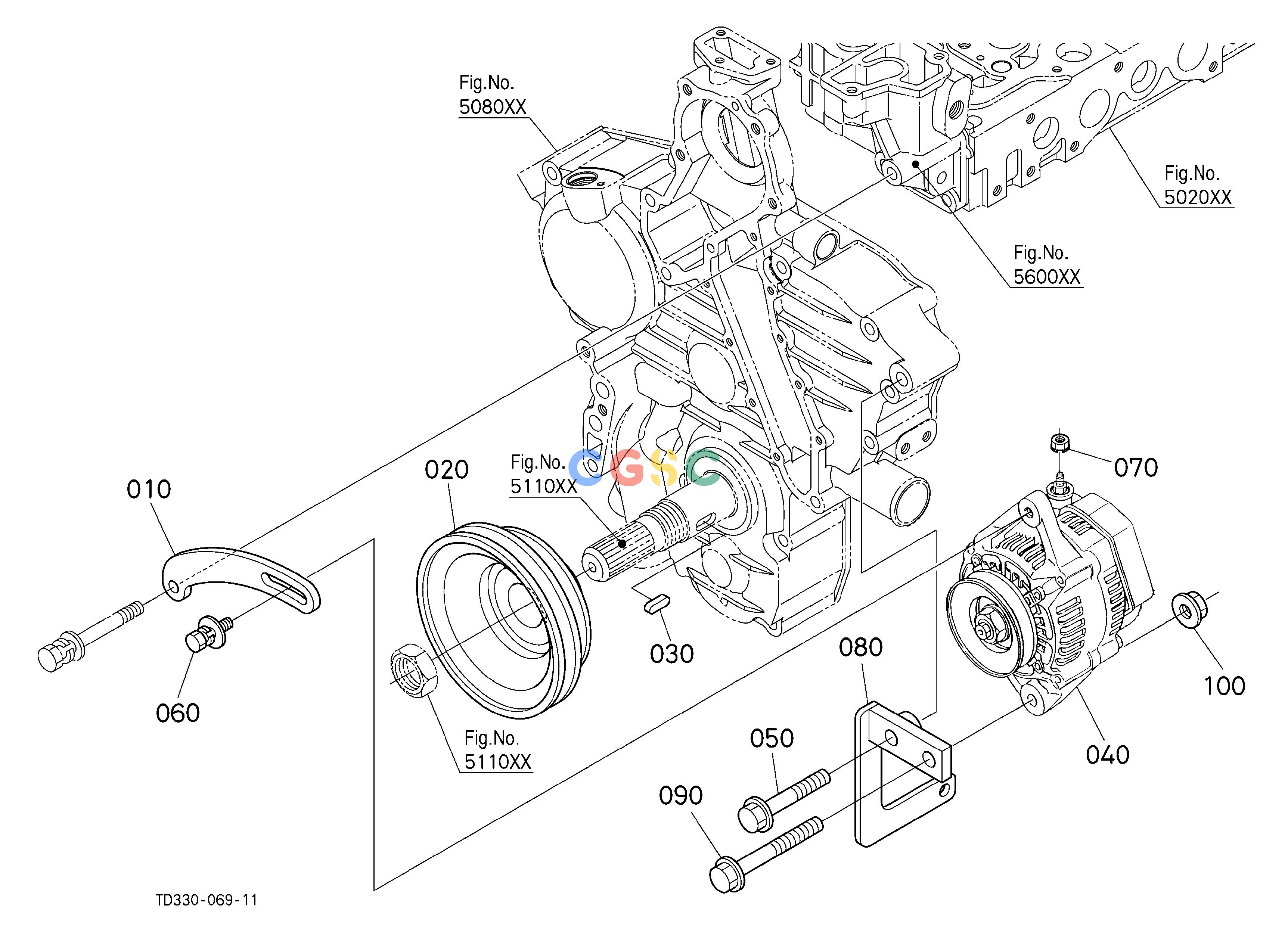

久保田零件查询A51503 ALTERNATOR [CA] [OLD] ## S.No.30710 to 40735 S.No.;30710 to 40735 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
907 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD35064420
|
[1] |
STAY(ALTERNATOR)
|
0.2860(lbs); 0.130
|
| 020. |
1A07474280
|
[1] |
PULLEY,FAN DRIVE
|
3.5640(lbs); 1.620
|
| 030. |
0571200720
|
[1] |
KEY, FEATHER
|
0.0176(lbs); 0.008
|
| 040. |
1926064010
|
[1] |
ASSY ALTERNATOR
|
11.2200(lbs); 5.100
|
| 040. |
1926064013
|
[1] |
ASSY ALTERNATOR
|
11.2200(lbs); 5.100
|
| 050. |
0177451060
|
[1] |
BOLT,FLANGE
|
0.0880(lbs); 0.040
|
| 060. |
0112750830
|
[1] |
BOLT,W SEMS(LARGE WASHER)
|
0.0506(lbs); 0.023
|
| 070. |
1226492020
|
[1] |
NUT,SPRING WASHER M
|
0.1100(lbs); 0.050
|
| 080. |
TD35064430
|
[1] |
STAY
|
0.5390(lbs); 0.245
|
| 090. |
0177451080
|
[1] |
BOLT,FLANGE
|
0.1100(lbs); 0.050
|
| 100. |
0277150100
|
[1] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
