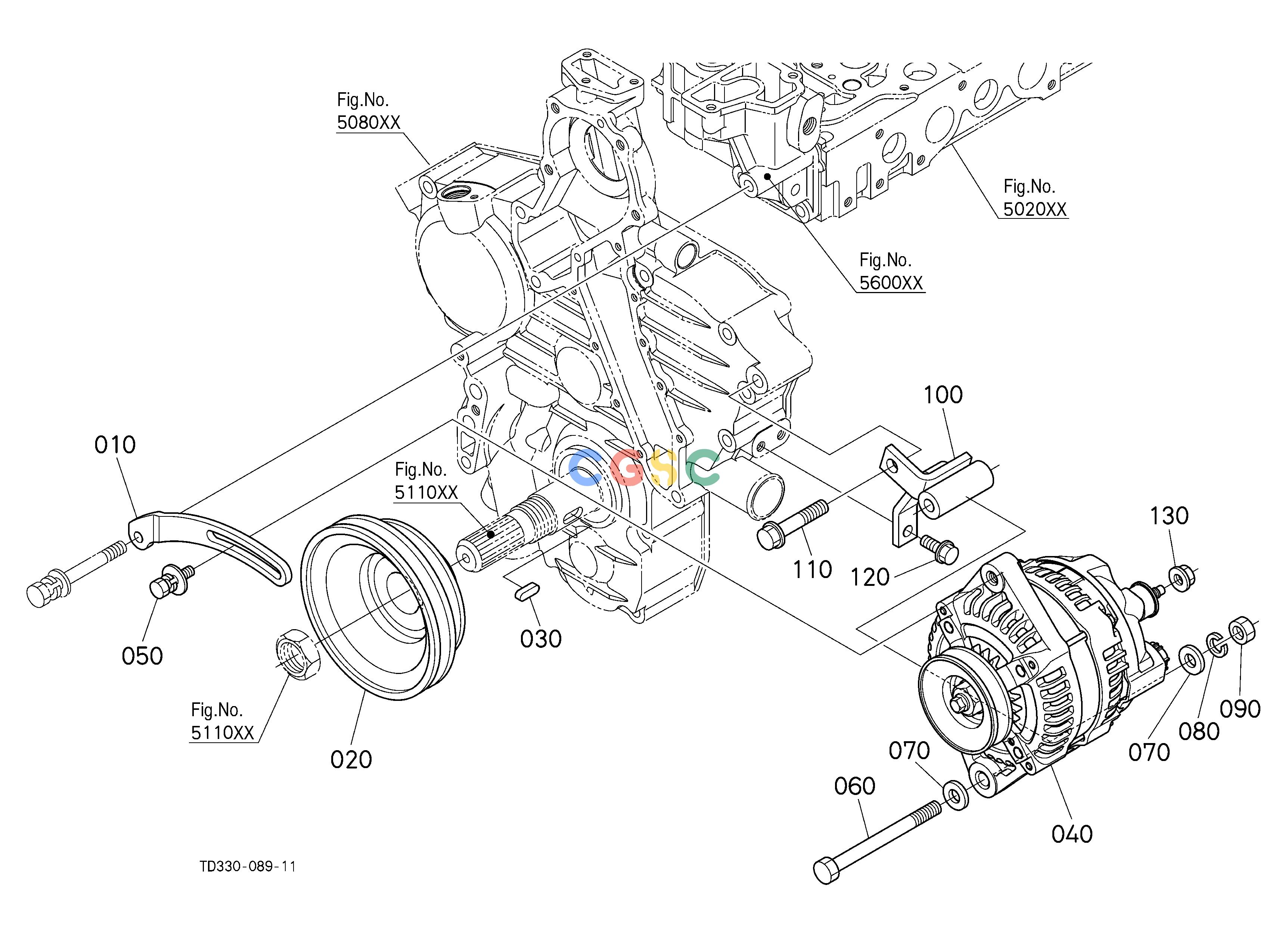

久保田零件查询A51504 ALTERNATOR [CA] [NEW] ## S.No.>=40736 S.No.;>=40736 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
278 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD35364420
|
[1] |
STAY(ALTERNATOR)
|
0.2640(lbs); 0.120
|
| 020. |
1A07474280
|
[1] |
PULLEY,FAN DRIVE
|
3.5640(lbs); 1.620
|
| 030. |
0571200720
|
[1] |
KEY, FEATHER
|
0.0176(lbs); 0.008
|
| 040. |
TD35315680
|
[1] |
ALTERNATOR,ASSY(130A)
|
13.2000(lbs); 6.000
|
| 050. |
0112750830
|
[1] |
BOLT,W SEMS(LARGE WASHER)
|
0.0506(lbs); 0.023
|
| 060. |
3R60016030
|
[1] |
HEX.BOLT
|
0.1584(lbs); 0.072
|
| 070. |
0401350100
|
[2] |
WASHER,PLAIN
|
0.0088(lbs); 0.004
|
| 080. |
0451250100
|
[1] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 090. |
0207650100
|
[1] |
NUT
|
0.0132(lbs); 0.006
|
| 100. |
TD35364430
|
[1] |
STAY
|
0.6600(lbs); 0.300
|
| 110. |
0177451050
|
[1] |
BOLT,FLANGE
|
0.0814(lbs); 0.037
|
| 120. |
0175450820
|
[1] |
BOLT,FLANGE
|
0.0330(lbs); 0.015
|
| 130. |
1642992010
|
[1] |
NUT WITH LOCK WASHER
|
0.0154(lbs); 0.007
|
