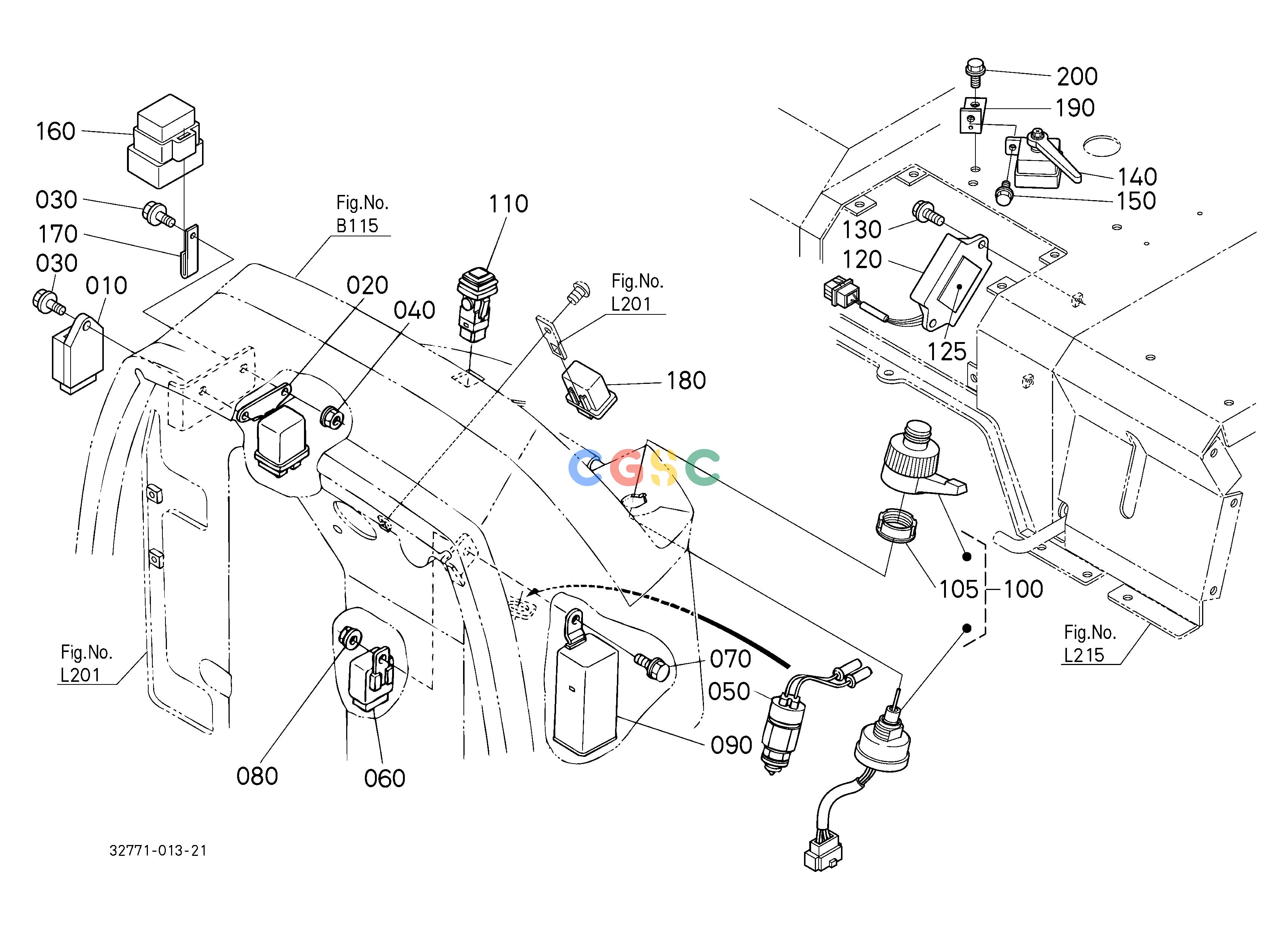

久保田零件查询B10202 SWITCH /RELAY [NEW TYPE] ## S.No.>=52527 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
1003 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1641565660
|
[1] |
CONTROLLER
|
0.1540(lbs); 0.070
|
| 020. |
1641565600
|
[1] |
RELAY GLOW
|
0.2200(lbs); 0.100
|
| 030. |
0175450616
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 040. |
0275150060
|
[2] |
NUT FLANGE
|
0.0110(lbs); 0.005
|
| 050. |
3715032240
|
[1] |
SWITCH SAFETY
|
0.2640(lbs); 0.120
|
| 060. |
3580075070
|
[1] |
RELAY STARTER
|
0.1760(lbs); 0.080
|
| 070. |
0175450616
|
[1] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 080. |
0275150060
|
[1] |
NUT FLANGE
|
0.0110(lbs); 0.005
|
| 090. |
3F24075430
|
[1] |
UNIT FLASHER
|
0.1320(lbs); 0.060
|
| 100. |
3741055120
|
[1] |
SWITCH COMBINATION
|
0.3300(lbs); 0.150
|
| 105. |
3599912660
|
[1] |
NUT RING
|
0.0330(lbs); 0.015
|
| 110. |
TA14030910
|
[1] |
SWITCH HAZARD
|
0.0044(lbs); 0.002
|
| 120. |
K351155222
|
[1] |
CONTROLLER
|
0.3960(lbs); 0.180
|
| 125. |
3G71071540
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 130. |
0175450620
|
[2] |
BOLT FLANGE
|
0.0154(lbs); 0.007
|
| 140. |
TD06047902
|
[1] |
SWITCH SEAT
|
0.0660(lbs); 0.030
|
| 150. |
0175450612
|
[1] |
BOLT FLANGE
|
0.0110(lbs); 0.005
|
| 160. |
T106033710
|
[1] |
RELAY GLOW
|
0.1430(lbs); 0.065
|
| 170. |
3277130810
|
[1] |
STAY RELAY
|
0.0220(lbs); 0.010
|
| 180. |
3691975030
|
[1] |
RELAY
|
0.0880(lbs); 0.040
|
| 180. |
H369075000
|
[1] |
RELAY
|
0.0880(lbs); 0.040
|
| 190. |
3277147290
|
[1] |
STAY SEAT SWITCH
|
0.0660(lbs); 0.030
|
| 200. |
0175450816
|
[2] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
