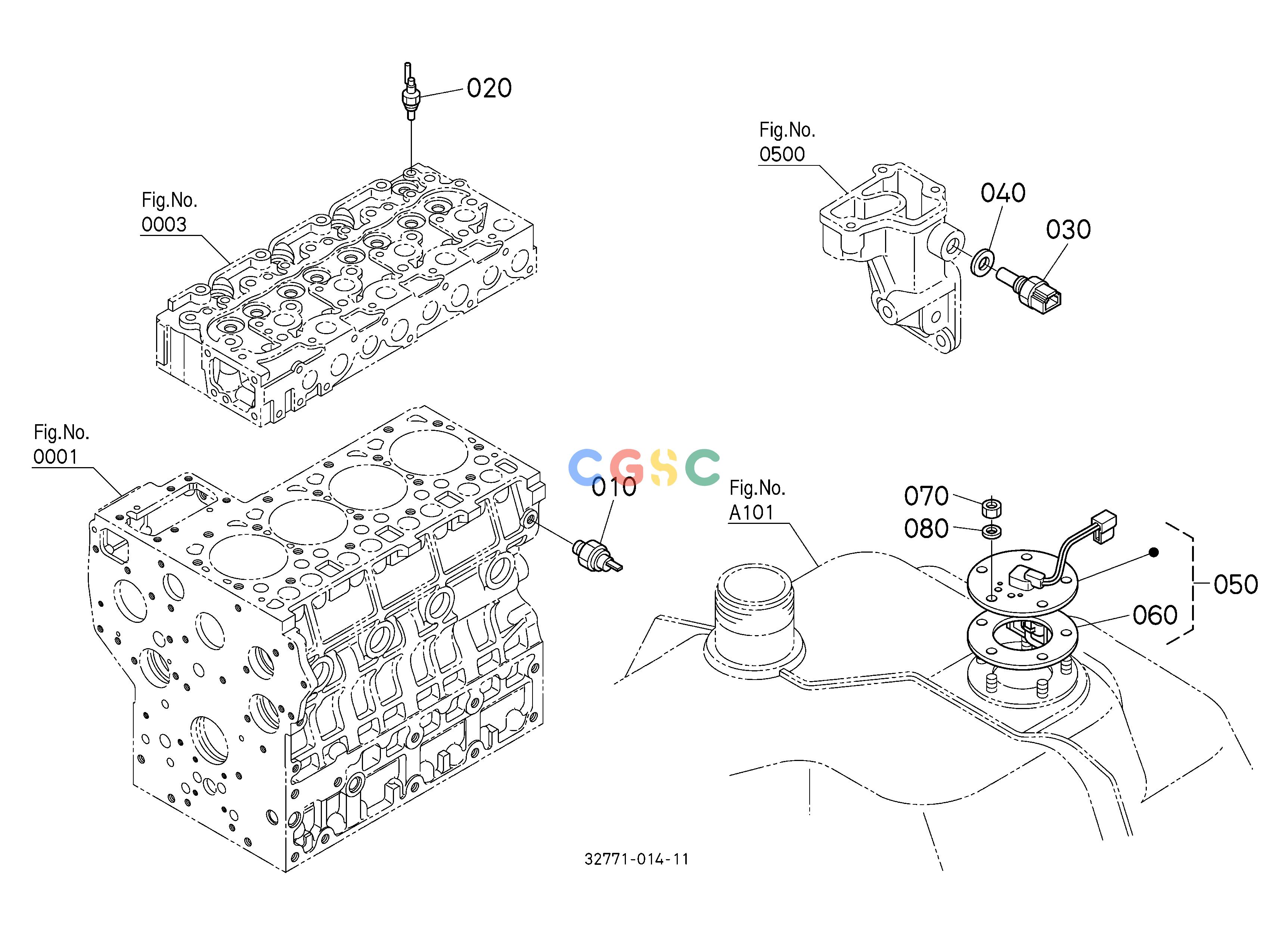

久保田零件查询B10300 SWITCH /SENSOR ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
338 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1553139010
|
[1] |
SWITCH,OIL
|
0.0704(lbs); 0.032
|
| 010. |
1A02439010
|
[1] |
SWITCH(OIL)
|
0.0770(lbs); 0.035
|
| 020. |
3135132830
|
[1] |
THERMO UNIT
|
0.0440(lbs); 0.020
|
| 030. |
1641583040
|
[1] |
SENSOR,THERMO
|
0.0660(lbs); 0.030
|
| 040. |
0481100100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0481600100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
3455031203
|
[1] |
GAUGE,FUEL,ASSY
|
0.9130(lbs); 0.415
|
| 060. |
6798054740
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
| 070. |
0205450050
|
[5] |
HEX.NUT
|
0.0044(lbs); 0.002
|
| 080. |
0451260050
|
[5] |
WASHER,SPRING
|
0.0044(lbs); 0.002
|
