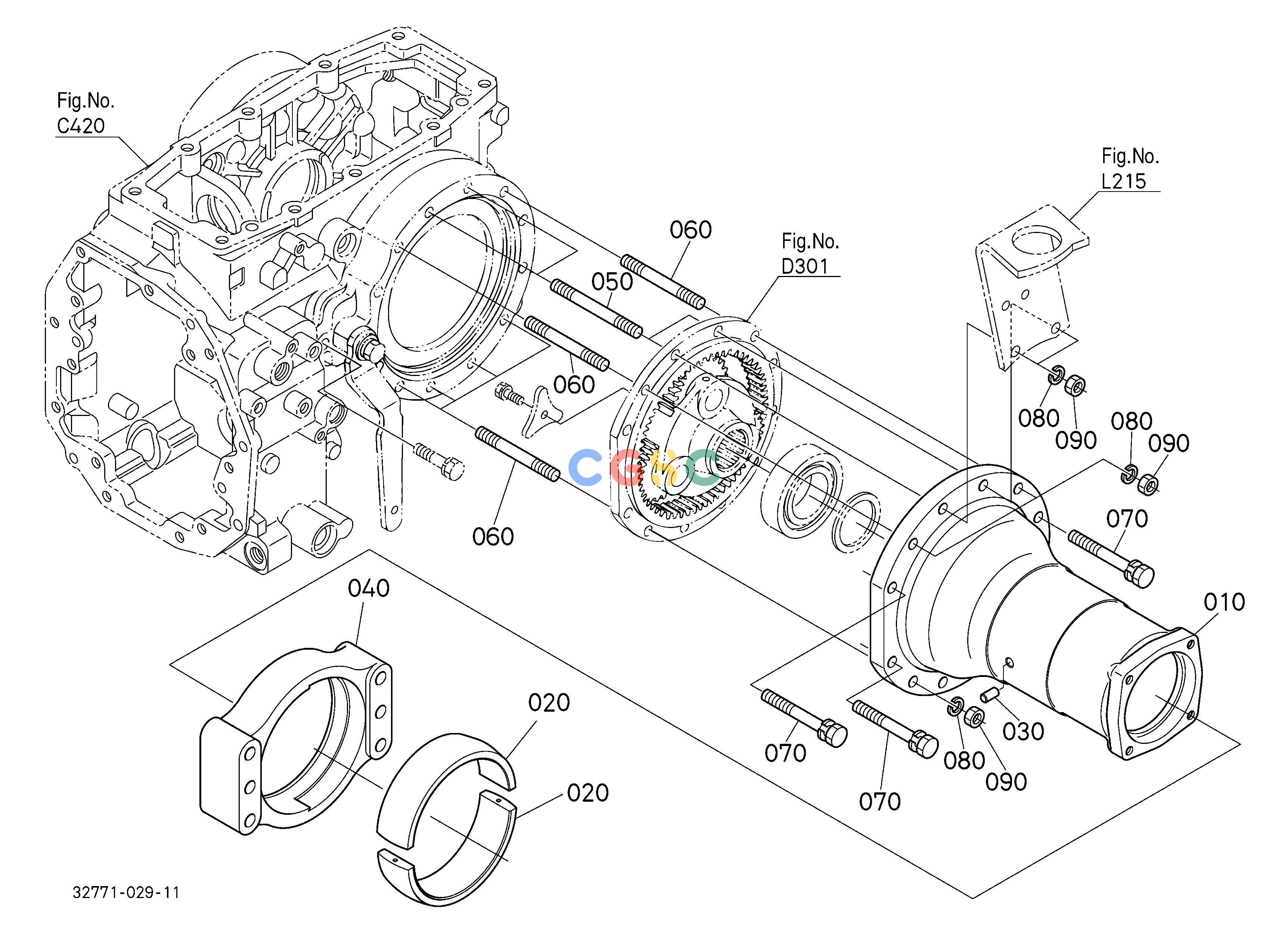

久保田零件查询C42200 REAR AXLE CASE CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
886 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3277127330
|
[2] |
CASE REAR AXLE
|
31.4600(lbs); 14.300
|
| 020. |
3277128110
|
[4] |
COLLAR MAIN FRAME
|
1.8590(lbs); 0.845
|
| 030. |
0501201018
|
[2] |
PIN STRAIGHT
|
0.0264(lbs); 0.012
|
| 040. |
3277128100
|
[2] |
HOLDER MAIN FRAME
|
12.9800(lbs); 5.900
|
| 050. |
3135128172
|
[4] |
STUD
|
0.2310(lbs); 0.105
|
| 060. |
0157451200
|
[12] |
STUD
|
0.2200(lbs); 0.100
|
| 070. |
0113351200
|
[8] |
BOLT
|
0.2090(lbs); 0.095
|
| 080. |
0451260120
|
[16] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 090. |
3534027360
|
[16] |
NUT
|
0.0330(lbs); 0.015
|
