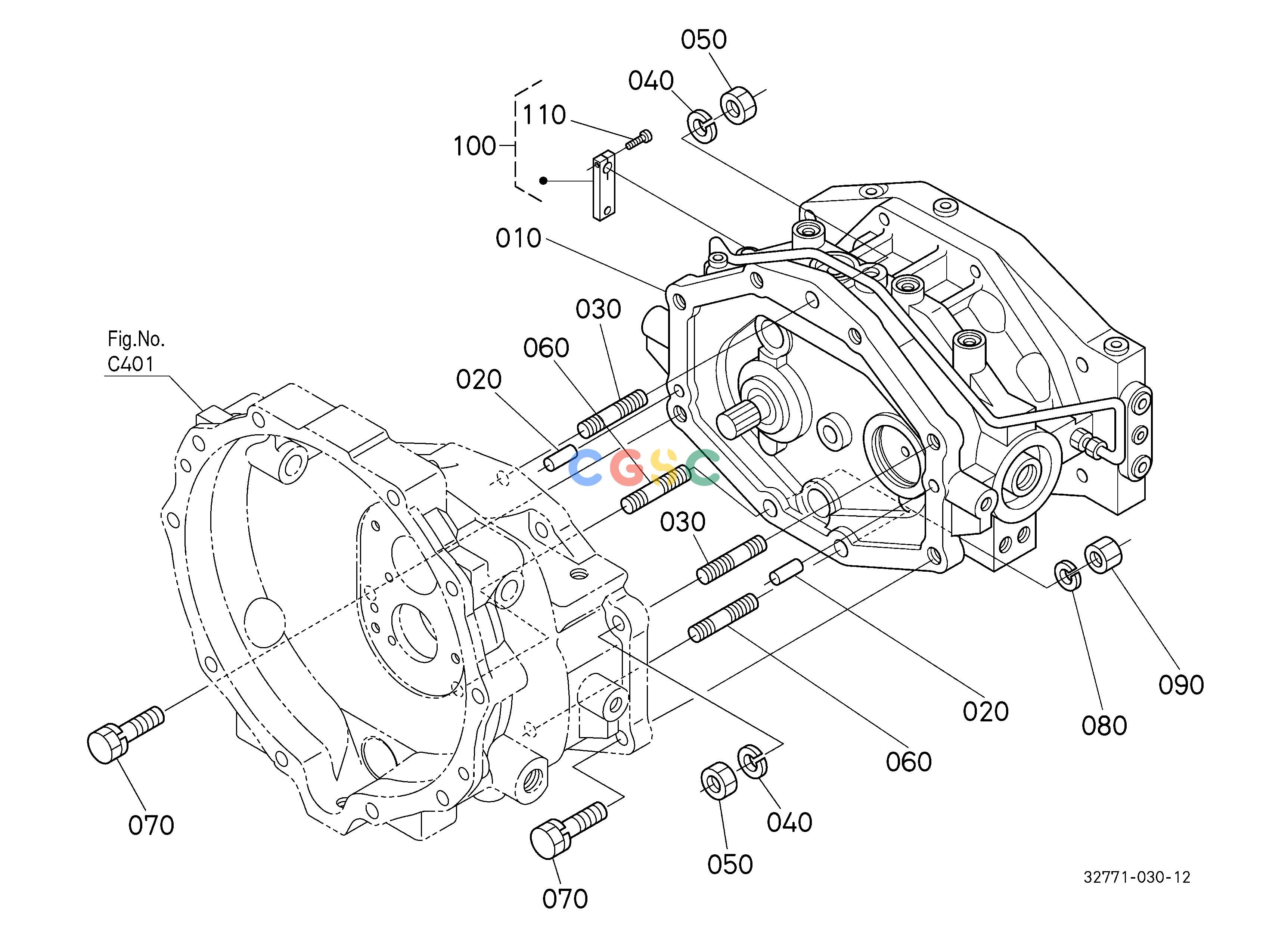

久保田零件查询C44000 HST ## NOTE:ORDER BY REF.No.010 and 100(32771-5955-0)NEW PARTS. CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
477 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3277158000
|
[1] |
ASSY HST
|
139.7000(lbs); 63.50
|
| 010. |
TA24058005
|
[1] |
ASSY HST
|
140.8000(lbs); 64.00
|
| 020. |
0501201018
|
[2] |
PIN STRAIGHT
|
0.0264(lbs); 0.012
|
| 030. |
TA24050280
|
[5] |
STUD
|
0.1452(lbs); 0.066
|
| 040. |
0451260140
|
[5] |
WASHER SPRING
|
0.0176(lbs); 0.008
|
| 050. |
TA24050240
|
[5] |
NUT
|
0.0198(lbs); 0.009
|
| 060. |
TA24050210
|
[2] |
STUD
|
0.1562(lbs); 0.071
|
| 070. |
0113851240
|
[2] |
BOLT
|
0.1012(lbs); 0.046
|
| 080. |
0451260120
|
[2] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 090. |
3534027360
|
[2] |
NUT
|
0.0330(lbs); 0.015
|
| 100. |
3277159550
|
[1] |
ASSY LEVER REGULATOR
|
0.1650(lbs); 0.075
|
| 100. |
TA24059550
|
[1] |
ASSY LEVER REGULATOR
|
0.1100(lbs); 0.050
|
| 110. |
0135010520
|
[1] |
BOLT HEX-SOC-HD
|
0.0088(lbs); 0.004
|
