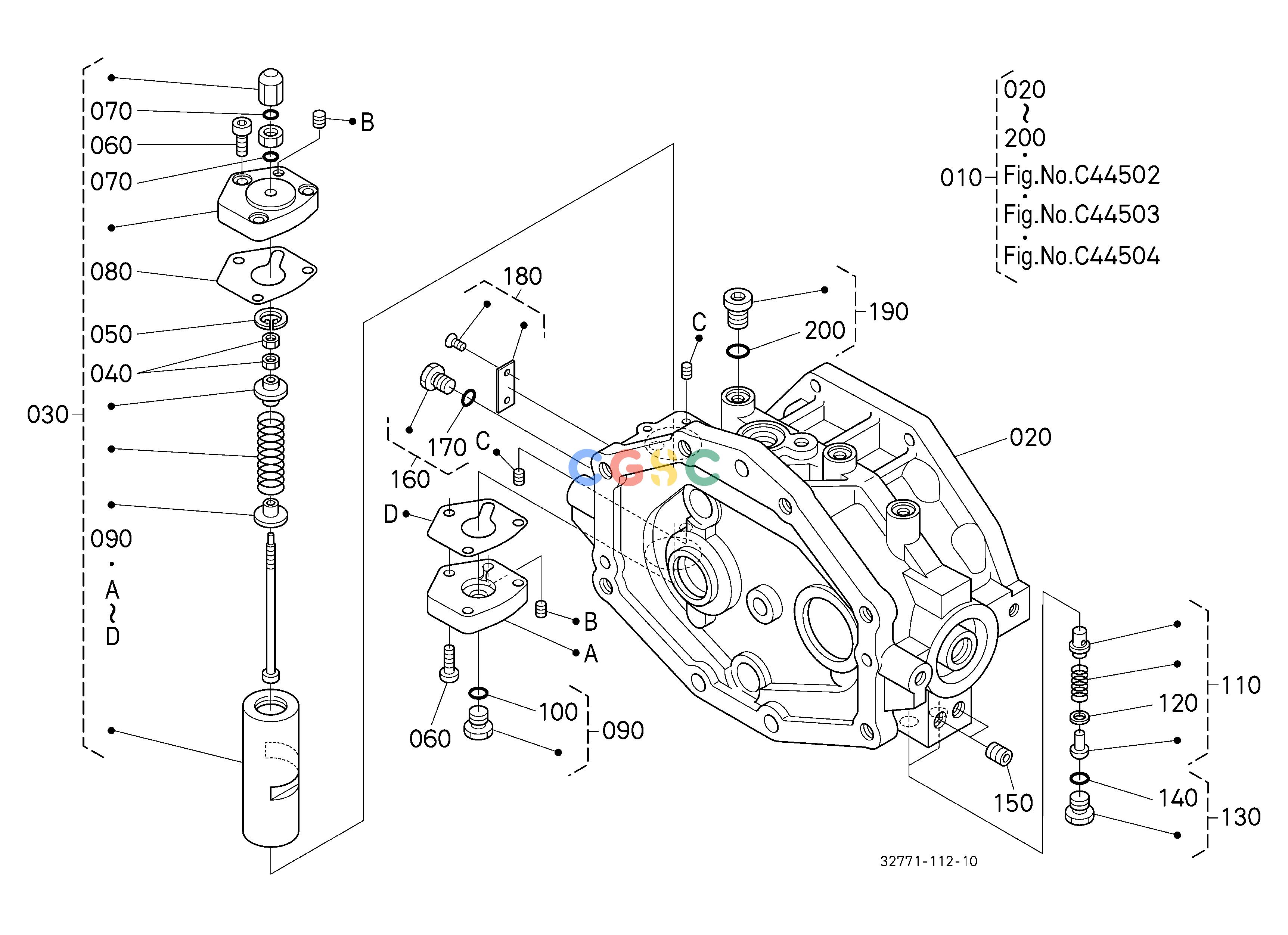

久保田零件查询C44501 HST (PISTON/PLUG) [COMPONENT PARTS] ## NOTE:ORDER BY REF.No.010 and Fig.No.C440 REF.No.100(32771-5955-0)NEW PARTS. CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
858 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3277158000
|
[1] |
ASSY HST
|
139.7000(lbs); 63.50
|
| 010. |
TA24058005
|
[1] |
ASSY HST
|
140.8000(lbs); 64.00
|
| 020. |
TA24058114
|
[1] |
CASE HST
|
59.4000(lbs); 27.000
|
| 030. |
TA24059100
|
[1] |
ASSY PISTON
|
5.8080(lbs); 2.640
|
| 040. |
0205250080
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 050. |
0461100280
|
[1] |
CIR CLIP INTERNAL
|
0.0044(lbs); 0.002
|
| 060. |
0131110825
|
[6] |
BOLT HEX-SOC-HD
|
0.0440(lbs); 0.020
|
| 070. |
0481000110
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
0481700110
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
TA24059210
|
[2] |
GASKET
|
0.0088(lbs); 0.004
|
| 090. |
TA24058310
|
[1] |
ASSY PLUG
|
0.0396(lbs); 0.018
|
| 100. |
0481100110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
0481600110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 110. |
TA24059600
|
[2] |
ASSY VALVE LOW
|
0.1100(lbs); 0.050
|
| 120. |
TA24059630
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 120. |
TA24059640
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 130. |
TA24058210
|
[2] |
ASSY PLUG
|
0.0572(lbs); 0.026
|
| 140. |
0481000140
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 140. |
0481700140
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 150. |
TA24058220
|
[2] |
PLUG
|
0.0220(lbs); 0.010
|
| 160. |
TA24058290
|
[1] |
ASSY PLUG
|
0.0242(lbs); 0.011
|
| 170. |
0481000080
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 170. |
0481700080
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 180. |
3277159700
|
[1] |
ASSY PLATE
|
0.0066(lbs); 0.003
|
| 180. |
TA24059700
|
[1] |
ASSY PLATE
|
0.0066(lbs); 0.003
|
| 190. |
TA24058310
|
[3] |
ASSY PLUG
|
0.0396(lbs); 0.018
|
| 200. |
0481000110
|
[3] |
O RING
|
0.0022(lbs); 0.001
|
| 200. |
0481700110
|
[3] |
O RING
|
0.0022(lbs); 0.001
|
