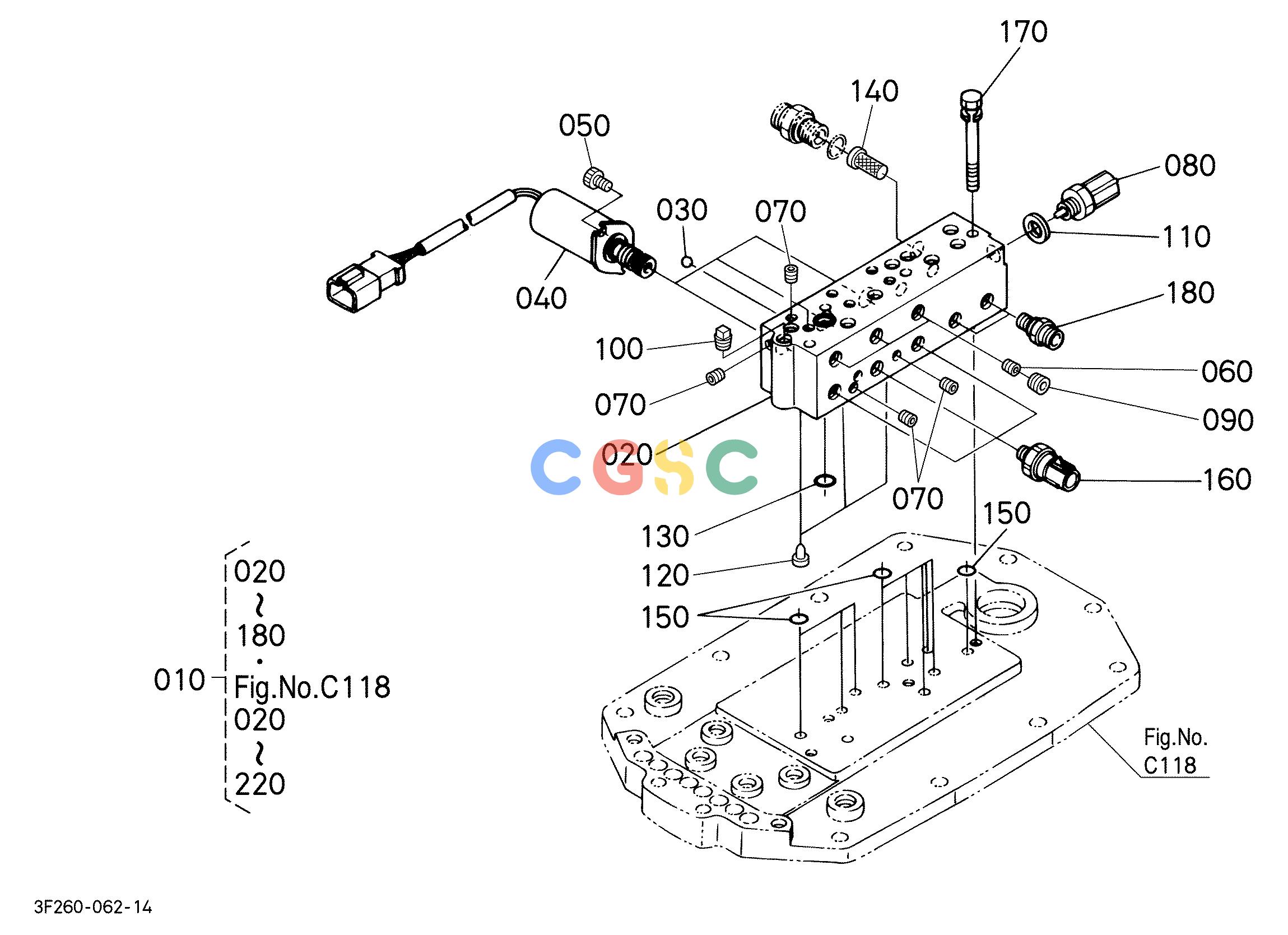

久保田零件查询C11900 POWER SHIFT VALVE (UPPER) [COMPONENT PARTS] CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
959 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3F25023103
|
[1] |
ASSY VALVE POWER
|
34.9800(lbs); 15.900
|
| 010. |
3F25023106
|
[1] |
ASSY VALVE POWER
|
37.4000(lbs); 17.000
|
| 010. |
3F25023107
|
[1] |
ASSY VALVE POWER
|
35.2000(lbs); 16.000
|
| 010. |
3F25023108
|
[1] |
ASSY VALVE POWER
|
35.2000(lbs); 16.000
|
| 010. |
3F25023109
|
[1] |
ASSY VALVE POWER
|
35.2000(lbs); 16.000
|
| 010. |
3F25023110
|
[1] |
ASSY VALVE POWER
|
0.0000(lbs); 0.000
|
| 020. |
3F75023060
|
[1] |
CASE VALVE
|
5.8300(lbs); 2.650
|
| 030. |
0771503207
|
[1] |
BALL
|
0.0022(lbs); 0.001
|
| 040. |
3F75023802
|
[3] |
VALVE
|
0.8140(lbs); 0.370
|
| 050. |
0135010508
|
[6] |
BOLT HEX-SOC-HD
|
0.0440(lbs); 0.020
|
| 060. |
3375040320
|
[3] |
ORIFICE
|
0.0022(lbs); 0.001
|
| 070. |
3242067380
|
[10] |
PLUG
|
0.0110(lbs); 0.005
|
| 080. |
1566883040
|
[1] |
SENSOR WATER TEMP.
|
0.0880(lbs); 0.040
|
| 090. |
6751136640
|
[3] |
PLUG
|
0.0066(lbs); 0.003
|
| 100. |
3374027430
|
[1] |
PLUG
|
0.0154(lbs); 0.007
|
| 110. |
0471701200
|
[1] |
WASHER WITH RUBBER
|
0.0044(lbs); 0.002
|
| 120. |
3F75023710
|
[3] |
FILTER
|
0.0044(lbs); 0.002
|
| 130. |
0481500120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 130. |
0481700120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 140. |
3F75023760
|
[1] |
FILTER MAIN
|
0.0022(lbs); 0.001
|
| 150. |
0481500090
|
[11] |
O RING
|
0.0022(lbs); 0.001
|
| 150. |
0481700090
|
[11] |
O RING
|
0.0022(lbs); 0.001
|
| 160. |
3F25075562
|
[3] |
SWITCH
|
0.0660(lbs); 0.030
|
| 160. |
3M75075560
|
[3] |
SWITCH
|
0.0880(lbs); 0.040
|
| 170. |
0102350660
|
[4] |
BOLT
|
0.0220(lbs); 0.010
|
| 180. |
0601150812
|
[2] |
JOINT PIPE
|
0.0660(lbs); 0.030
|
| 180. |
0601150813
|
[2] |
JOINT PIPE
|
0.0528(lbs); 0.024
|
