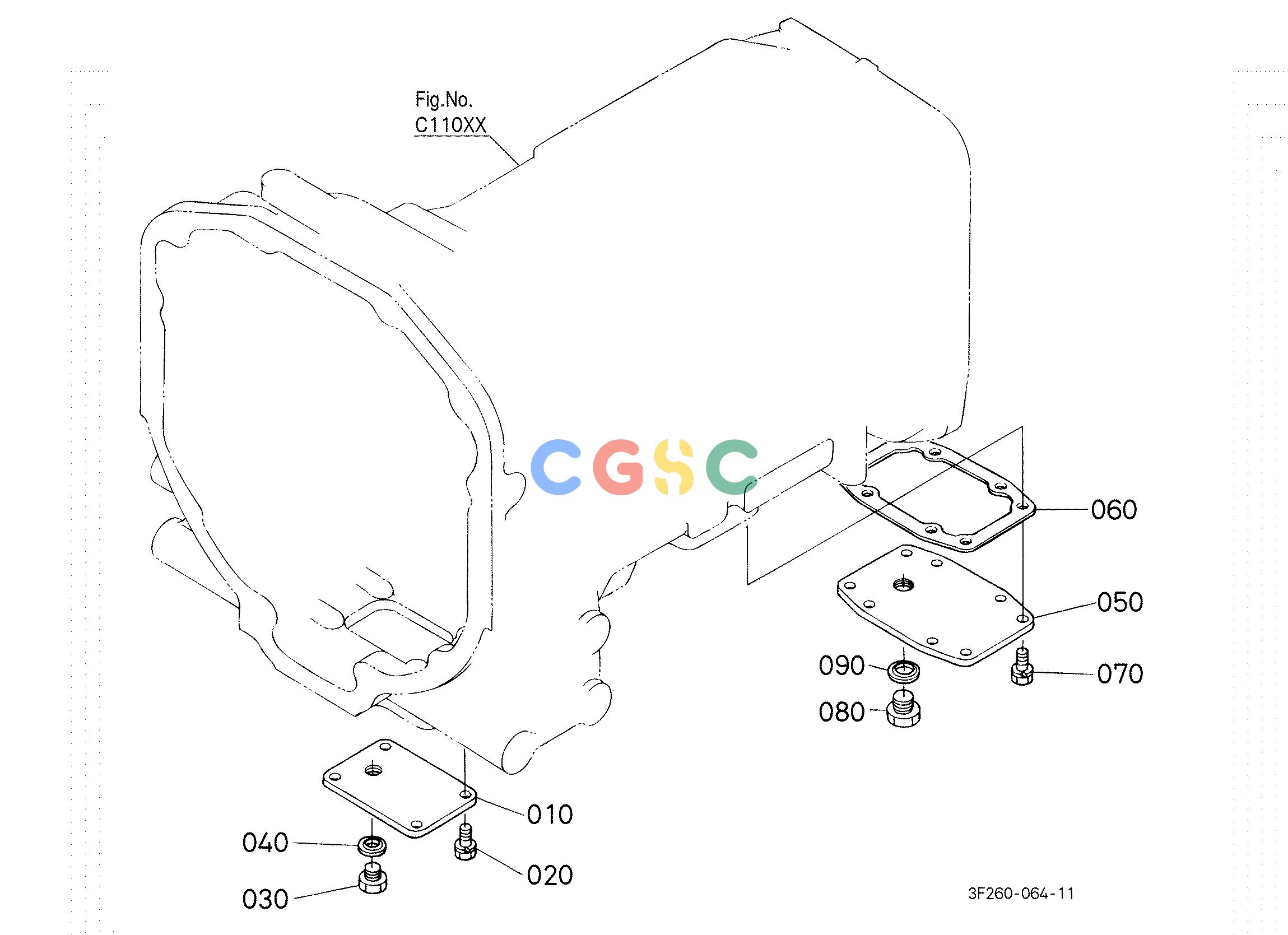

久保田零件查询C12002 CLUTCH HOUSING COVER CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
875 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3374021230
|
[1] |
COVER HOUSING
|
1.1220(lbs); 0.510
|
| 020. |
0113351020
|
[4] |
BOLT
|
0.0440(lbs); 0.020
|
| 030. |
0633135014
|
[1] |
PLUG
|
0.0660(lbs); 0.030
|
| 040. |
0471701400
|
[1] |
WASHER WITH RUBBER
|
0.0044(lbs); 0.002
|
| 050. |
3633021210
|
[1] |
COVER HOUSING
|
1.8920(lbs); 0.860
|
| 060. |
3620021220
|
[1] |
GASKET
|
0.0154(lbs); 0.007
|
| 060. |
3620021222
|
[1] |
GASKET
|
0.1320(lbs); 0.060
|
| 070. |
0113351020
|
[8] |
BOLT
|
0.0440(lbs); 0.020
|
| 080. |
0633135020
|
[1] |
PLUG
|
0.1496(lbs); 0.068
|
| 090. |
0471702000
|
[1] |
WASHER WITH RUBBER
|
0.0088(lbs); 0.004
|
