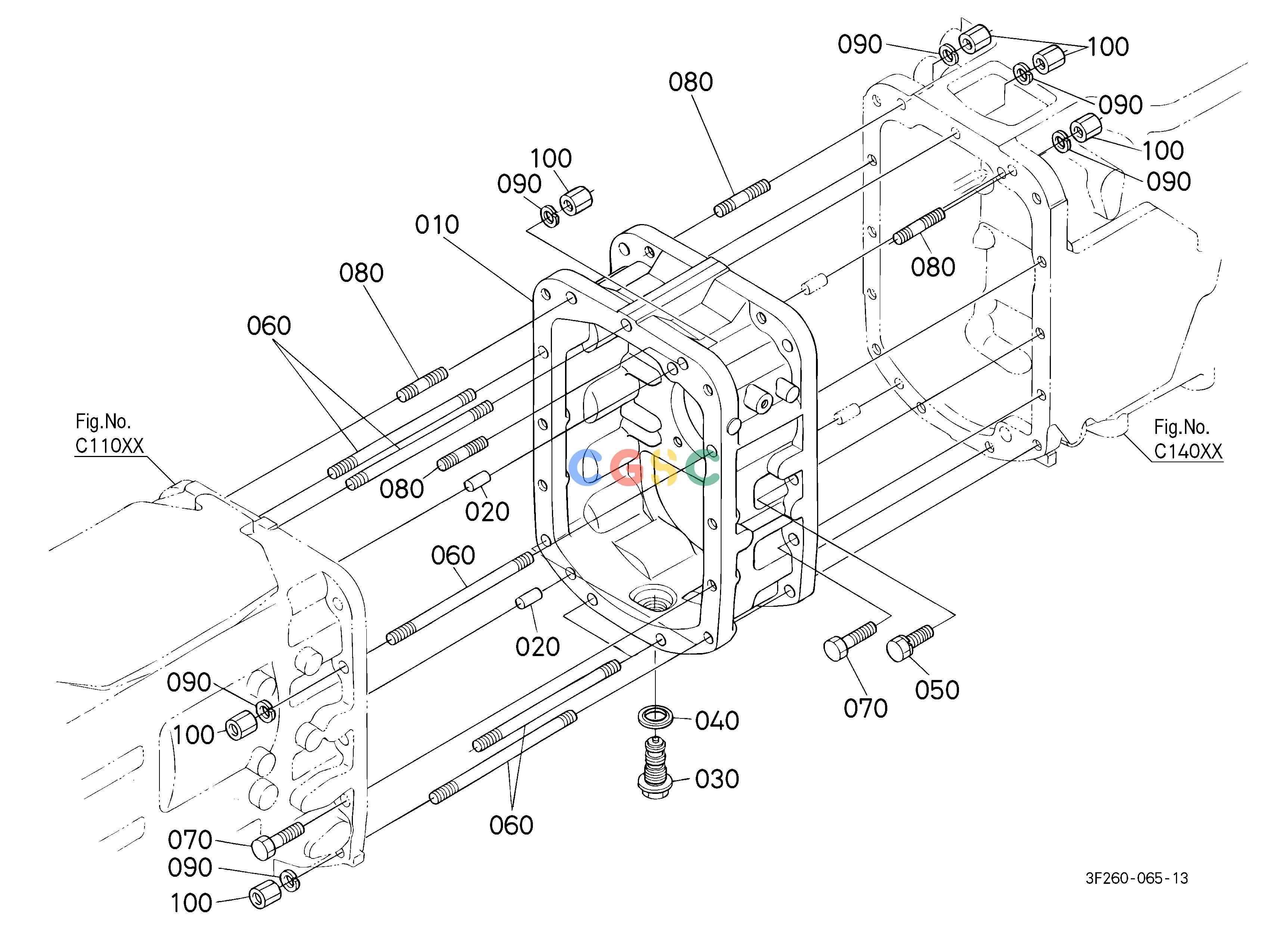

久保田零件查询C13000 MID CASE CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
867 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3F87021950
|
[1] |
CASE MID
|
58.9600(lbs); 26.800
|
| 010. |
3F87021954
|
[1] |
CASE MID
|
60.2360(lbs); 27.380
|
| 020. |
0501201325
|
[2] |
PIN STRAIGHT
|
0.0616(lbs); 0.028
|
| 030. |
3374082660
|
[1] |
PLUG MAGNET
|
0.5060(lbs); 0.230
|
| 040. |
0471702650
|
[1] |
WASHER WITH RUBBER
|
0.0220(lbs); 0.010
|
| 050. |
0113351240
|
[1] |
BOLT
|
0.0990(lbs); 0.045
|
| 050. |
0113851240
|
[1] |
BOLT
|
0.1012(lbs); 0.046
|
| 060. |
3386021810
|
[7] |
STUD
|
0.3960(lbs); 0.180
|
| 070. |
0113351245
|
[11] |
BOLT
|
0.1210(lbs); 0.055
|
| 070. |
0113851245
|
[11] |
BOLT
|
0.1122(lbs); 0.051
|
| 080. |
0157451245
|
[4] |
STUD
|
0.1122(lbs); 0.051
|
| 090. |
0451260120
|
[11] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 100. |
0217650120
|
[11] |
NUT
|
0.0220(lbs); 0.010
|
| 100. |
3534027360
|
[11] |
NUT
|
0.0330(lbs); 0.015
|
