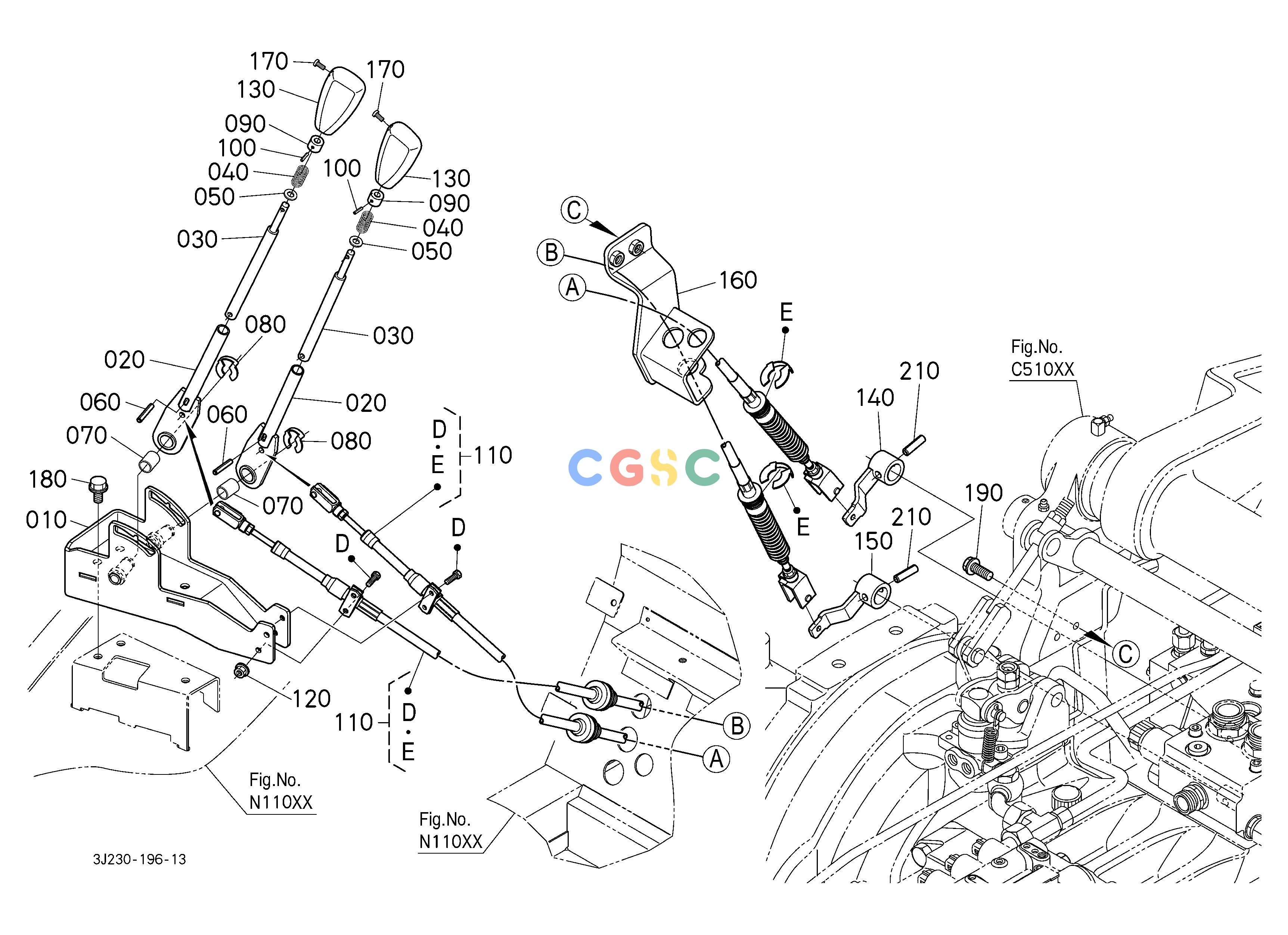

久保田零件查询E53000 PTO GEAR SHIFT LEVER SHIFT LEVEREPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
489 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3J03070222
|
[1] |
BRACKET(LEVER,PTO)
|
3.3000(lbs); 1.500
|
| 010. |
3J03070223
|
[1] |
BRACKET(PTO)
|
3.3440(lbs); 1.520
|
| 020. |
3J03070233
|
[2] |
LEVER(PTO)
|
0.3850(lbs); 0.175
|
| 030. |
3J03070242
|
[2] |
SHAFT(PTO)
|
0.1650(lbs); 0.075
|
| 040. |
3J02980690
|
[2] |
SPRING(LEVER,PTO)
|
0.0022(lbs); 0.001
|
| 050. |
0401550060
|
[2] |
WASHER,PLAIN
|
0.0132(lbs); 0.006
|
| 060. |
0541100425
|
[2] |
PIN,SPRING
|
0.0022(lbs); 0.001
|
| 070. |
3J02796750
|
[2] |
BUSHING(14)
|
0.0044(lbs); 0.002
|
| 080. |
3J02863880
|
[2] |
CLIP(14 MBO 09)
|
0.0022(lbs); 0.001
|
| 090. |
3J03070252
|
[2] |
COLLAR
|
0.0220(lbs); 0.010
|
| 100. |
0541100314
|
[2] |
PIN,SPRING
|
0.0022(lbs); 0.001
|
| 110. |
3J03064030
|
[2] |
WIRE(PTO)
|
1.1440(lbs); 0.520
|
| 120. |
3J09929837
|
[2] |
NUT(EN 1661,M5,C10)
|
0.0044(lbs); 0.002
|
| 130. |
3J02980620
|
[2] |
GRIP(LEVER,PTO)
|
0.1100(lbs); 0.050
|
| 140. |
3J02863930
|
[1] |
LEVER(PTO)
|
0.2640(lbs); 0.120
|
| 140. |
3J02863932
|
[1] |
LEVER(PTO)
|
0.2750(lbs); 0.125
|
| 150. |
3J02863980
|
[1] |
LEVER(PTO)
|
0.2706(lbs); 0.123
|
| 150. |
3J02863982
|
[1] |
LEVER(PTO)
|
0.2684(lbs); 0.122
|
| 160. |
3J03064000
|
[1] |
BRACKET(PTO,CABLE)
|
1.8920(lbs); 0.860
|
| 170. |
0305450408
|
[2] |
SCREW,PAN HEAD(PHILLIPS)
|
0.0022(lbs); 0.001
|
| 180. |
0175450816
|
[3] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 190. |
0175450825
|
[2] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 210. |
0541100830
|
[2] |
PIN,SPRING
|
0.0154(lbs); 0.007
|
