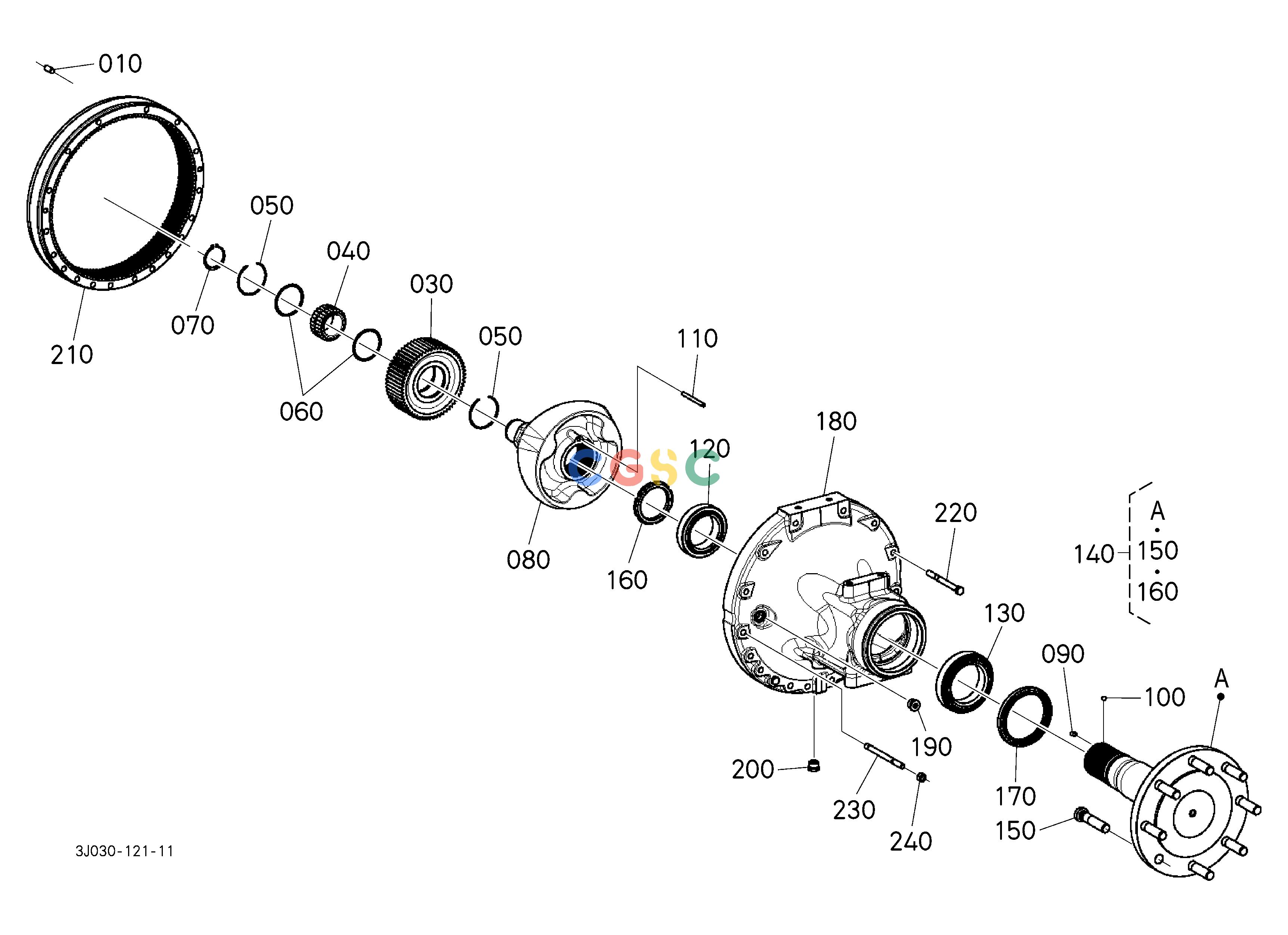

久保田零件查询F70002 REAR AXLE [TRANSAXLE COMPONENT] [FLANGE TYPE AXLE] REAR AXLE/BRAKEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
161 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3J08023180
|
[2] |
PIN,STRAIGHT(12X24)
|
0.0440(lbs); 0.020
|
| 030. |
3J08029990
|
[6] |
GEAR,ASSY(PLANETARY)
|
19.8440(lbs); 9.020
|
| 040. |
3J08028110
|
[6] |
BEARING(CYLINDER ROLLER,2)
|
1.3838(lbs); 0.629
|
| 050. |
3J08023010
|
[12] |
RING(SNAP,5)
|
0.0242(lbs); 0.011
|
| 060. |
3J08025290
|
[12] |
WASHER(THRUST,1)
|
0.0176(lbs); 0.008
|
| 070. |
3J08022900
|
[6] |
CIRCLIP,EXT(55X2)
|
0.0220(lbs); 0.010
|
| 080. |
3J08030000
|
[2] |
GEAR(PLANET CARRIER)
|
39.2260(lbs); 17.830
|
| 090. |
3J08023290
|
[2] |
SCREW,SET(M10X16)
|
0.0110(lbs); 0.005
|
| 100. |
3J08023930
|
[2] |
BALL(10)
|
0.0088(lbs); 0.004
|
| 110. |
3J08023270
|
[2] |
PIN,SPRING(8X90)
|
0.0484(lbs); 0.022
|
| 120. |
3J08028490
|
[2] |
BEARING(TR,85X130X29)
|
2.8512(lbs); 1.296
|
| 130. |
3J08028070
|
[2] |
BEARING(TR,100X150X32)
|
4.0480(lbs); 1.840
|
| 140. |
3J08029290
|
[2] |
SHAFT(REAR AXLE,1)
|
93.2360(lbs); 42.380
|
| 150. |
3J08030240
|
[16] |
STUD(WHEEL)
|
0.7480(lbs); 0.340
|
| 160. |
3J08024540
|
[2] |
NUT,SLOTTED(M85X1.5)
|
0.5126(lbs); 0.233
|
| 170. |
3J08031980
|
[2] |
SEAL(SHAFT,5)
|
0.5346(lbs); 0.243
|
| 180. |
3J08030330
|
[2] |
AXLE(OUTPUT ASSY,3)
|
132.0000(lbs); 60.00
|
| 190. |
3J08031930
|
[4] |
PLUG(M22X1.5,1)
|
0.1056(lbs); 0.048
|
| 200. |
3J08031950
|
[2] |
PLUG(M22X1.5,2)
|
0.1056(lbs); 0.048
|
| 210. |
3J08030030
|
[2] |
GEAR(RING)
|
42.1740(lbs); 19.170
|
| 220. |
3J08024090
|
[32] |
BOLT(M12X130)
|
0.2640(lbs); 0.120
|
| 230. |
3J08024200
|
[4] |
STUD(M12X140)
|
0.2728(lbs); 0.124
|
| 240. |
3J08024610
|
[4] |
NUT(M12)
|
0.0330(lbs); 0.015
|
