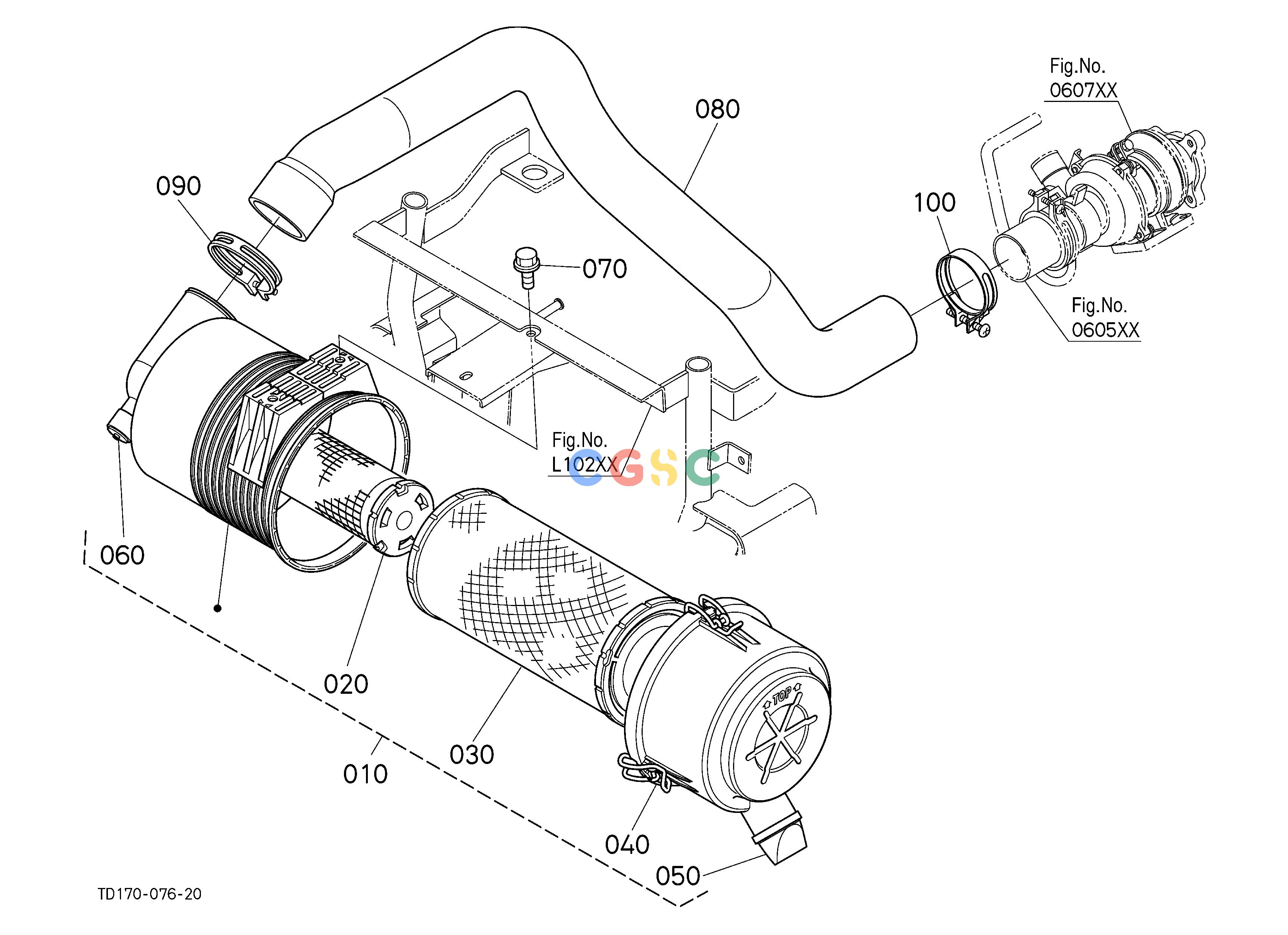

久保田零件查询060402 AIR CLEANER [NEW] ## S.No.;A:>=50046,B:>=50057,C:>=50123 ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
409 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD17016300
|
[1] |
ASSY CLEANER,AIR(W)
|
5.9400(lbs); 2.700
|
| 020. |
3A11119130
|
[1] |
ELEMENT,INNER
|
0.7370(lbs); 0.335
|
| 030. |
5980026110
|
[1] |
ASSY ELEMENT,A/C
|
2.0240(lbs); 0.920
|
| 040. |
3F75011160
|
[1] |
ASSY COVER
|
0.7260(lbs); 0.330
|
| 050. |
5970026140
|
[1] |
VALVE
|
0.0594(lbs); 0.027
|
| 060. |
1512611090
|
[1] |
ASSY INDICATOR
|
0.0550(lbs); 0.025
|
| 070. |
0175450816
|
[2] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 080. |
TD17016340
|
[1] |
HOSE
|
2.7500(lbs); 1.250
|
| 090. |
T117035560
|
[1] |
CLAMP,HOSE
|
0.0880(lbs); 0.040
|
| 100. |
0931889069
|
[1] |
CLAMP,HOSE
|
0.0770(lbs); 0.035
|
