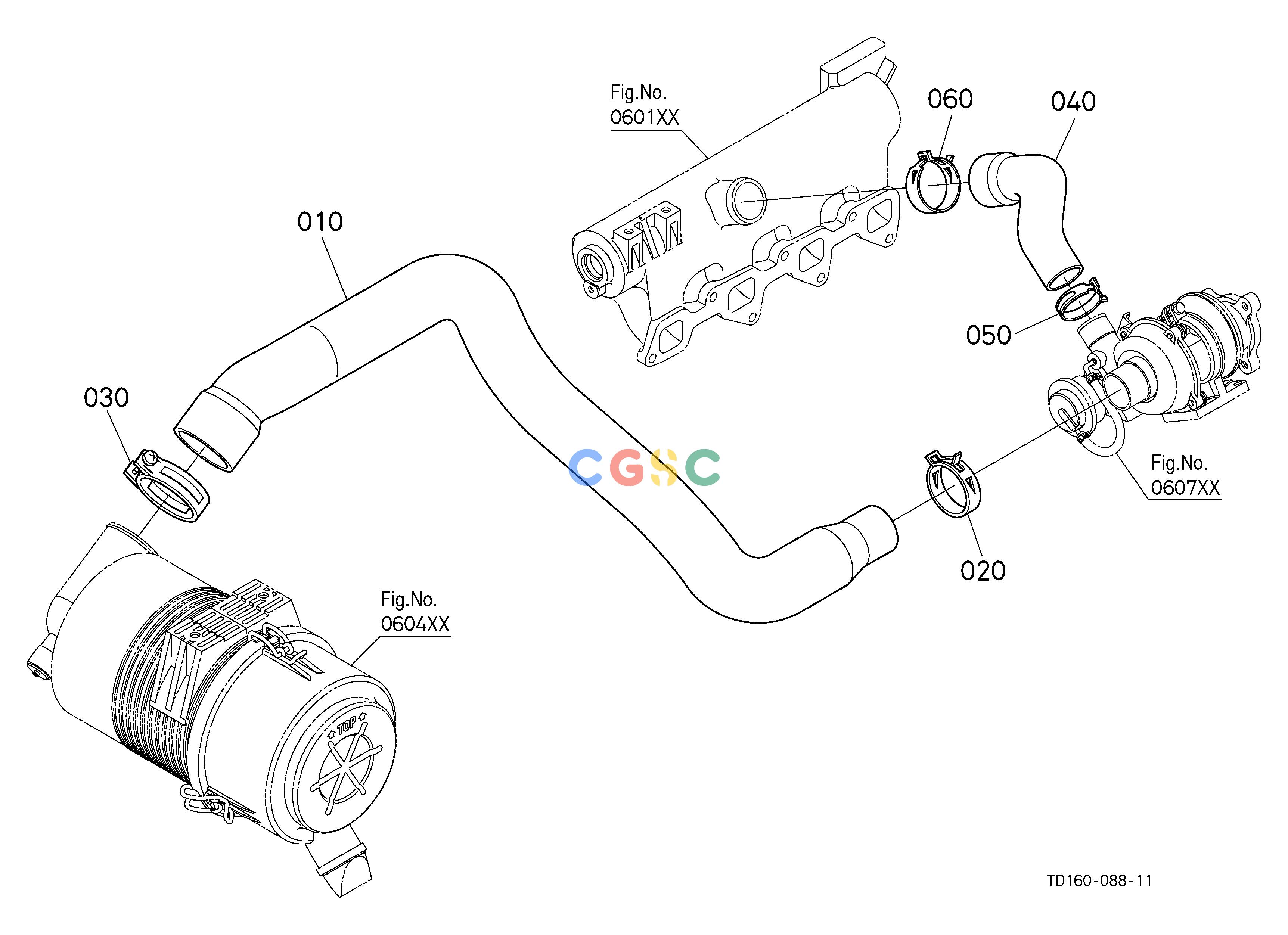

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | TD17016330 | [1] | HOSE | 2.6840(lbs); 1.220 |
| 020. | 1624111720 | [1] | BAND,PIPE | 0.0660(lbs); 0.030 |
| 030. | T117035560 | [1] | CLAMP,HOSE | 0.0880(lbs); 0.040 |
| 040. | 1J86011640 | [1] | HOSE,INLET | 0.5390(lbs); 0.245 |
| 050. | 1G92411720 | [1] | CLAMP,HOSE | 0.0440(lbs); 0.020 |
| 060. | 1624111720 | [1] | BAND,PIPE | 0.0660(lbs); 0.030 |
