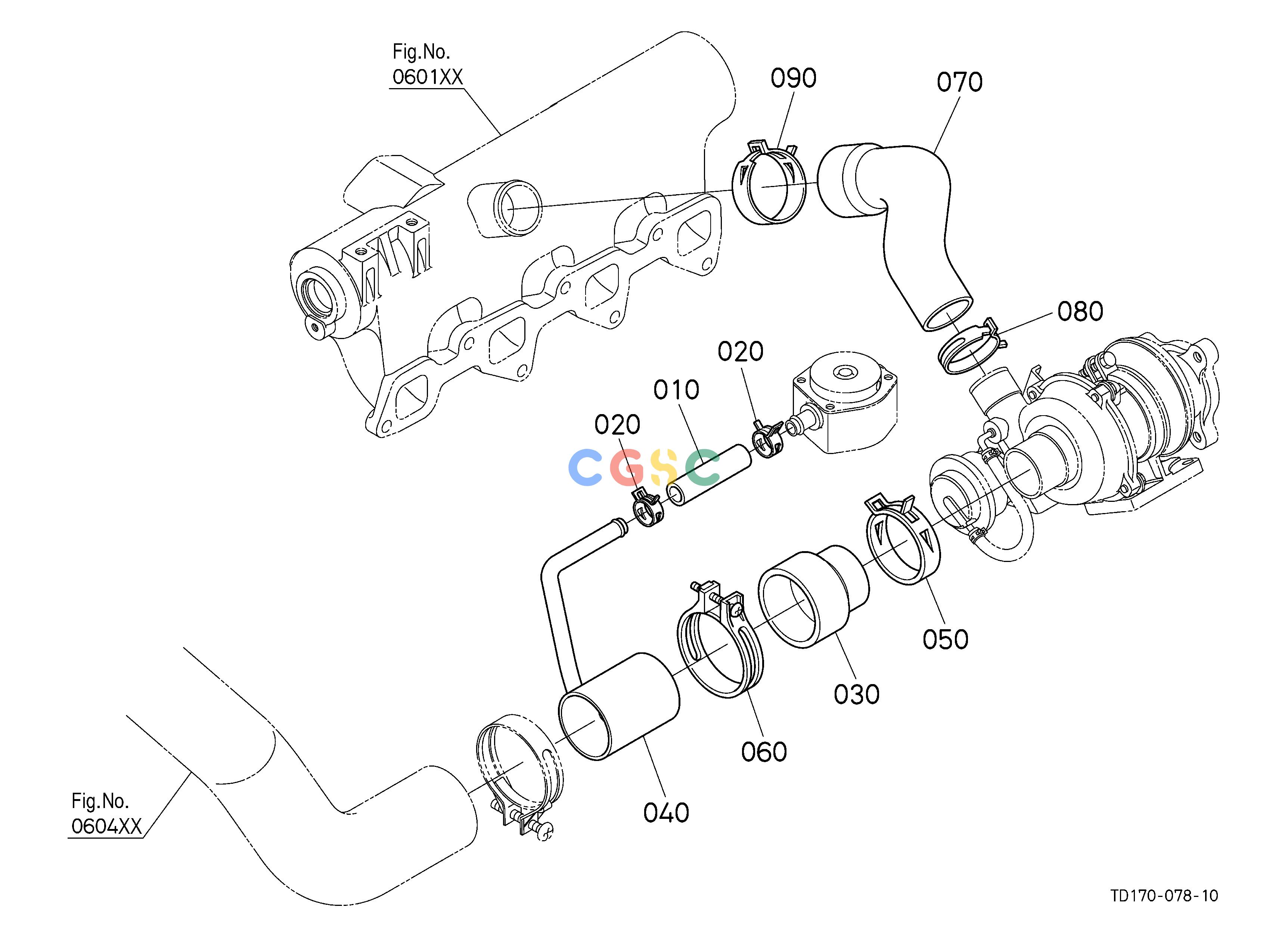

久保田零件查询060502 INLET PIPE [V2403-M-TE3-GST1/HST1(3)/HST2(4)] ## S.No.;>=8A0001 ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
833 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1J86005510
|
[1] |
TUBE,BREATHER TURBO
|
0.0286(lbs); 0.013
|
| 020. |
0931888155
|
[2] |
CLAMP,HOSE
|
0.0110(lbs); 0.005
|
| 030. |
1J86011620
|
[1] |
TUBE,INLET TURBO
|
0.1650(lbs); 0.075
|
| 040. |
1J86011632
|
[1] |
PIPE,INLET BREATHER
|
0.4290(lbs); 0.195
|
| 050. |
1624111720
|
[1] |
BAND,PIPE
|
0.0660(lbs); 0.030
|
| 060. |
1540111720
|
[1] |
BAND,PIPE
|
0.1100(lbs); 0.050
|
| 070. |
1J86011640
|
[1] |
HOSE,INLET
|
0.5390(lbs); 0.245
|
| 080. |
1G92411720
|
[1] |
CLAMP,HOSE
|
0.0440(lbs); 0.020
|
| 090. |
1624111720
|
[1] |
BAND,PIPE
|
0.0660(lbs); 0.030
|
