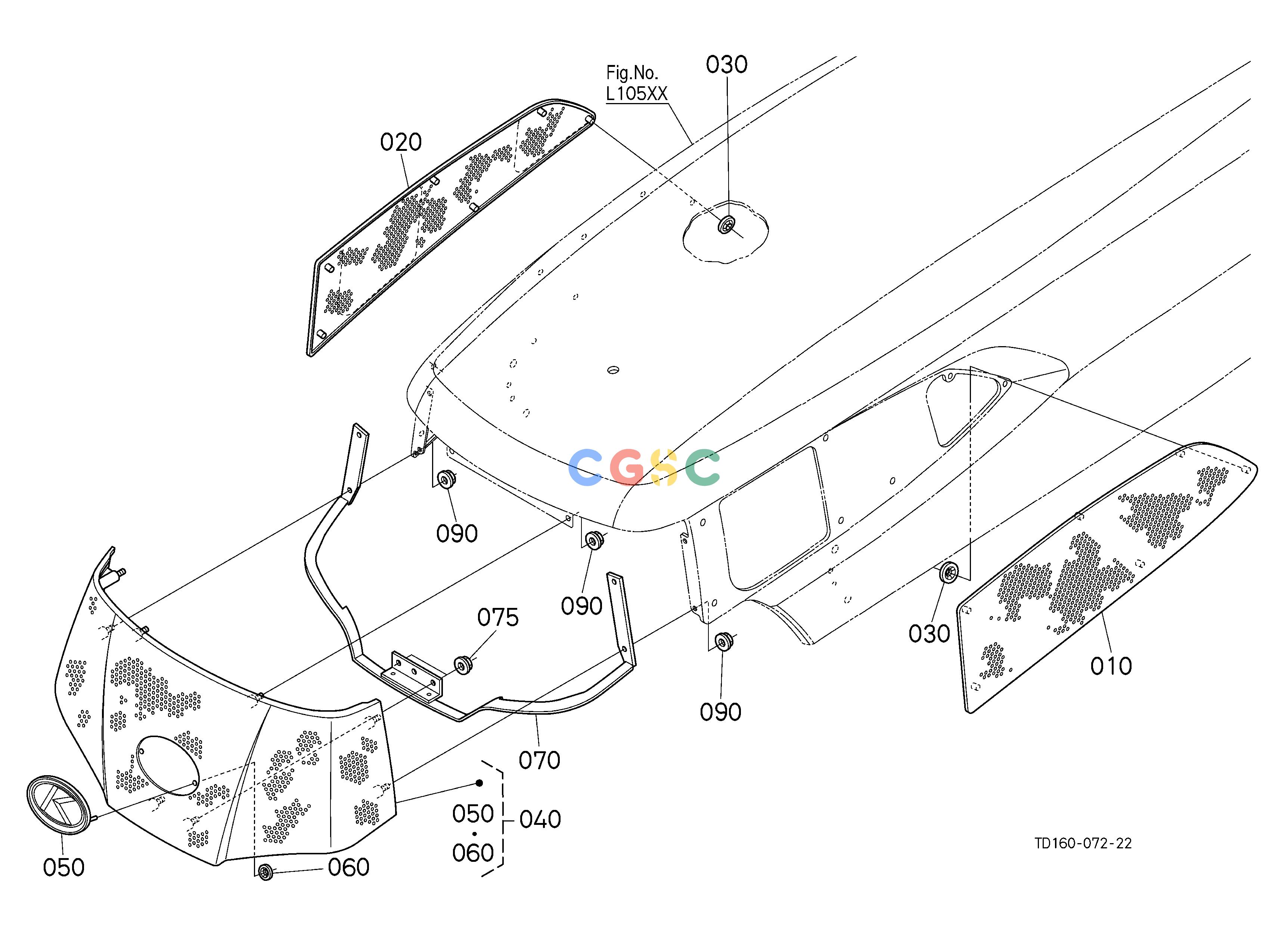

久保田零件查询L10102 FRONT GRILLE [NEW] ## S.No.<=50436 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
453 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD14041822
|
[1] |
GRILLE,LH
|
0.0880(lbs); 0.040
|
| 020. |
TD14041812
|
[1] |
GRILLE,RH
|
0.0880(lbs); 0.040
|
| 030. |
RA11143690
|
[12] |
NUT
|
0.0022(lbs); 0.001
|
| 040. |
TD14041854
|
[1] |
ASSY GRILLE,RADIATO.
|
2.5300(lbs); 1.150
|
| 050. |
RC41157220
|
[1] |
MARK,EMBLEM K
|
0.0330(lbs); 0.015
|
| 060. |
RA11143690
|
[2] |
NUT
|
0.0022(lbs); 0.001
|
| 070. |
TD14040982
|
[1] |
STAY,GRILLE
|
0.6600(lbs); 0.300
|
| 075. |
0276150060
|
[2] |
NUT,FLANGE
|
0.0066(lbs); 0.003
|
| 090. |
0275150060
|
[6] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
