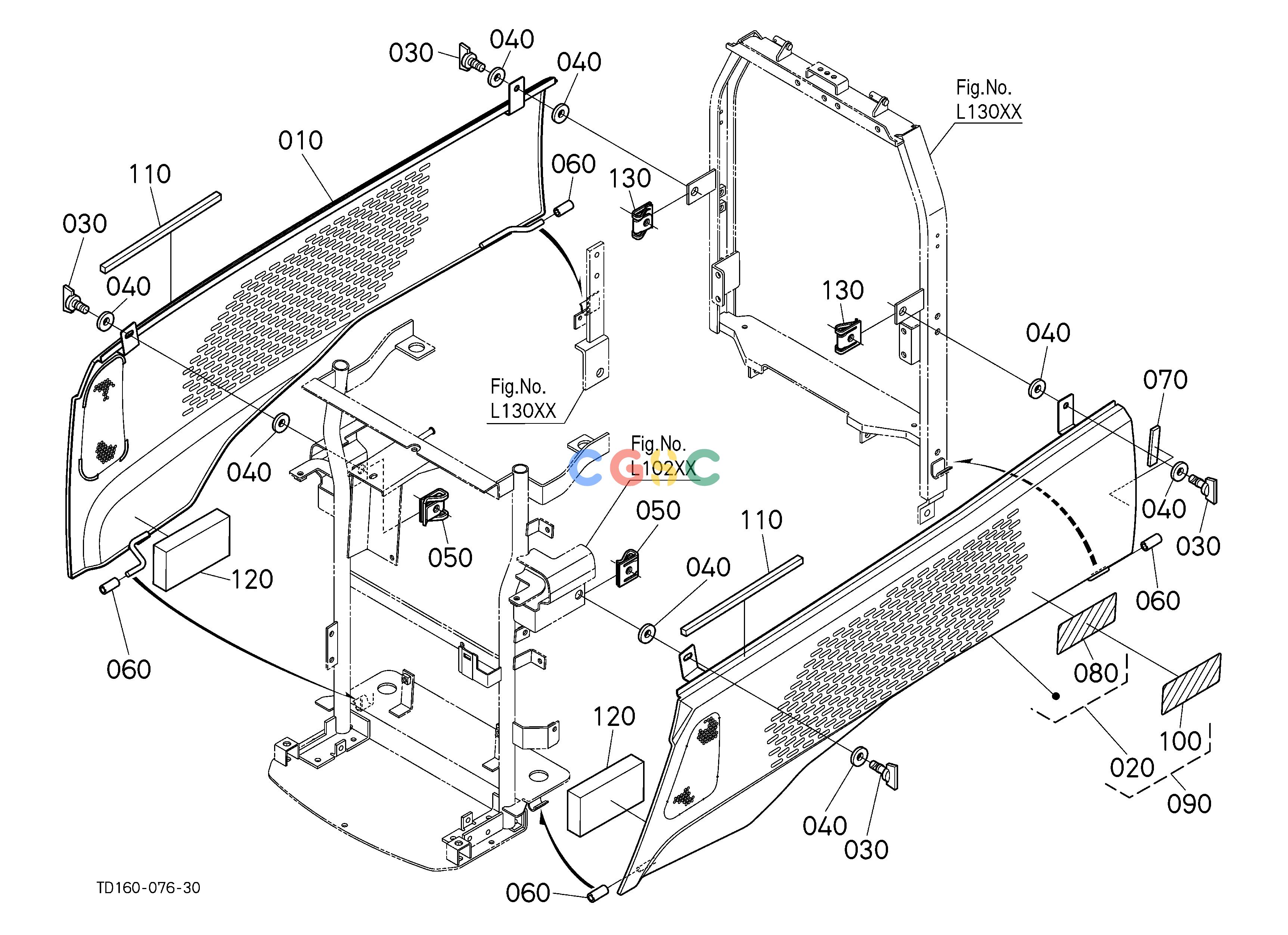

久保田零件查询L11501 SIDE COVER LOWER [OLD] ## S.No.;A:<=60004,B:<=60025,C:<=60055 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
676 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD17041362
|
[1] |
COVER,RH
|
6.8200(lbs); 3.100
|
| 020. |
TD17099560
|
[1] |
KIT COVER LH(A)
|
6.8200(lbs); 3.100
|
| 030. |
TD06041380
|
[4] |
HOLDER
|
0.0396(lbs); 0.018
|
| 040. |
3277141460
|
[8] |
PLATE,RETAINER
|
0.0022(lbs); 0.001
|
| 050. |
TD06041390
|
[2] |
HOLDER,RECEPTACLE
|
0.0242(lbs); 0.011
|
| 060. |
T106041390
|
[4] |
CUSHION
|
0.0044(lbs); 0.002
|
| 070. |
TD06030350
|
[1] |
CUSHION,HARNESS
|
0.0374(lbs); 0.017
|
| 080. |
TA04049650
|
[1] |
LABEL,START CAUTION
|
0.0088(lbs); 0.004
|
| 090. |
TD17199560
|
[1] |
KIT COVER LH(B)
|
6.8200(lbs); 3.100
|
| 100. |
TA04149650
|
[1] |
LABEL,START CAUTION
|
0.0088(lbs); 0.004
|
| 110. |
TD06040150
|
[2] |
SPONGE
|
0.0110(lbs); 0.005
|
| 120. |
TD17040132
|
[2] |
SPONGE
|
0.0264(lbs); 0.012
|
| 130. |
TD06041390
|
[2] |
HOLDER,RECEPTACLE
|
0.0242(lbs); 0.011
|
