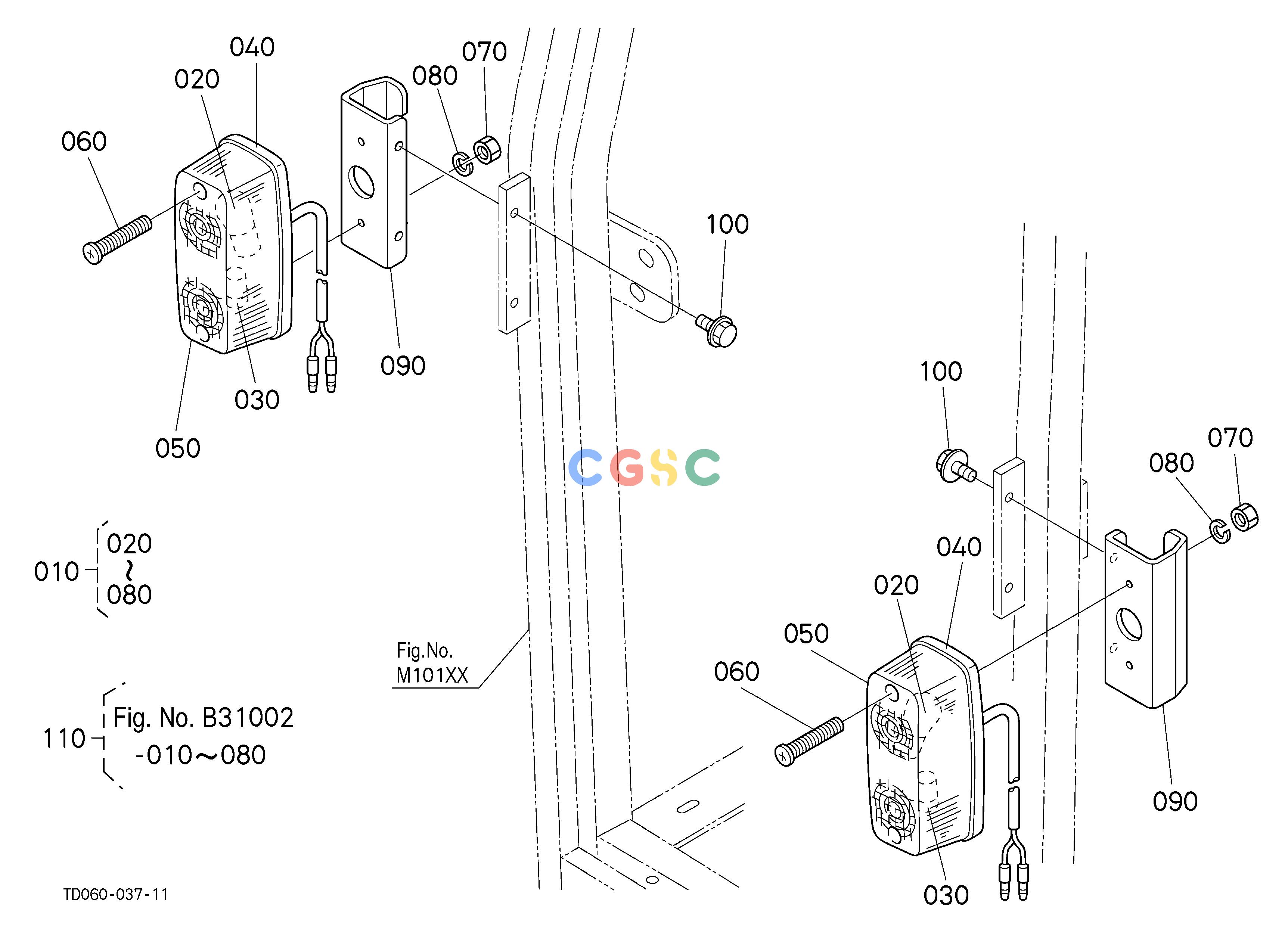

久保田零件查询B31001 BLINKER LAMP [OLD TYPE] [CAB TYPE] ## S.No.<=33211 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
785 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3815033800
|
[2] |
LIGHT TURN SIGNAL
|
0.5830(lbs); 0.265
|
| 020. |
3815033840
|
[2] |
BULB WINKER
|
0.0440(lbs); 0.020
|
| 030. |
3815033850
|
[2] |
BULB PARKING
|
0.0440(lbs); 0.020
|
| 040. |
3815033810
|
[2] |
GASKET
|
0.0440(lbs); 0.020
|
| 050. |
3815033820
|
[2] |
LENS
|
0.1760(lbs); 0.080
|
| 060. |
0305460435
|
[4] |
SCREW PAN-HEAD
|
0.0044(lbs); 0.002
|
| 070. |
0201450060
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 080. |
0451260060
|
[4] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 090. |
TD06078510
|
[2] |
BRACKET WINKER
|
1.2320(lbs); 0.560
|
| 100. |
3081018870
|
[4] |
BOLT FLANGE
|
0.0264(lbs); 0.012
|
| 110. |
TD06030040
|
[1] |
ASSY LIGHT
|
1.1880(lbs); 0.540
|
