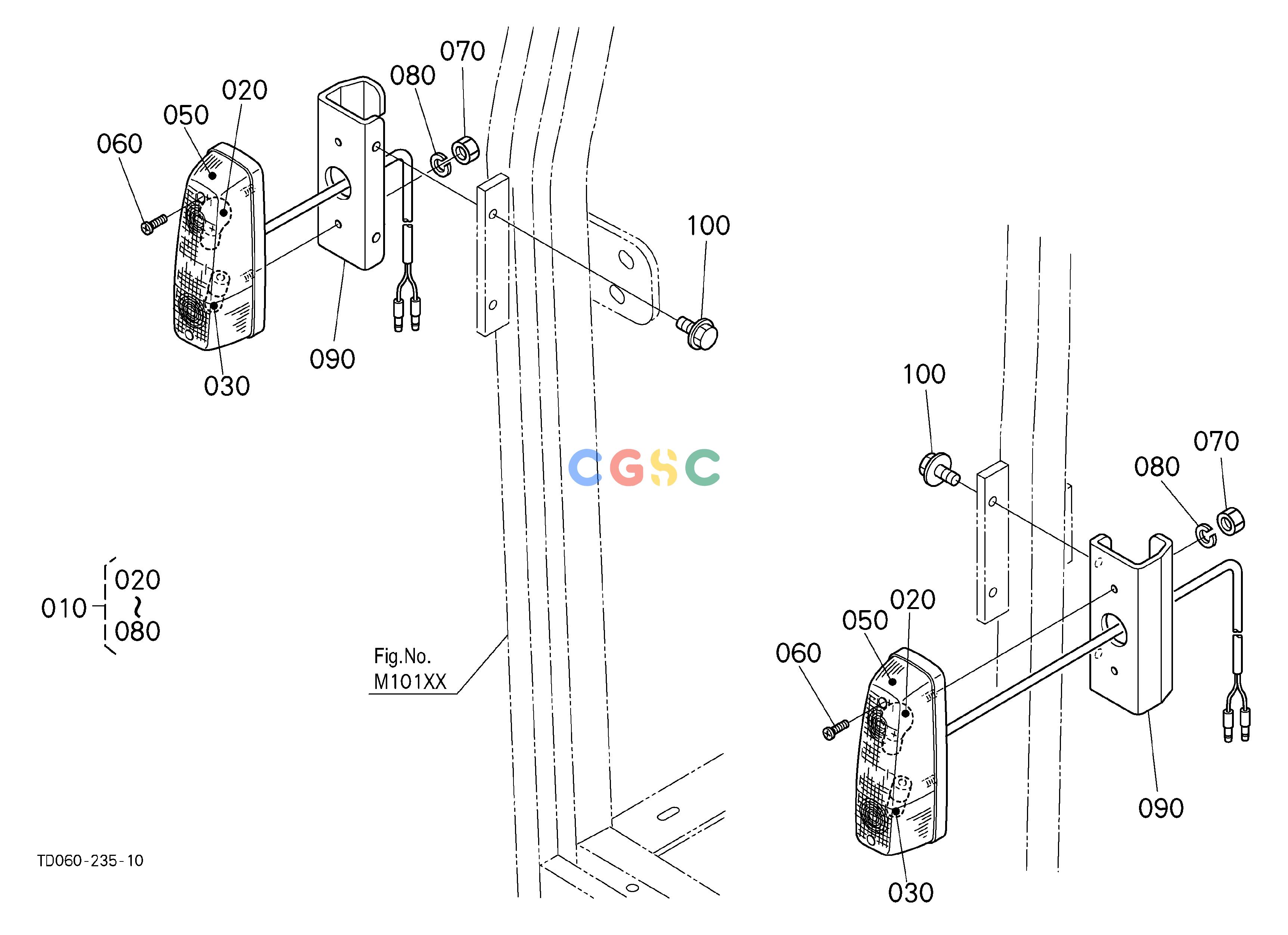

久保田零件查询B31002 BLINKER LAMP [NEW TYPE] [CAB TYPE] ## S.No.>=33212 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
742 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD06030030
|
[2] |
LAMP FRONT COMBI.
|
0.5720(lbs); 0.260
|
| 020. |
T137099120
|
[2] |
BULB
|
0.0264(lbs); 0.012
|
| 030. |
TD06099180
|
[2] |
BULB
|
0.0110(lbs); 0.005
|
| 050. |
T127099150
|
[2] |
LENS
|
0.2860(lbs); 0.130
|
| 060. |
TD06099170
|
[4] |
SCREW TAPPING
|
0.0088(lbs); 0.004
|
| 070. |
0201450060
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 080. |
0451260060
|
[4] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 090. |
TD06078510
|
[2] |
BRACKET WINKER
|
1.2320(lbs); 0.560
|
| 100. |
3081018870
|
[4] |
BOLT FLANGE
|
0.0264(lbs); 0.012
|
