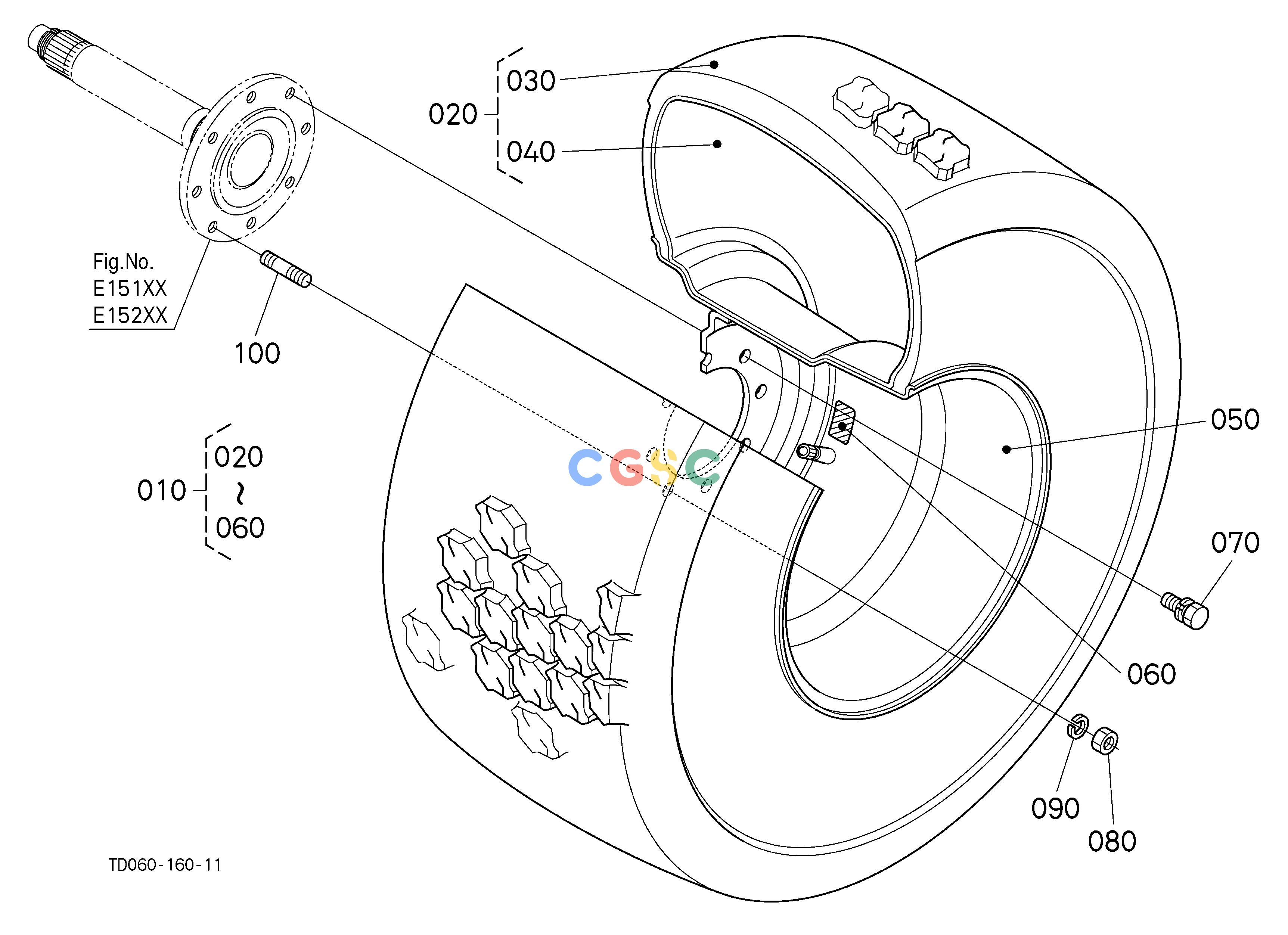

久保田零件查询P11012 REAR WHEEL(41/18LL 16.1) FRONT/REAR TIREEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
733 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD06021500
|
[2] |
REAR WHEEL
|
0.0000(lbs); 0.000
|
| 020. |
TA14021510
|
[2] |
ASSY TIRE
|
0.0000(lbs); 0.000
|
| 030. |
TA14021520
|
[2] |
TIRE
|
0.0000(lbs); 0.000
|
| 040. |
TA14021530
|
[2] |
TUBE
|
0.0000(lbs); 0.000
|
| 050. |
TD06021540
|
[2] |
WHEEL
|
57.2000(lbs); 26.000
|
| 060. |
9999999999
|
[2] |
LABEL
|
0.0000(lbs); 0.000
|
| 070. |
0107351640
|
[12] |
BOLT
|
0.2024(lbs); 0.092
|
| 080. |
0207650160
|
[4] |
NUT
|
0.0660(lbs); 0.030
|
| 090. |
0451260160
|
[4] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 100. |
3253027410
|
[4] |
STUD
|
0.1760(lbs); 0.080
|
