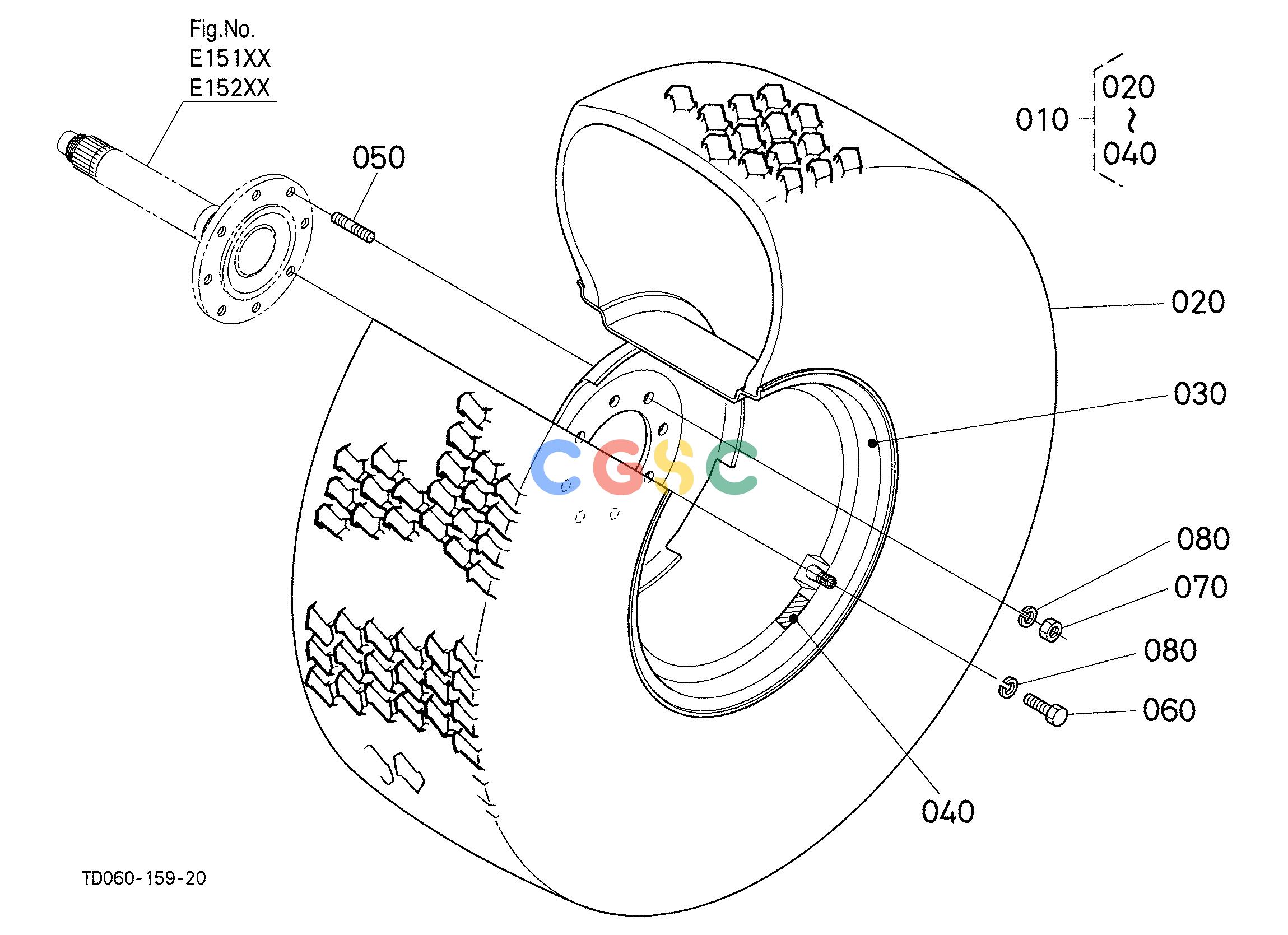

久保田零件查询P11013 REAR WHEEL(44 18-20) FRONT/REAR TIREEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
597 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD06051310
|
[2] |
ASSY TIRE
|
0.0000(lbs); 0.000
|
| 020. |
TC05051330
|
[2] |
TIRE
|
0.0000(lbs); 0.000
|
| 030. |
TD06051340
|
[2] |
WHEEL
|
0.0000(lbs); 0.000
|
| 040. |
9999999999
|
[2] |
LABEL TIRE
|
0.0000(lbs); 0.000
|
| 050. |
3253027410
|
[4] |
STUD
|
0.1760(lbs); 0.080
|
| 060. |
0107351640
|
[12] |
BOLT
|
0.2024(lbs); 0.092
|
| 070. |
0207650160
|
[4] |
NUT
|
0.0660(lbs); 0.030
|
| 080. |
0451260160
|
[16] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
