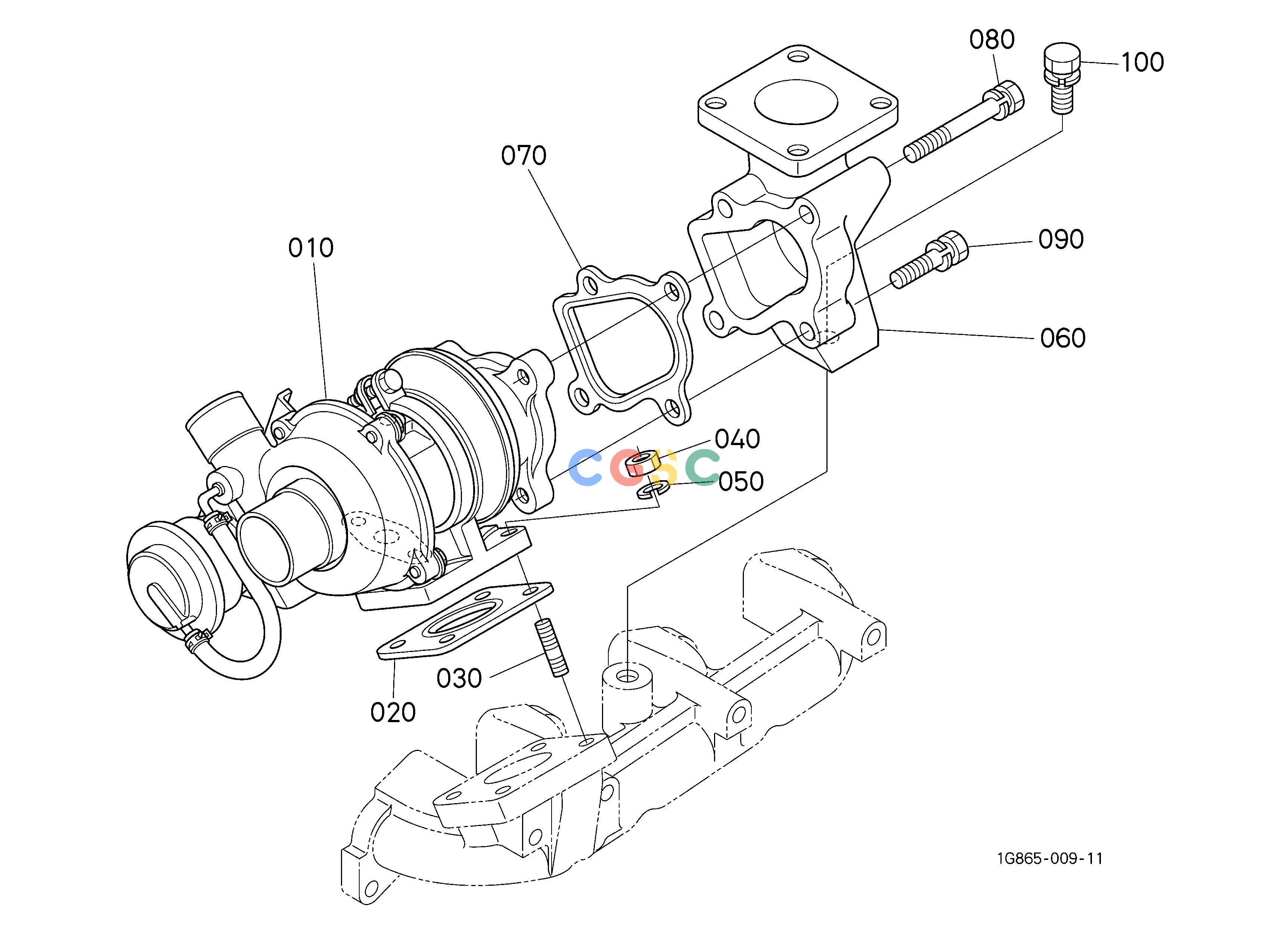

久保田零件查询060700 TURBO CHARGER ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
242 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1J85417010
|
[1] |
TURBOCHARGER,ASSY
|
7.7440(lbs); 3.520
|
| 010. |
1J85417012
|
[1] |
ASSY TURBO CHARGER
|
7.7440(lbs); 3.520
|
| 020. |
1648317100
|
[1] |
GASKET
|
0.0374(lbs); 0.017
|
| 030. |
0151350820
|
[4] |
BOLT,STUD
|
0.0440(lbs); 0.020
|
| 040. |
0215650080
|
[4] |
HEX.NUT
|
0.0088(lbs); 0.004
|
| 050. |
0451250080
|
[4] |
WASHER,SPRING LOCK
|
0.0044(lbs); 0.002
|
| 060. |
1648312320
|
[1] |
FLANGE,MUFFLER
|
3.5640(lbs); 1.620
|
| 070. |
1648317110
|
[1] |
GASKET
|
0.0440(lbs); 0.020
|
| 080. |
0112350865
|
[2] |
BOLT,SEMS
|
0.0572(lbs); 0.026
|
| 090. |
0112350835
|
[2] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 100. |
1G92391010
|
[1] |
BOLT,SEMS
|
0.0506(lbs); 0.023
|
