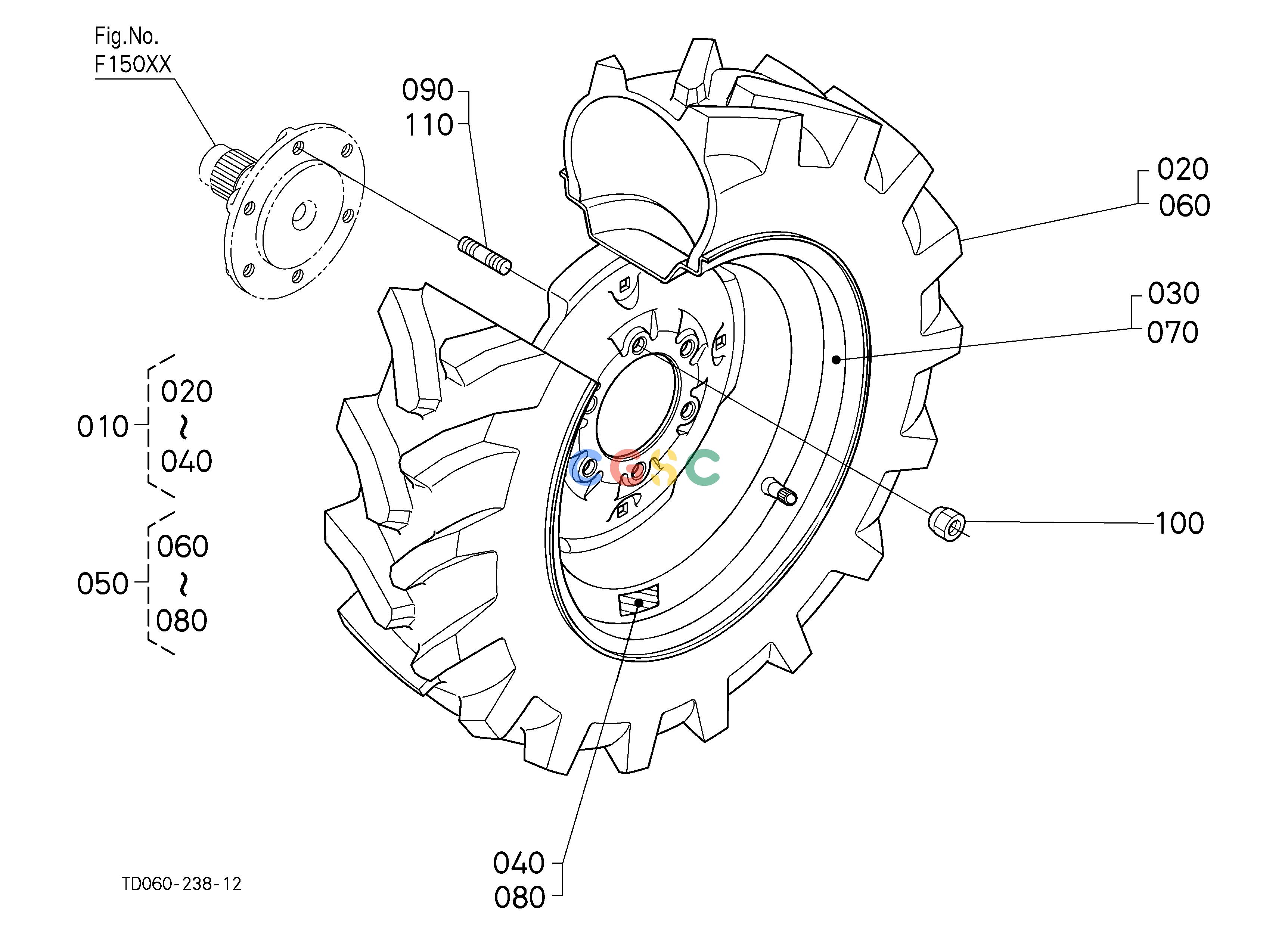

久保田零件查询P10102 FRONT WHEEL (9.5-16) FRONT/REAR TIREEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
830 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC05050010
|
[1] |
TIRE,ASSY AMXR8860RH
|
0.0000(lbs); 0.000
|
| 020. |
TD06044930
|
[1] |
TIRE(9.5-16)
|
33.0000(lbs); 15.000
|
| 030. |
TC05050040
|
[1] |
WHEEL(16X8LB)
|
25.9600(lbs); 11.800
|
| 040. |
99999-99999
|
[1] |
LABEL(9.5-16,RH)
|
0.0000(lbs); 0.000
|
| 050. |
TC05050020
|
[1] |
TIRE,ASSY AMXR8860LH
|
0.0000(lbs); 0.000
|
| 060. |
TD06044930
|
[1] |
TIRE(9.5-16)
|
33.0000(lbs); 15.000
|
| 070. |
TC05050040
|
[1] |
WHEEL(16X8LB)
|
25.9600(lbs); 11.800
|
| 080. |
99999-99999
|
[1] |
LABEL(9.5-16,LH)
|
0.0000(lbs); 0.000
|
| 090. |
3258044960
|
[6] |
STUD
|
0.1100(lbs); 0.050
|
| 100. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
| 110. |
3258044960
|
[6] |
STUD
|
0.1100(lbs); 0.050
|
