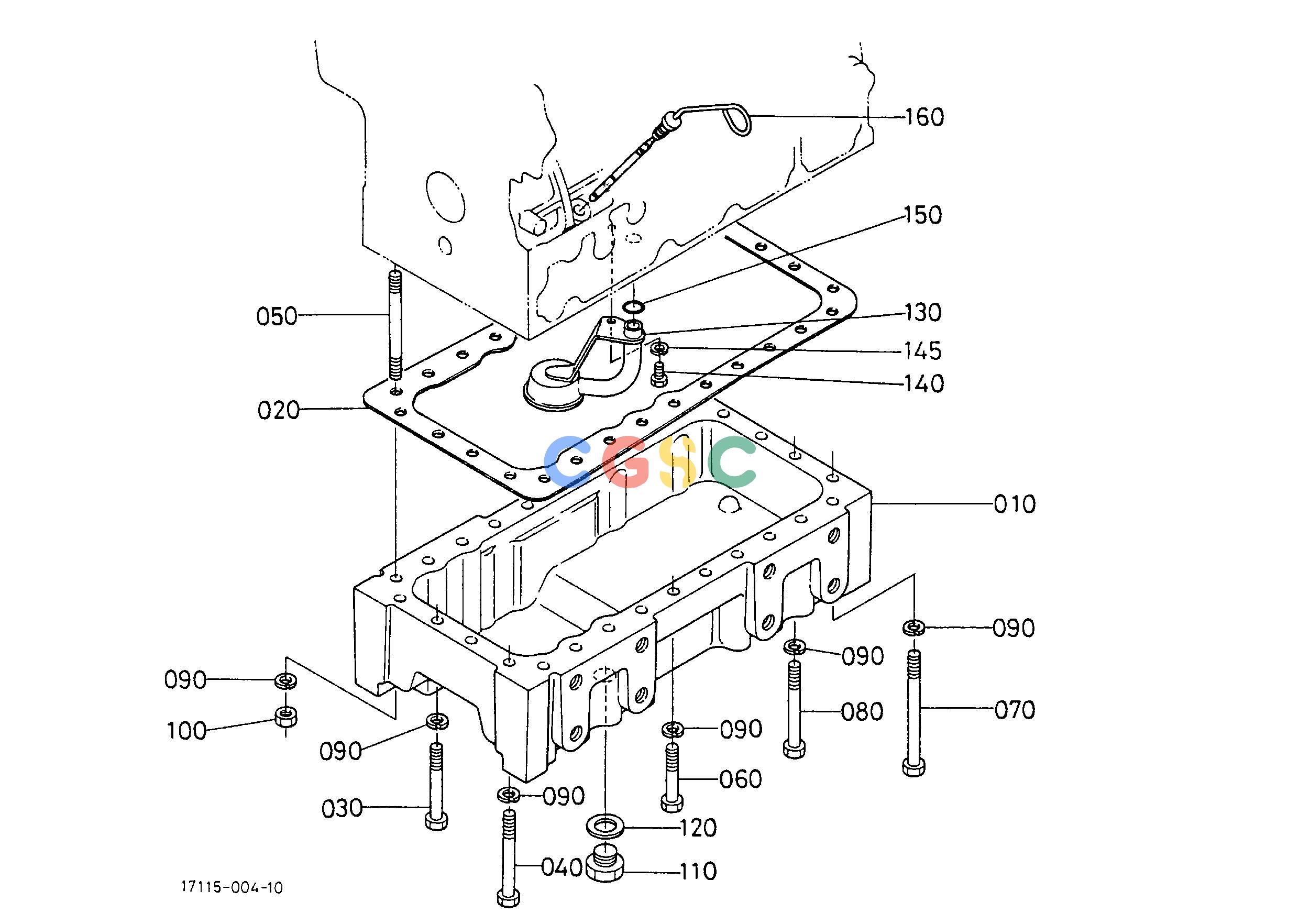

久保田零件查询T00203 OIL PAN ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
615 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1712101610
|
[1] |
OIL PAN
|
94.6000(lbs); 43.000
|
| 020. |
1712101620
|
[1] |
GASKET OIL PAN
|
0.0616(lbs); 0.028
|
| 030. |
0117351090
|
[2] |
BOLT
|
0.1210(lbs); 0.055
|
| 040. |
0117351005
|
[2] |
BOLT
|
0.1584(lbs); 0.072
|
| 050. |
1738191600
|
[6] |
STUD
|
0.1914(lbs); 0.087
|
| 060. |
0117351065
|
[4] |
BOLT
|
0.0880(lbs); 0.040
|
| 070. |
1738191010
|
[12] |
BOLT
|
0.1870(lbs); 0.085
|
| 080. |
0117351002
|
[2] |
BOLT
|
0.1430(lbs); 0.065
|
| 090. |
0451260100
|
[28] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 100. |
0207650100
|
[6] |
NUT
|
0.0132(lbs); 0.006
|
| 100. |
0217650100
|
[6] |
NUT
|
0.0110(lbs); 0.005
|
| 110. |
1545133750
|
[1] |
PLUG DRAIN
|
0.0000(lbs); 0.000
|
| 110. |
1654133750
|
[1] |
PLUG DRAIN
|
0.1628(lbs); 0.074
|
| 120. |
1545196670
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
| 130. |
1712132110
|
[1] |
FILTER OIL
|
0.5500(lbs); 0.250
|
| 140. |
0112350814
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 140. |
0115350814
|
[1] |
BOLT
|
0.0198(lbs); 0.009
|
| 145. |
0451260080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 150. |
0481100180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 160. |
1712136410
|
[1] |
GAUGE OIL
|
0.0880(lbs); 0.040
|
