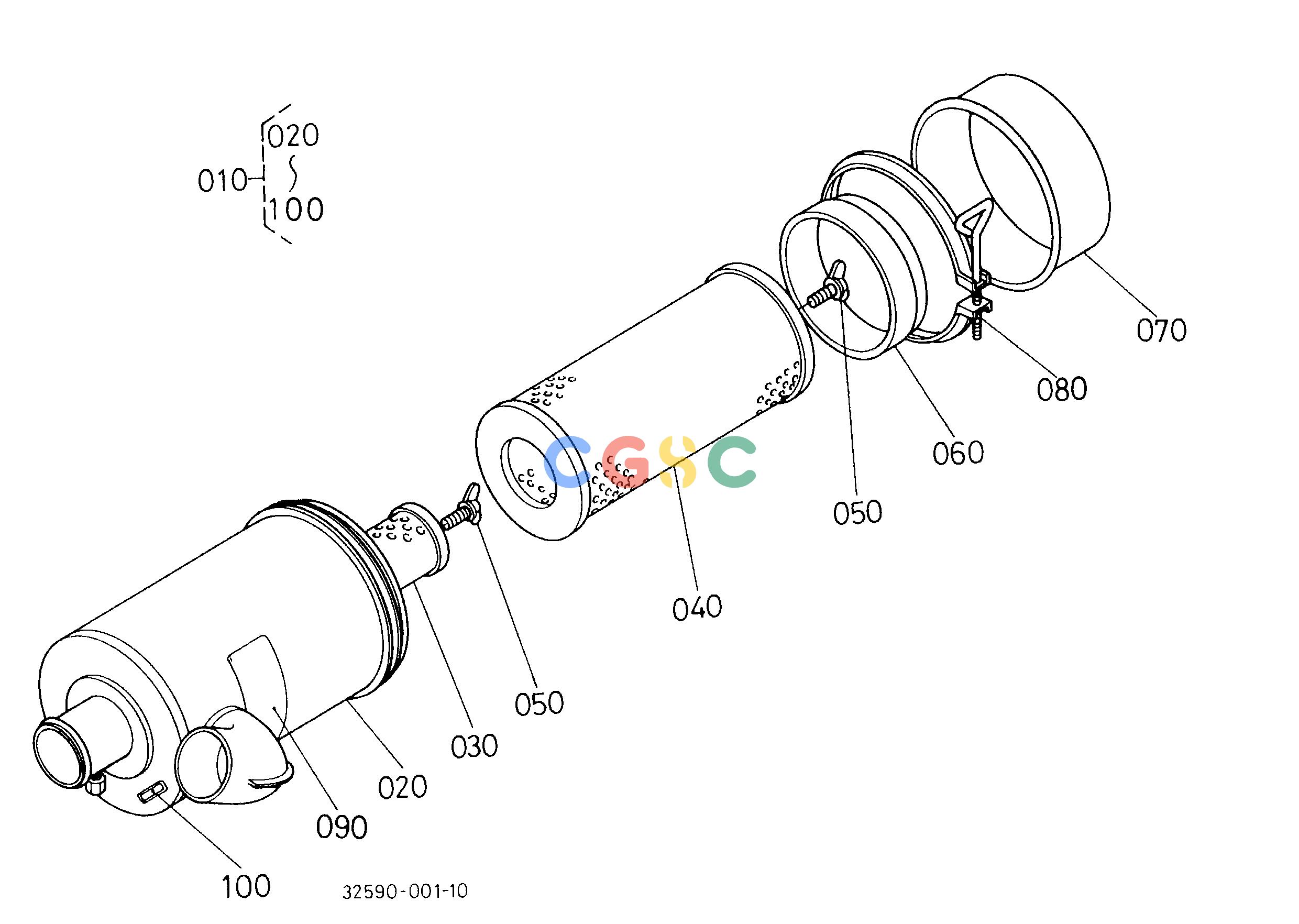

久保田零件查询T01201 AIR CLEANER (DOUBLE) [OLD TYPE] [COMPONENT PARTS] ## S.No.:L5450DT;<=60314 ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
296 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1738111010
|
[1] |
ASSY CLEANER AIR
|
10.4500(lbs); 4.750
|
| 020. |
1738111150
|
[1] |
ASSY BODY
|
5.3900(lbs); 2.450
|
| 030. |
1738111180
|
[1] |
ASSY ELEMENT INNER
|
0.7150(lbs); 0.325
|
| 040. |
1560611080
|
[1] |
ASSY ELEMENT CLEANER
|
2.5300(lbs); 1.150
|
| 050. |
1540192620
|
[2] |
ASSY NUT WING
|
0.0220(lbs); 0.010
|
| 060. |
1560611410
|
[1] |
COVER BAFFLE
|
0.2530(lbs); 0.115
|
| 070. |
1547111160
|
[1] |
COVER AIR CLEANER
|
0.9240(lbs); 0.420
|
| 080. |
1560611070
|
[1] |
ASSY BAND AIRCLEANER
|
0.2750(lbs); 0.125
|
| 090. |
1540187450
|
[1] |
LABEL AIR CLEANER
|
0.0044(lbs); 0.002
|
| 100. |
1561287330
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
