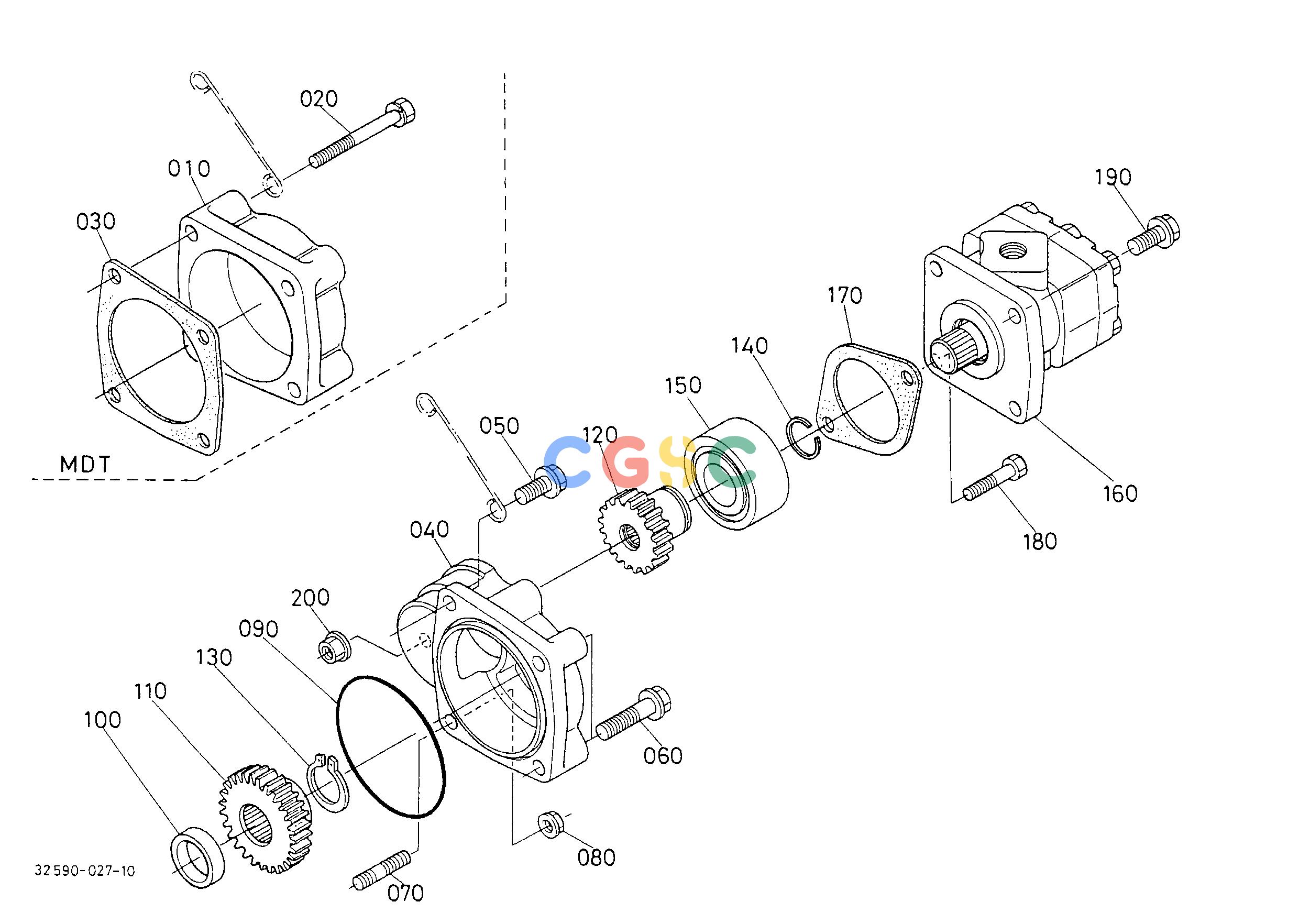

Pos.	Part No	Qty	Parts name	Comments
010.	1718316210	[1]	COVER FUEL CAMSHAFT	MDT 0.6820(lbs); 0.310
020.	0112350865	[4]	BOLT	MDT 0.0572(lbs); 0.026
030.	3539437860	[1]	GASKET	MDT 0.0110(lbs); 0.005
040.	3259010610	[1]	HOLDER PUMP	HDT HDT-W 0.8250(lbs); 0.375
050.	0175450820	[1]	BOLT FLANGE	HDT HDT-W 0.0330(lbs); 0.015
060.	0175450840	[2]	BOLT FLANGE	HDT HDT-W 0.0440(lbs); 0.020
070.	3824036330	[1]	STUD	HDT HDT-W 0.0176(lbs); 0.008
080.	0275150080	[1]	NUT FLANGE	HDT HDT-W 0.0132(lbs); 0.006
090.	0481110850	[1]	O RING	HDT HDT-W 0.0044(lbs); 0.002
100.	3253010650	[1]	COLLAR	HDT/HDT-W 0.0440(lbs); 0.020
110.	3259010620	[1]	GEAR	29T HDT HDT-W 0.6600(lbs); 0.300
120.	3259010630	[1]	GEAR	21T HDT HDT-W 0.4400(lbs); 0.200
130.	0461200250	[1]	CIRCLIP EXTERNAL	HDT HDT-W 0.0044(lbs); 0.002
140.	6706114370	[1]	CIR-CLIP	HDT HDT-W 0.0044(lbs); 0.002
150.	0824105205	[1]	BEARING BALL	HDT HDT-W 0.3894(lbs); 0.177
160.	3258376202	[1]	ASSY GEAR PUMP	; <=60347 2.6400(lbs); 1.200
160.	3259076200	[1]	ASSY PUMP HYDRAULIC	; =>60348 2.7170(lbs); 1.235
170.	3259010670	[1]	GASKET	HDT HDT-W 0.0110(lbs); 0.005
180.	0117350835	[1]	BOLT	HDT HDT-W 0.0440(lbs); 0.020
190.	0175450820	[1]	BOLT FLANGE	HDT HDT-W 0.0330(lbs); 0.015
200.	0275150080	[1]	NUT FLANGE	HDT HDT-W 0.0132(lbs); 0.006
