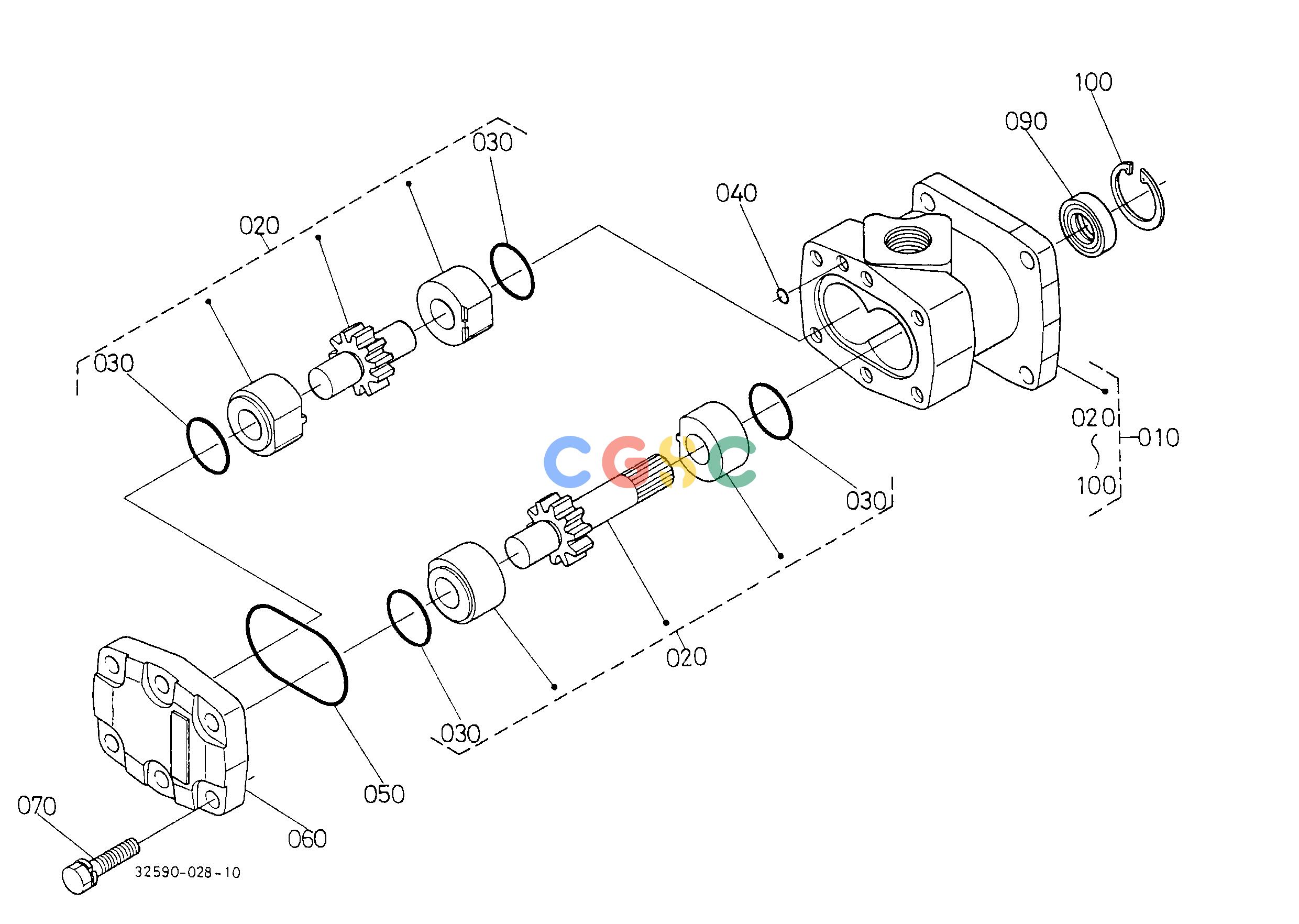

久保田零件查询T10800 HYDRAULIC PUMP (HDT/HDT-W) [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
700 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3258376202
|
[1] |
ASSY GEAR PUMP
|
2.6400(lbs); 1.200
|
| 010. |
3259076200
|
[1] |
ASSY PUMP HYDRAULIC
|
2.7170(lbs); 1.235
|
| 020. |
3258376220
|
[1] |
COMP.GEAR-METAL
|
0.7700(lbs); 0.350
|
| 020. |
3259076220
|
[1] |
COMP.GEAR HYD.PUMP
|
0.7700(lbs); 0.350
|
| 030. |
0481000220
|
[4] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0481000050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0481050500
|
[1] |
O RING
|
0.0110(lbs); 0.005
|
| 060. |
6721176120
|
[1] |
COVER
|
0.3960(lbs); 0.180
|
| 070. |
6721176240
|
[6] |
BOLT
|
0.0308(lbs); 0.014
|
| 070. |
0112350825
|
[6] |
BOLT
|
0.0286(lbs); 0.013
|
| 090. |
3138176190
|
[1] |
SEAL OIL
|
0.0154(lbs); 0.007
|
| 100. |
0461100280
|
[1] |
CIR CLIP INTERNAL
|
0.0044(lbs); 0.002
|
