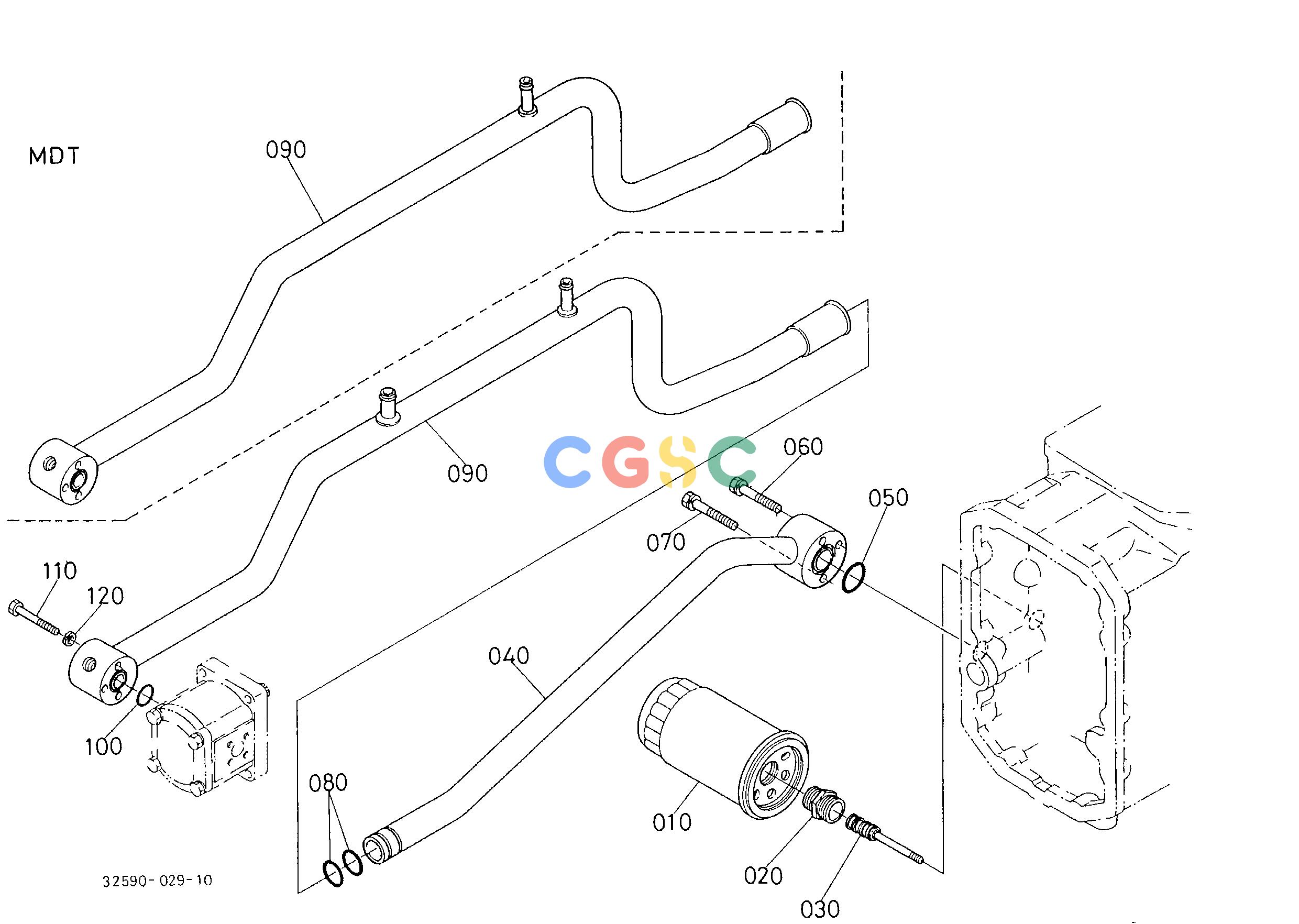

久保田零件查询T10902 HYDRAULIC PIPE (SUCTION) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
393 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259038380
|
[1] |
FILTER OIL
|
1.4740(lbs); 0.670
|
| 020. |
3259038330
|
[1] |
JOINT SCREW
|
0.1100(lbs); 0.050
|
| 030. |
3374082640
|
[1] |
FILTER MAGNET
|
0.2310(lbs); 0.105
|
| 040. |
3259038112
|
[1] |
PIPE SUCTION
|
3.5200(lbs); 1.600
|
| 050. |
0481110320
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0112350855
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 070. |
0112350860
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 080. |
0481100260
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
3259038133
|
[1] |
PIPE SUCTION
|
4.6640(lbs); 2.120
|
| 090. |
3259038123
|
[1] |
PIPE SUCTION
|
4.6200(lbs); 2.100
|
| 100. |
0481110240
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 110. |
0105350660
|
[3] |
BOLT
|
0.0308(lbs); 0.014
|
| 120. |
0451260060
|
[3] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
